Festiva L4-81 1.3L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse Panel
Fuse Panel

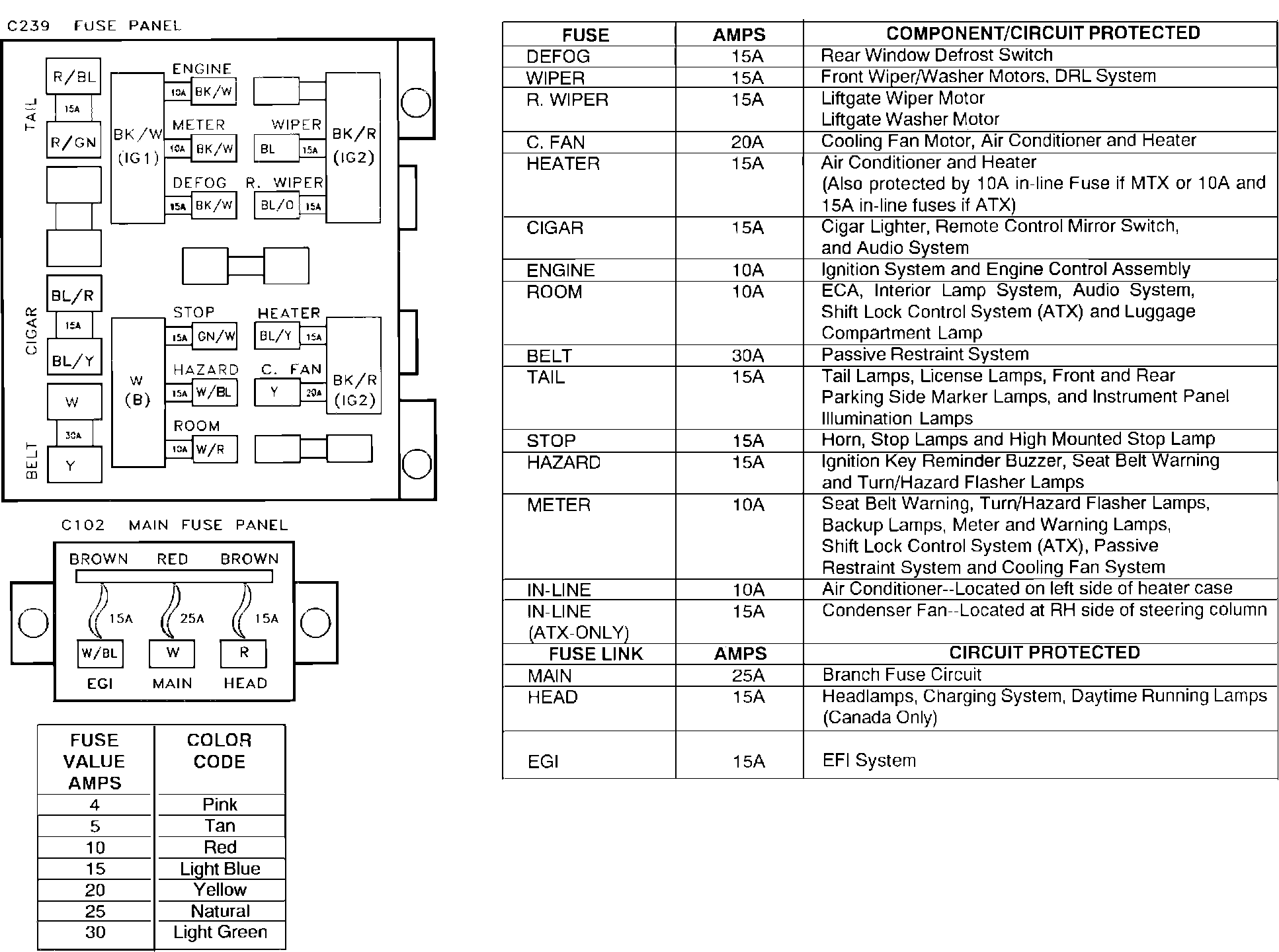

Fuse Panel Details:
