KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB20 - KB22
KB20 - KB22

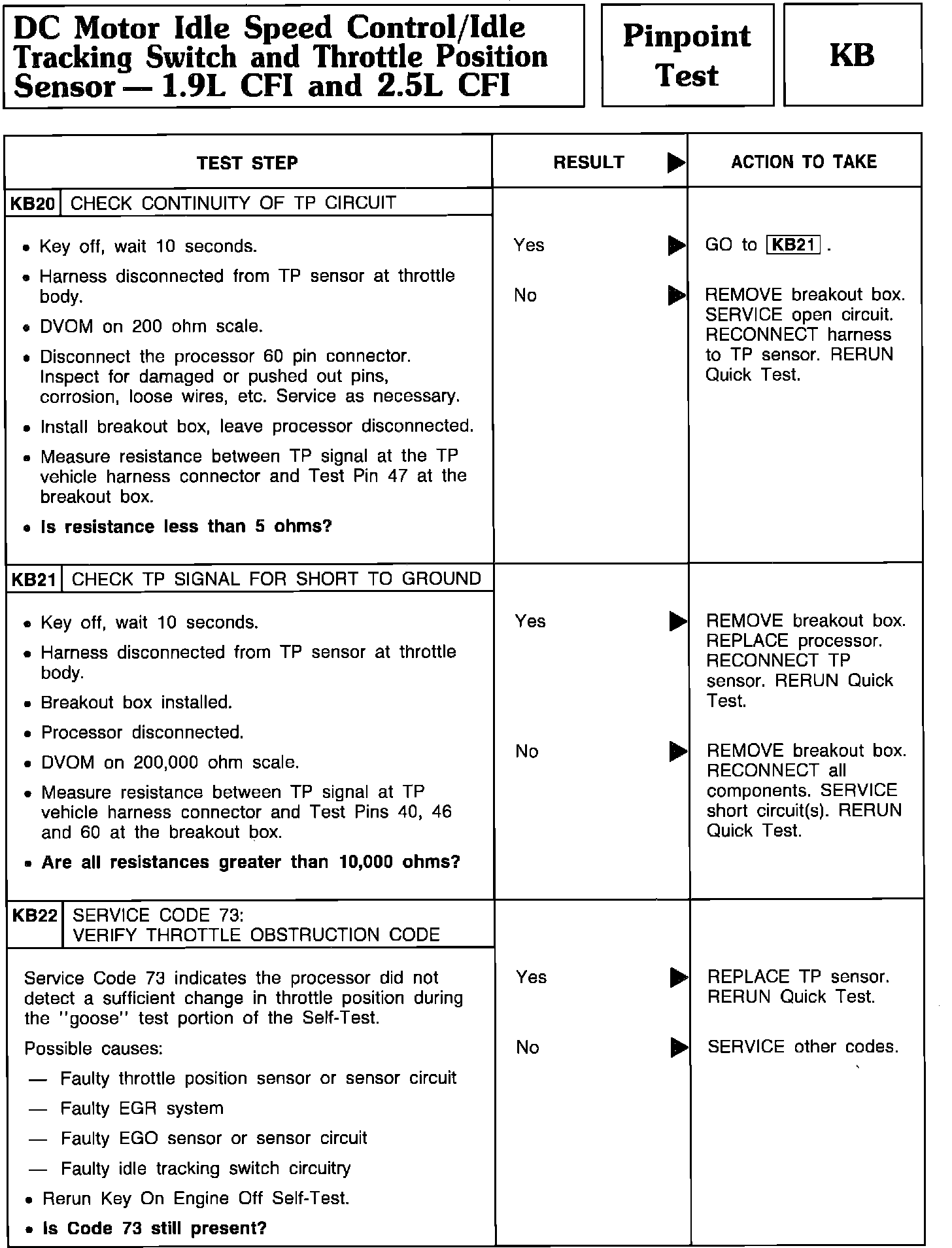

Pinpoint Test KB20 Thru KB22 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
