Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection >> BME18 - Test Resistance At Control Unite, W/ ATC

BME18 - Test Resistance At Control Unite, W/ ATC

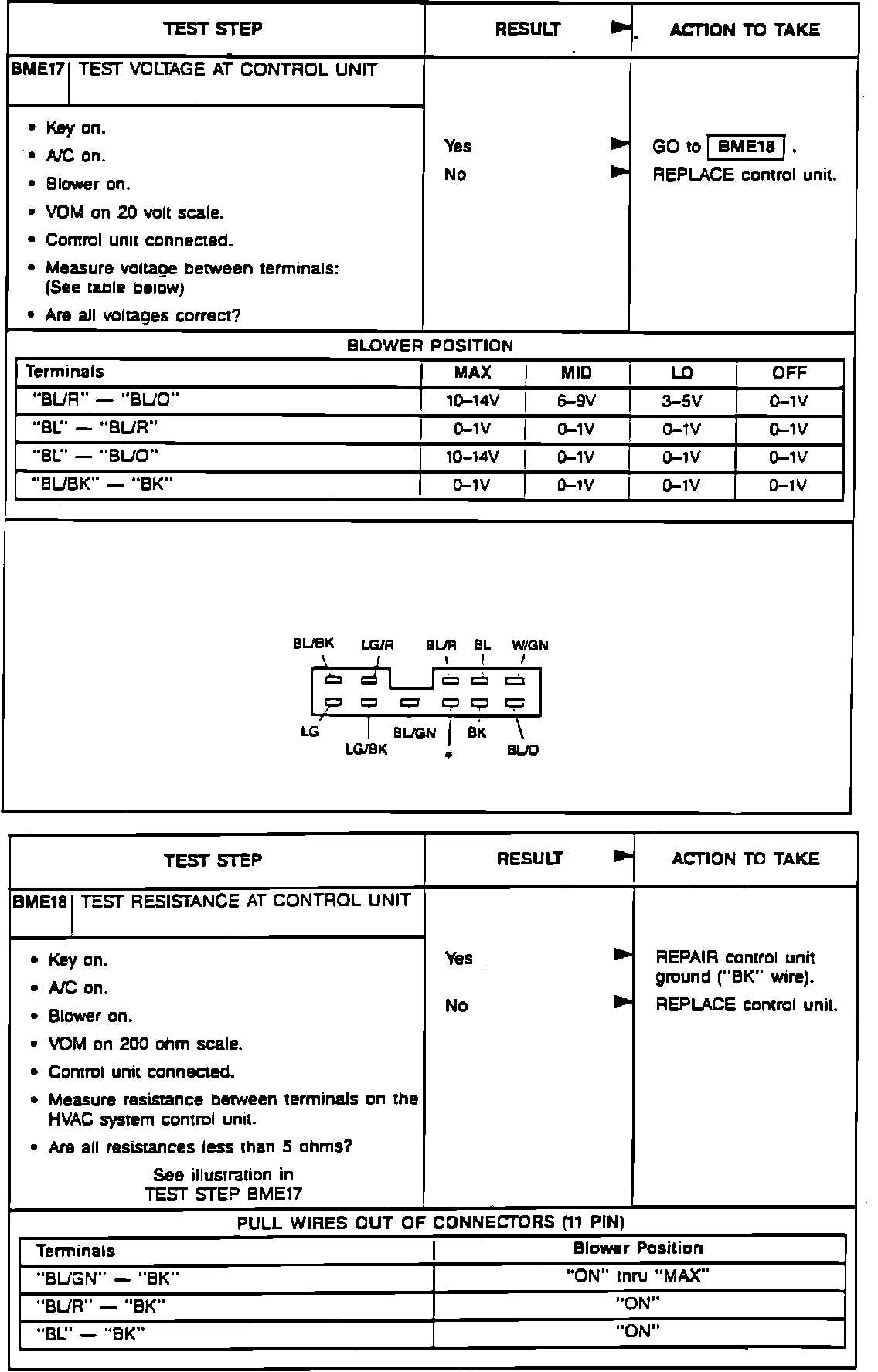

Fig. 39j Blower Motor Diagnosis:
