Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> SP3: Speed Control System Voltage

SP3: Speed Control System Voltage

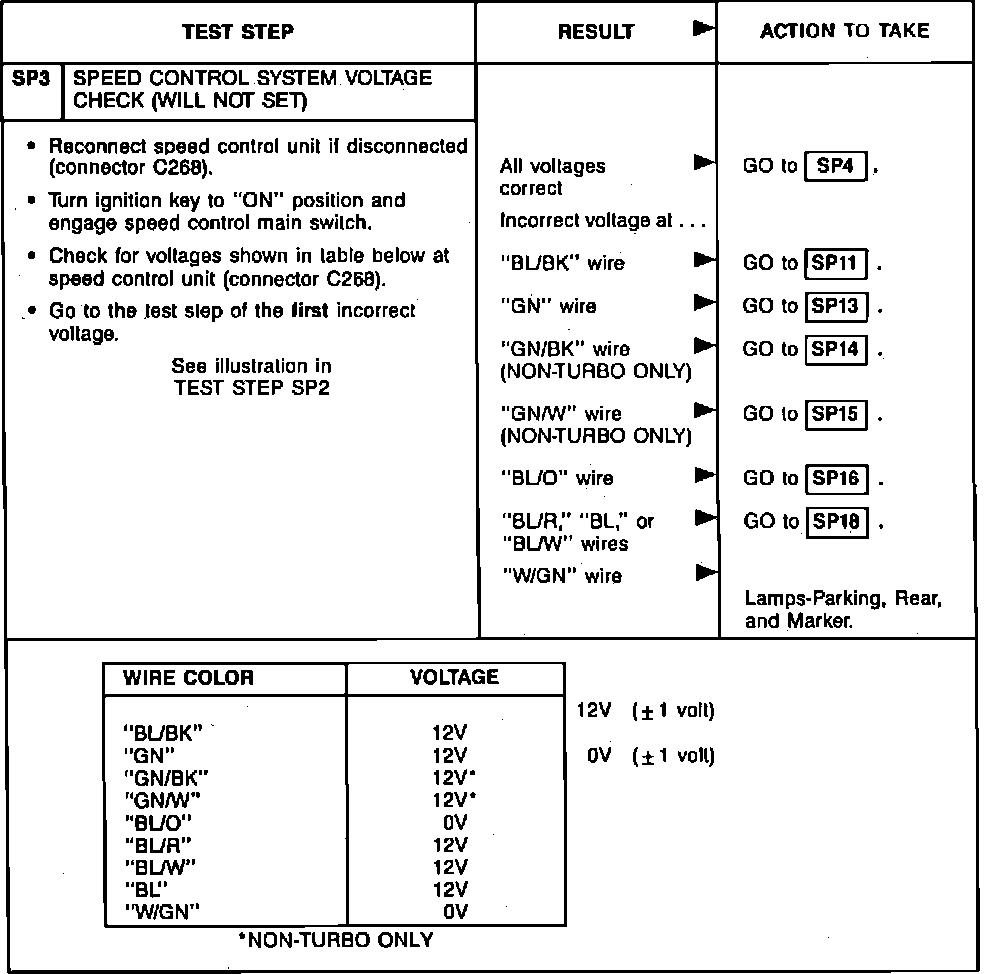

Fig. 77 Diagnosis and Testing (Part 3 Of 30):
