Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> SP2: Actuator Signals Check

SP2: Actuator Signals Check

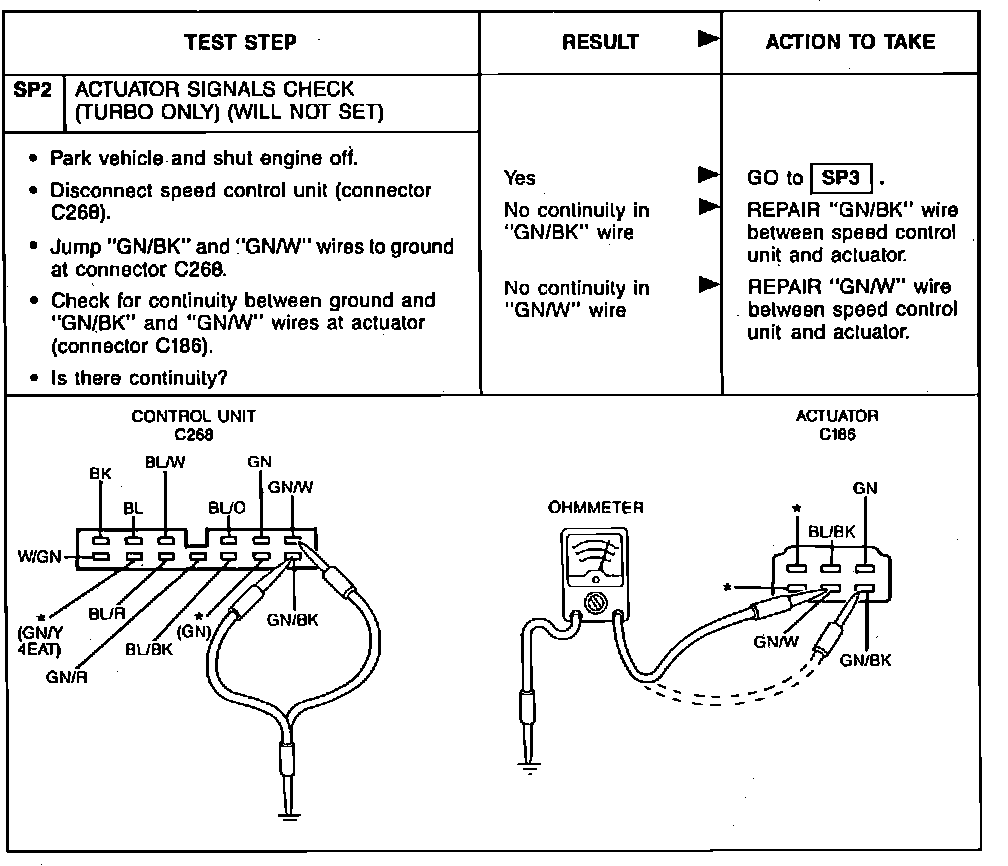

Fig. 77 Diagnosis and Testing (Part 2 Of 30):
