Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> SP18: Speed Control Switch Signal Check

SP18: Speed Control Switch Signal Check

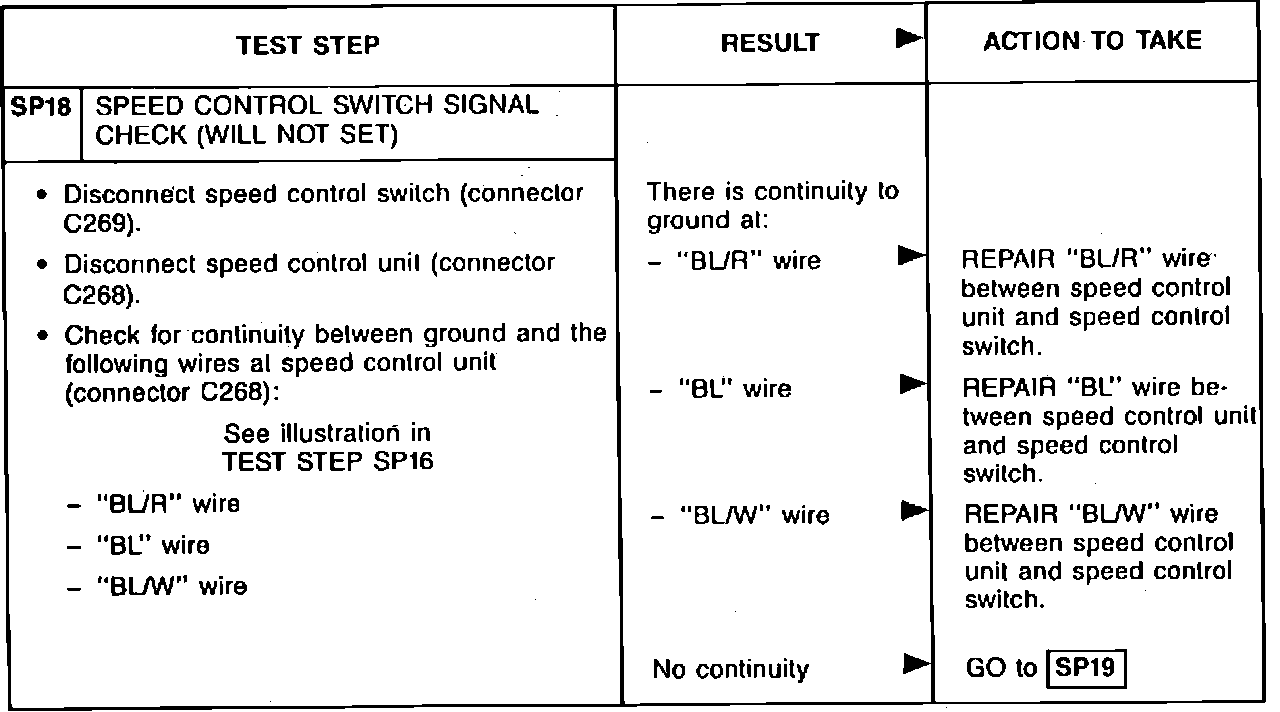

Fig. 77 Diagnosis and Testing (Part 18 Of 30):
