Ignition Timing Connector: Locations






(C275) SPOUT Connector:

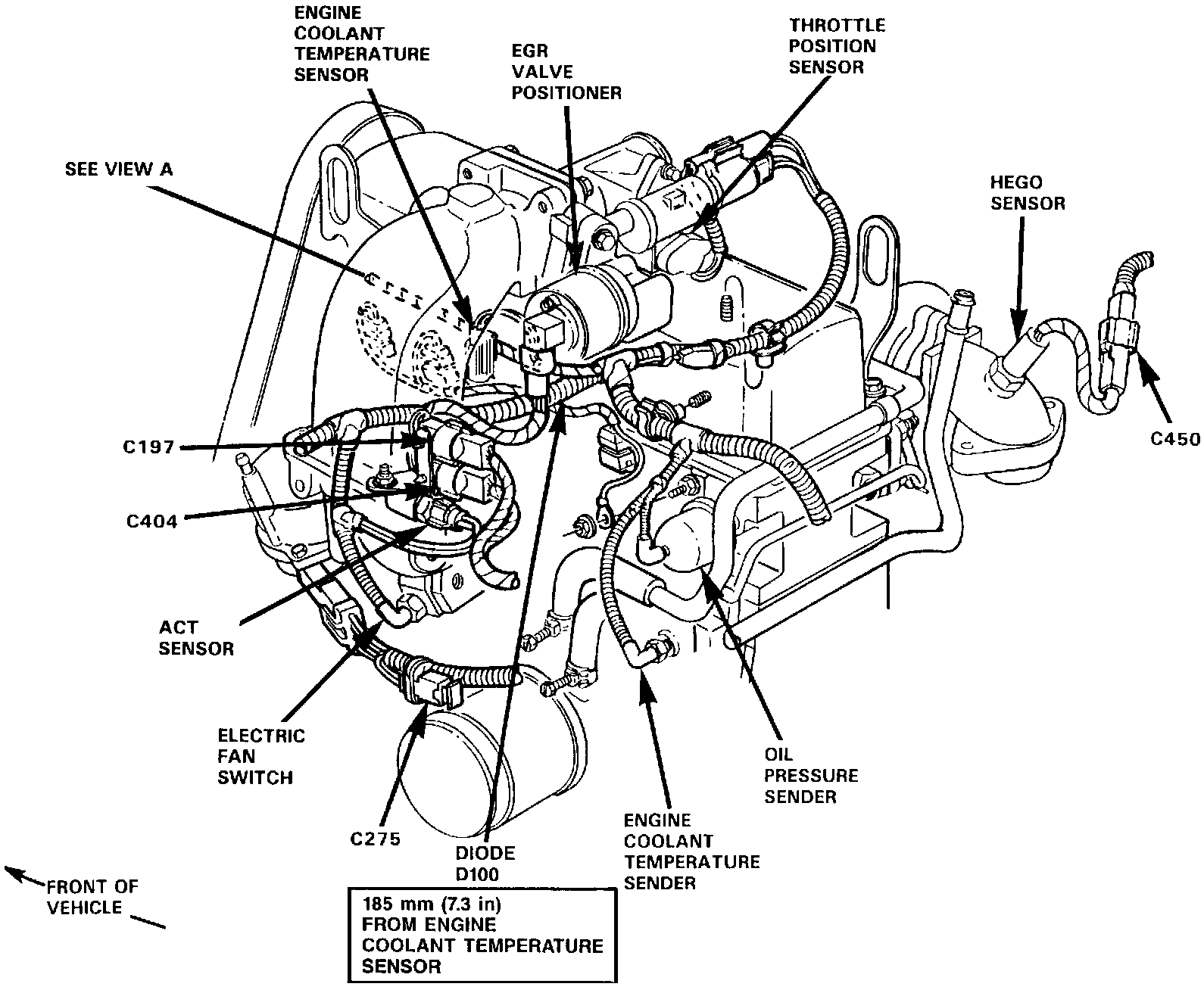

The igniting timing SPOUT Connector (C275) is located at the LH side of engine.
