Main Relay (Computer/Fuel System): Locations
Thunderbird 2.3 Turbo:

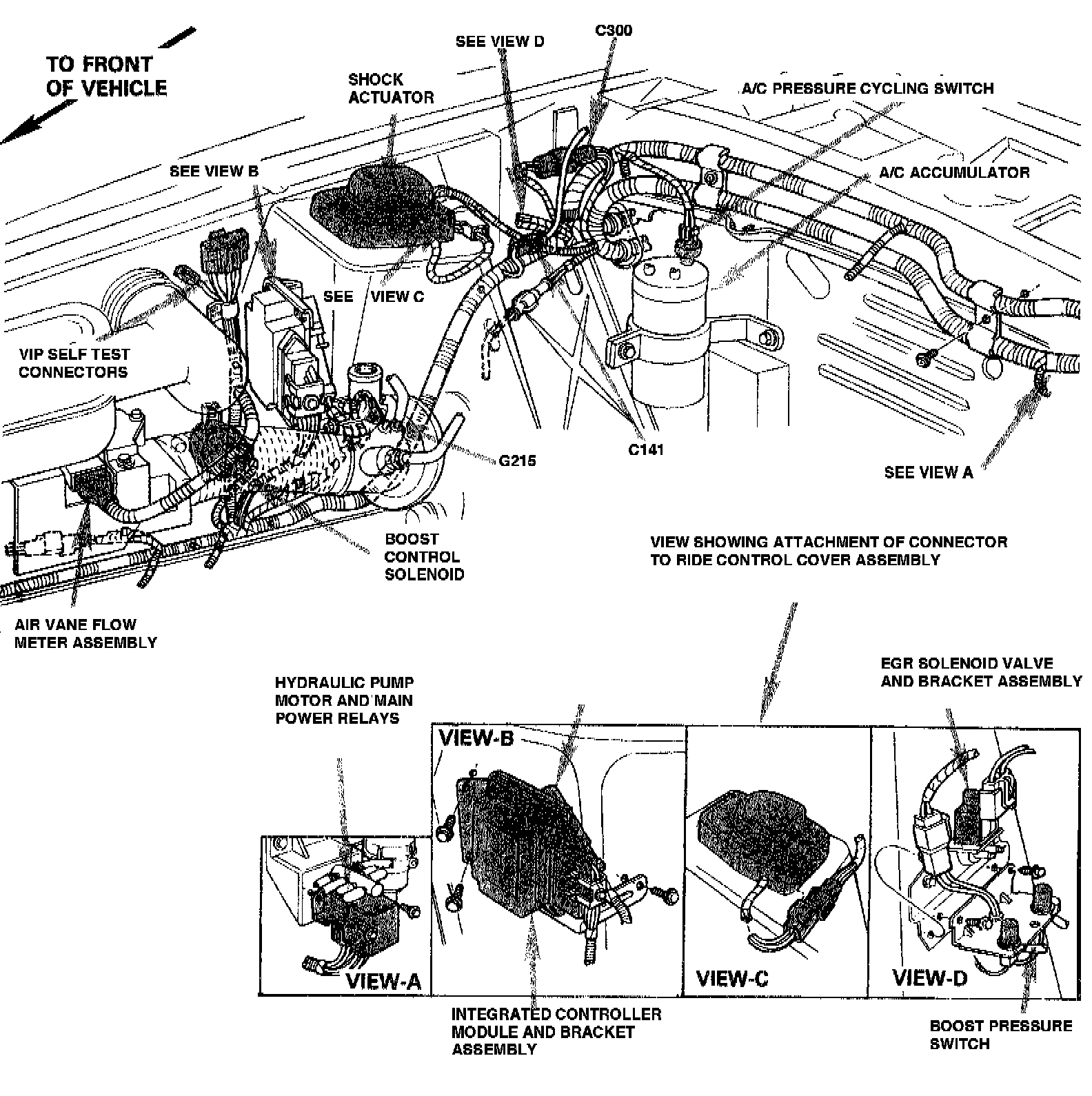

The 2.3 EFI Turbo utilizes an Integrated Controller Module located on the RH Fender Apron.
