Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB8 - KB10
KB8 - KB10

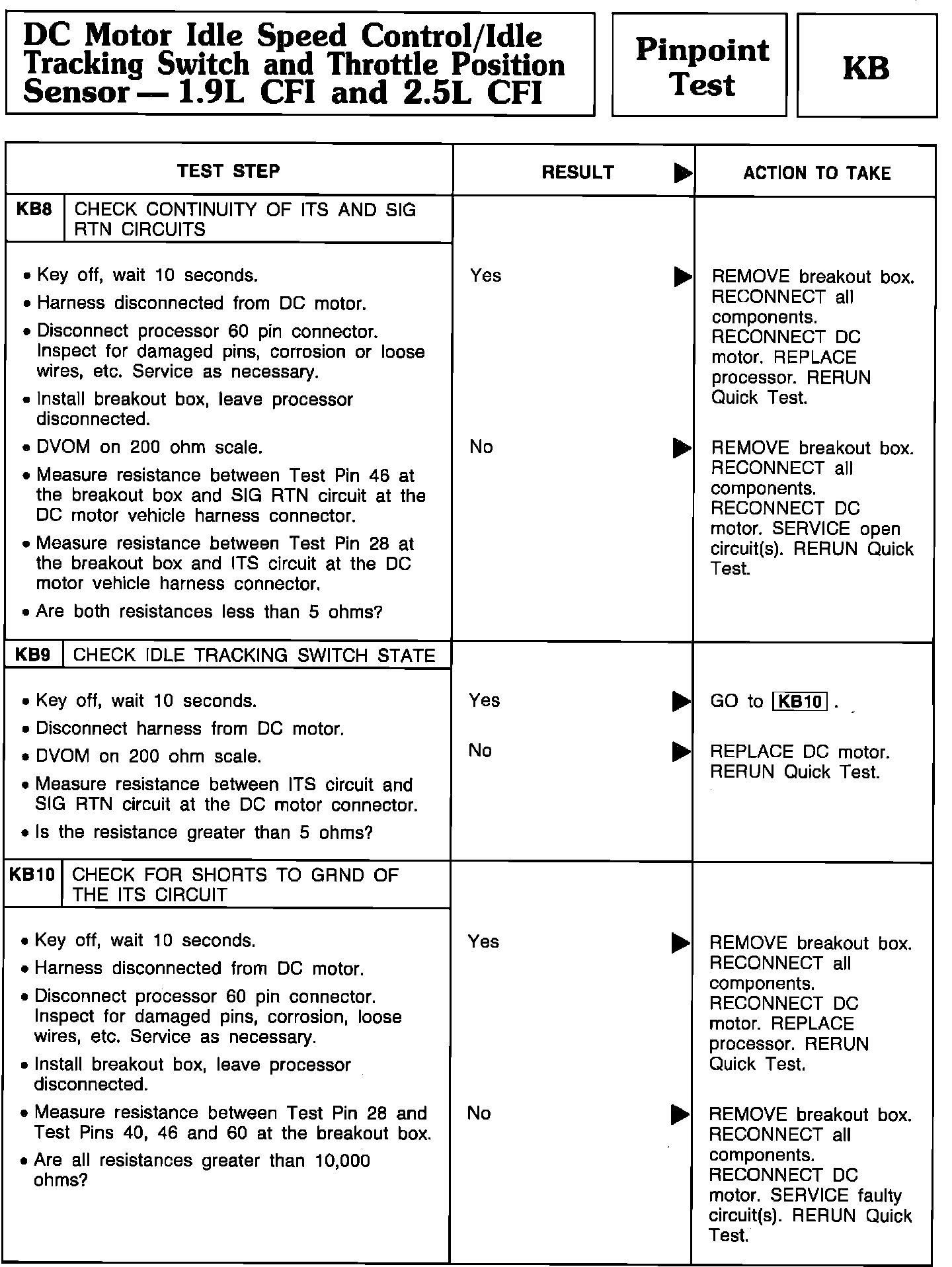

Pinpoint Test KB8 Thru KB10 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
