KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB3 - KB4
KB3 - KB4

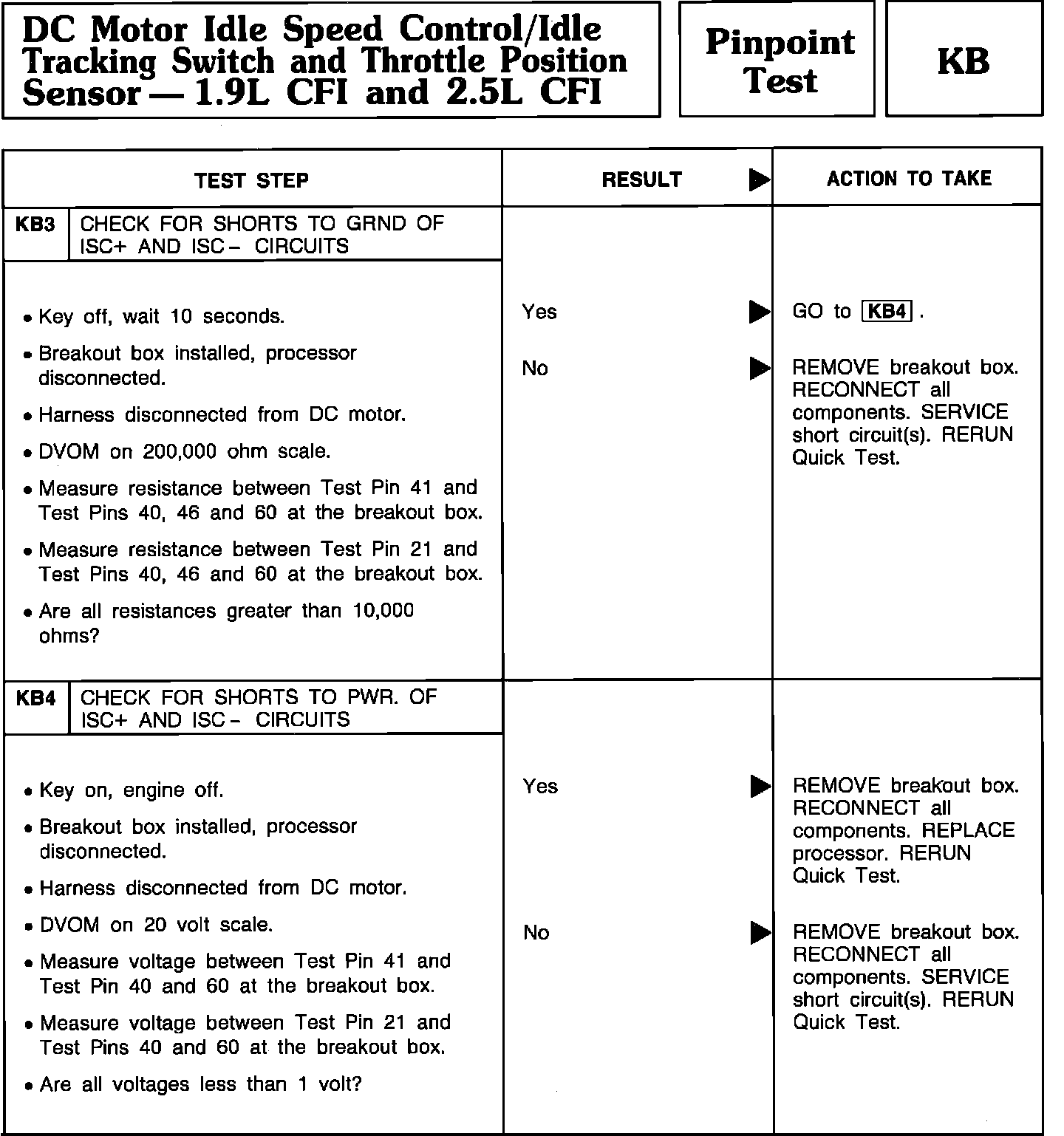

Pinpoint Test KB3 & KB4 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
