FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford
>>
1988
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB27 - KB29
KB27 - KB29

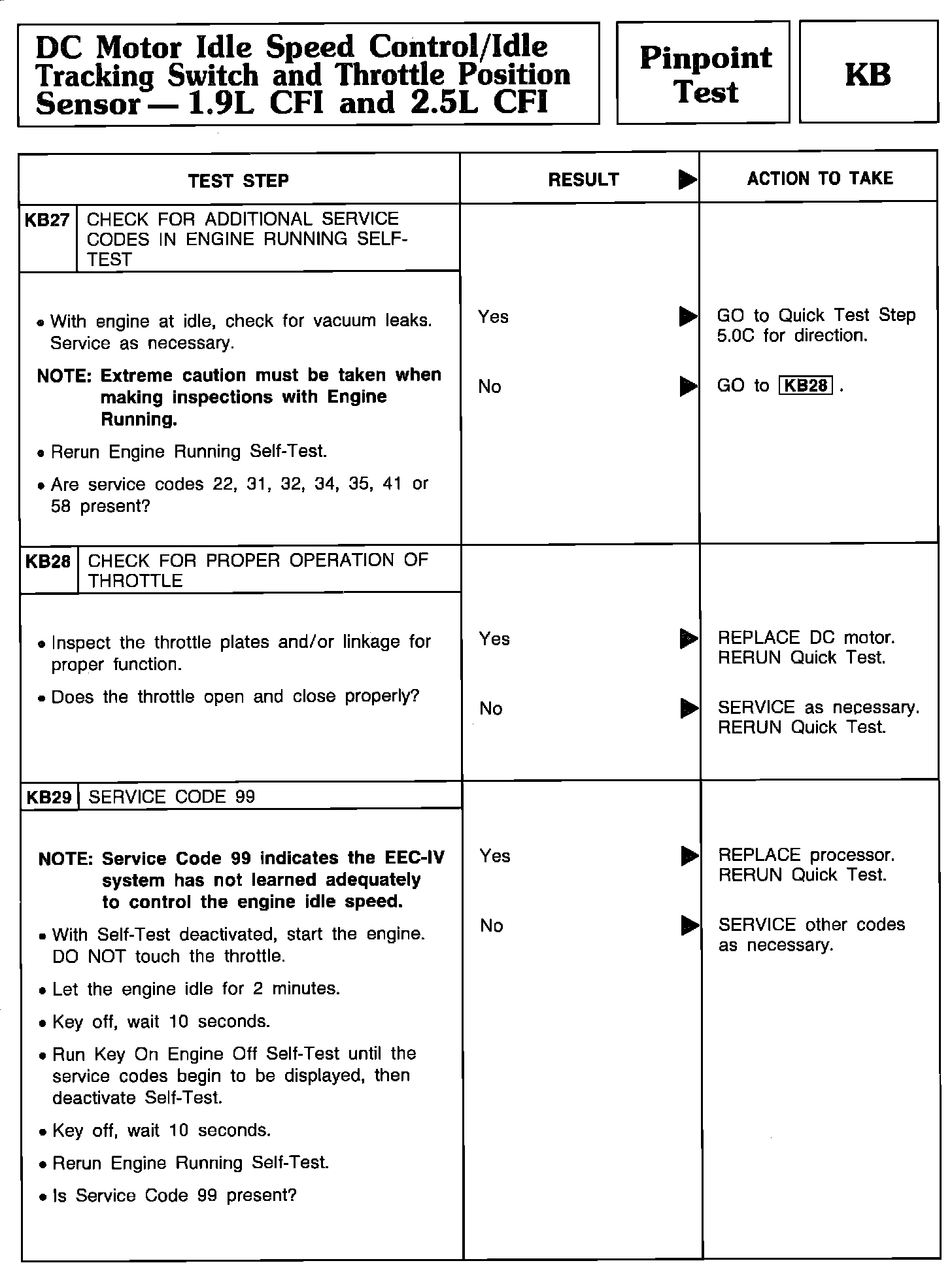

Pinpoint Test KB27 Thru KB29 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
