Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB15 - KB17
KB15 - KB17

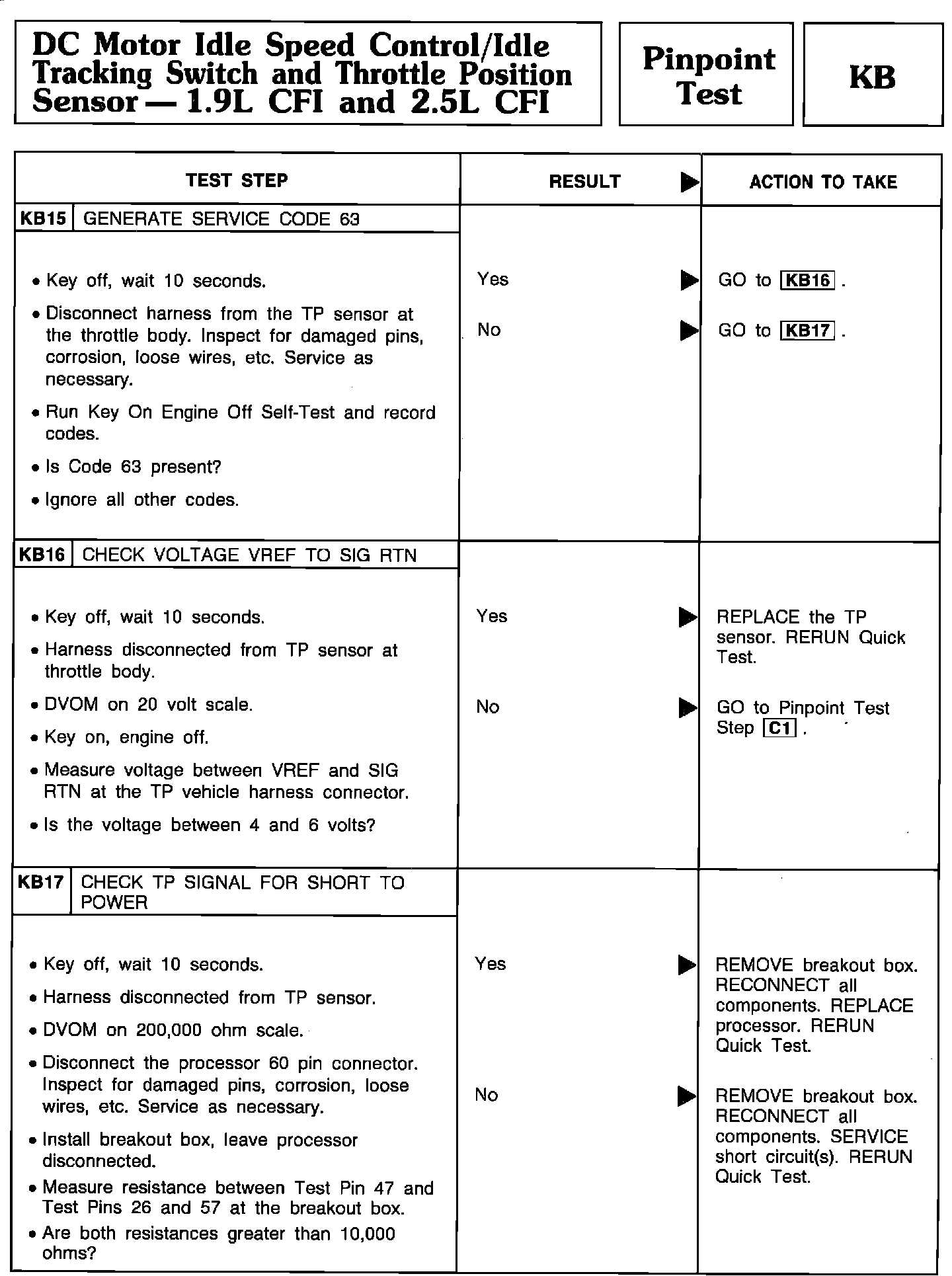

Pinpoint Test KB15 Thru KB17 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
