Home
>>
Ford
>>
1988
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations

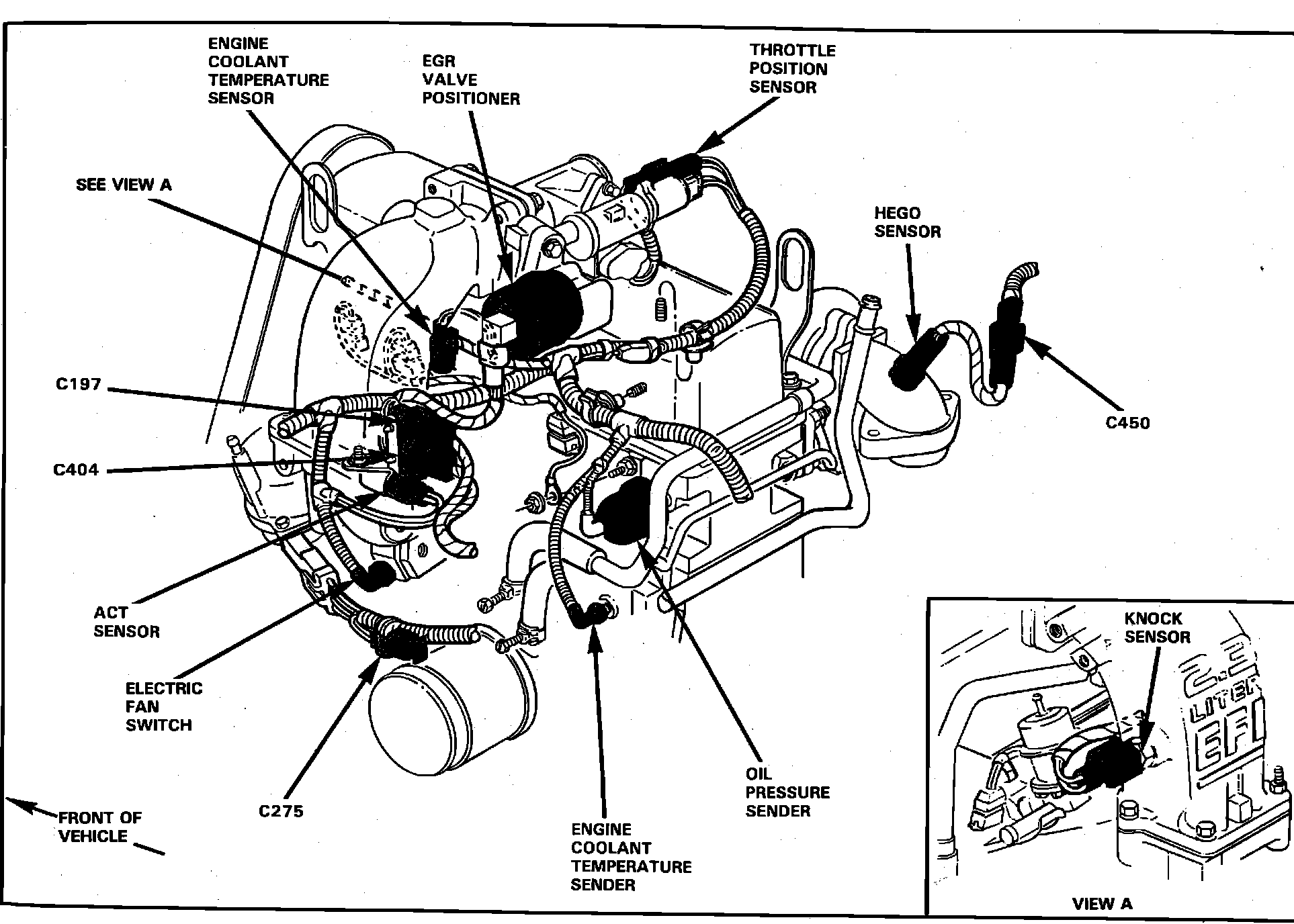

Coolant Temperature Sensor/Switch (For Computer): Locations
Engine Wiring.:
LH Side Of Engine
Applicable to: 4-140/2.3L Engine
