Home >> Ford >> 1987 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cooling System >> System Diagram >> Cooling Fan Control (Electronic Engine Control EEC-IV Module) >> Automatic Transaxle

Automatic Transaxle

Wiring Schematic - EEC-IV System:

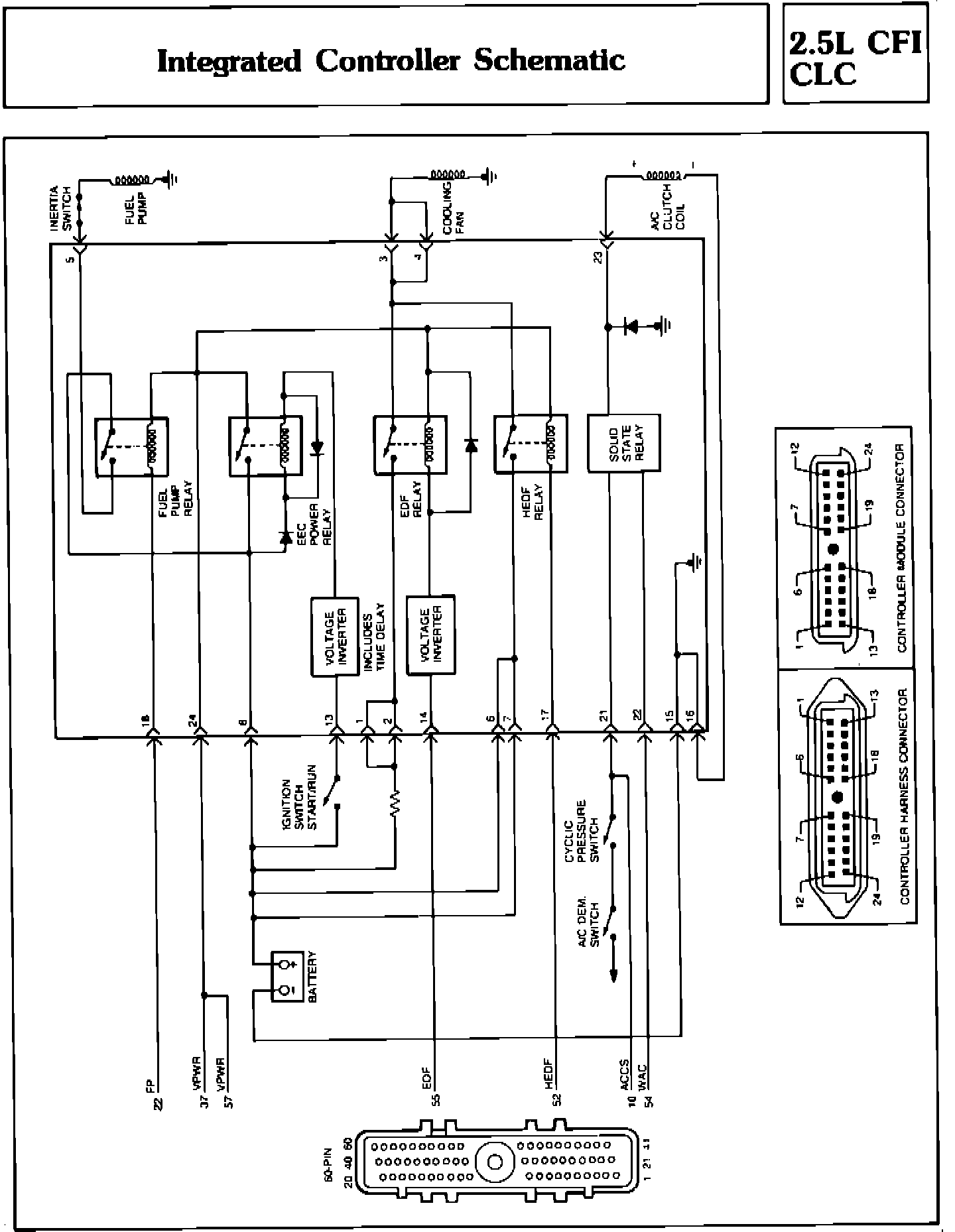

Wiring Schematic - Integrated Controller:



Pin Usage - EEC-IV Module Connector:



Pin Usage - Integrated Controller:
