Home >> Ford >> 1987 >> Mustang L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> EGR Valve Position Sensor >> Locations >> Component Locations

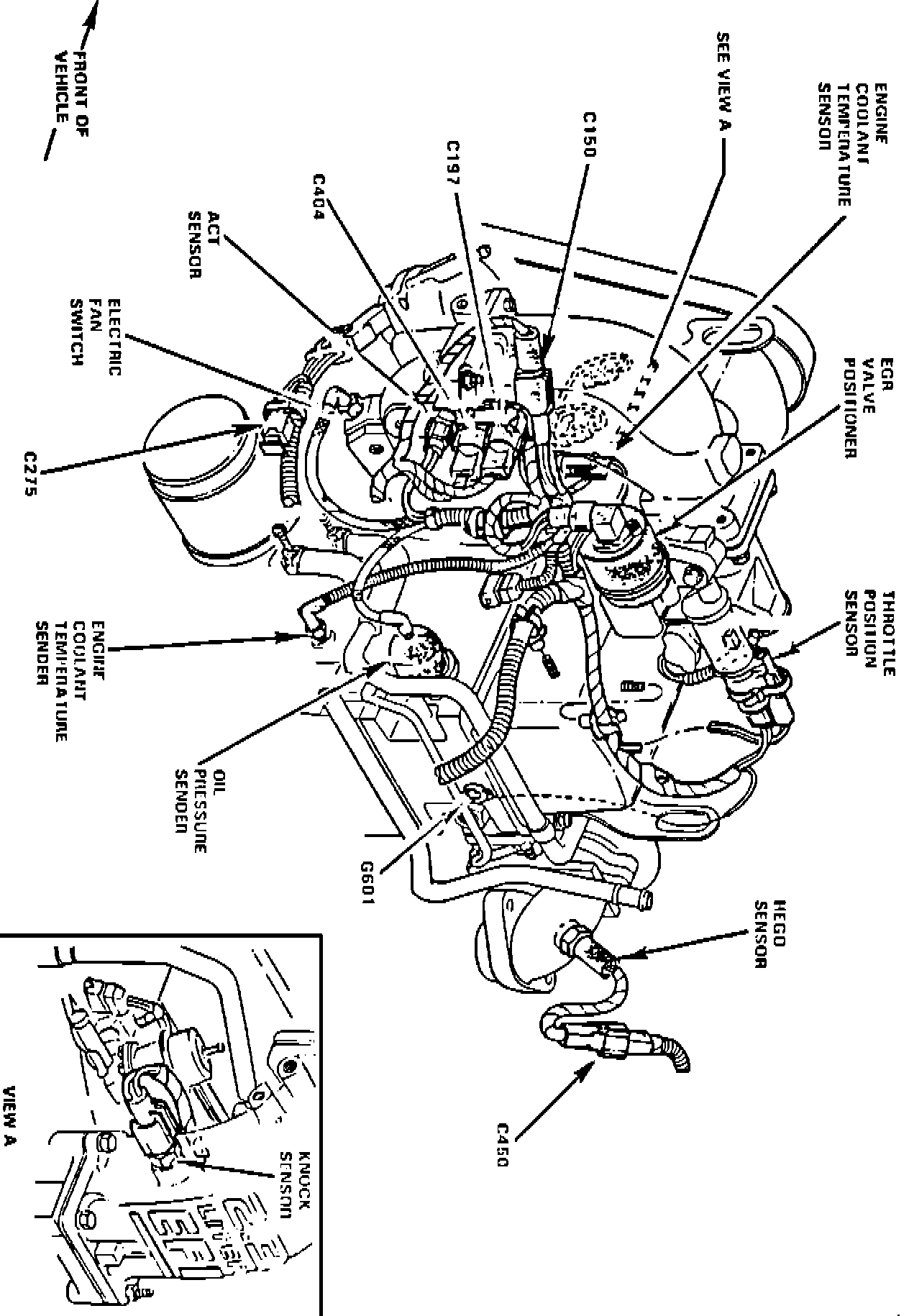

Component Locations

4-140/2.:




Top LH Rear Of Engine

Applicable to: 3L Engine. 1987
