Radiator Cooling Fan Control Module

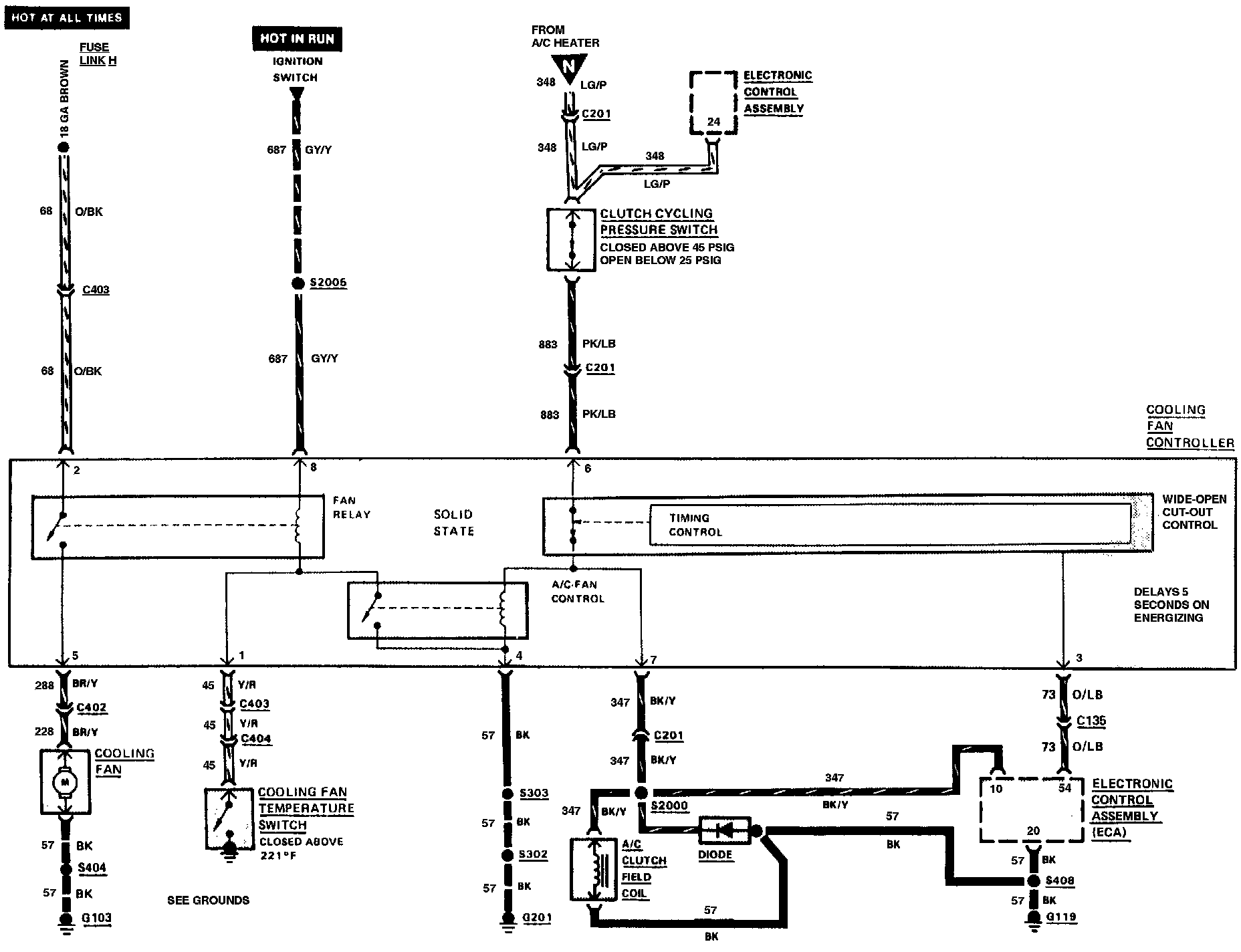

Fig. 8 Compressure Clutch & Cooling Fan Wiring Circuit. 4-140/2.3L Engine:
