Seating - 2nd Row




Symptom Chart(s)

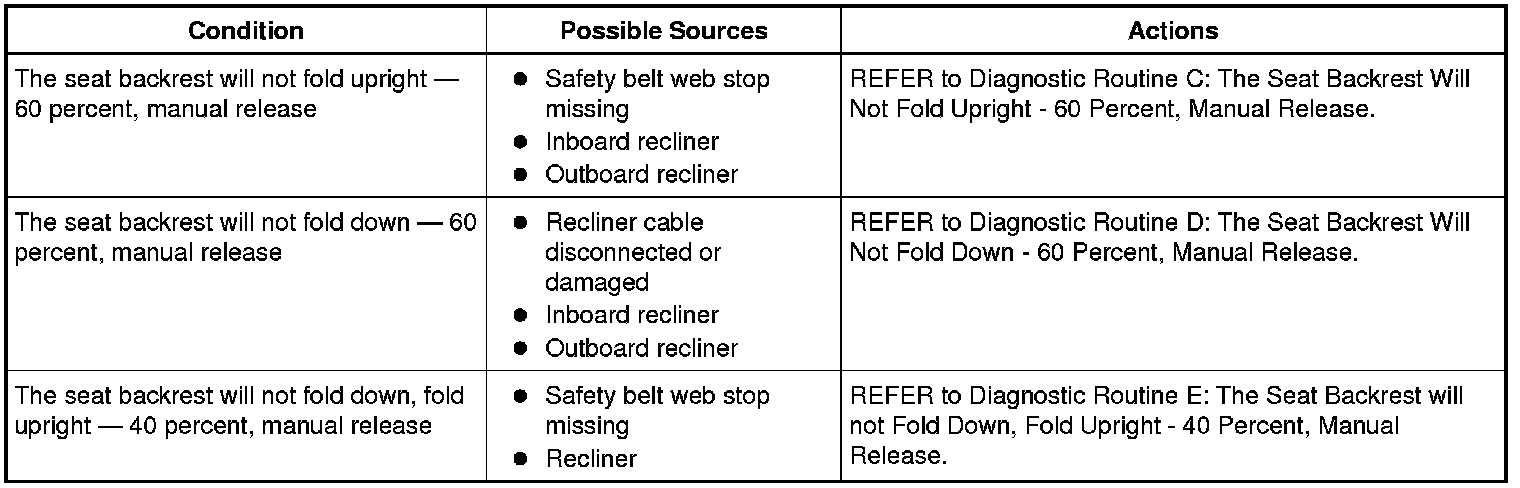

Symptom Chart: Seating - Manual

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

Symptom Chart

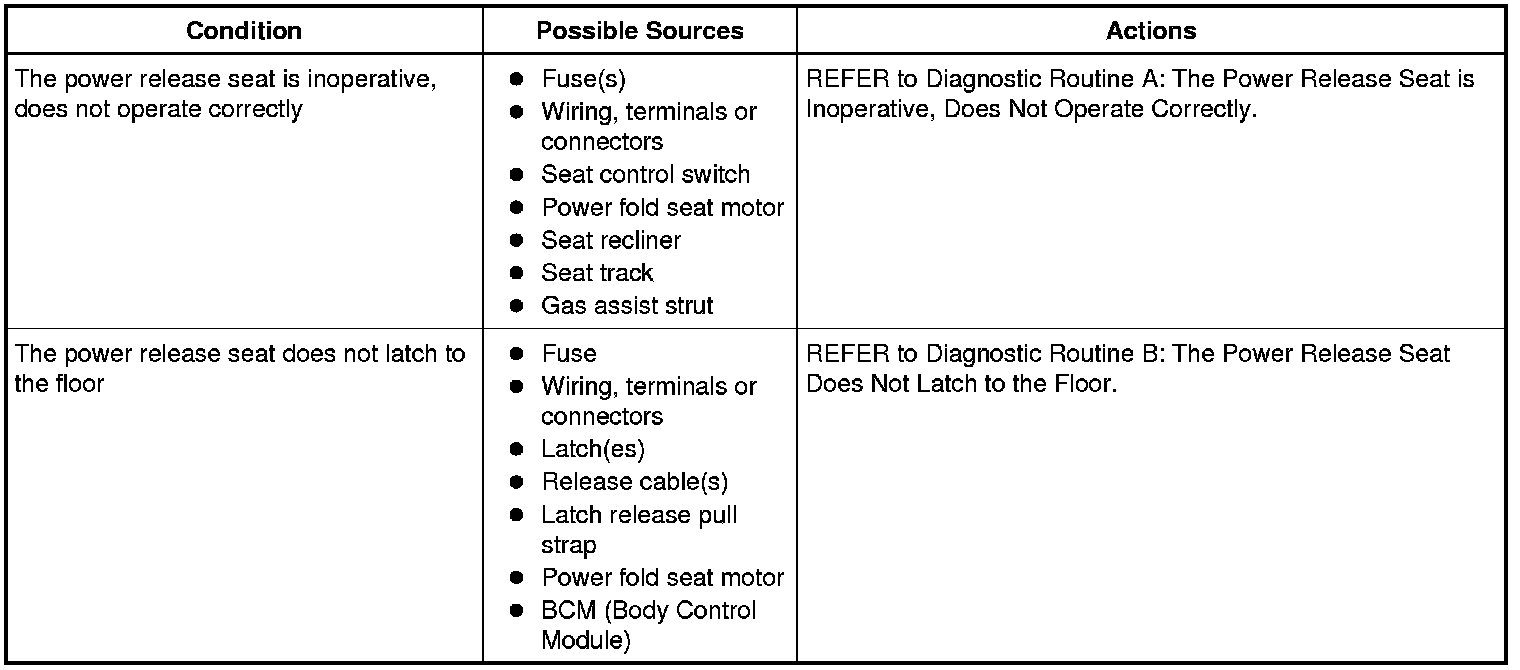

Symptom Chart: Seating - Power Release

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

Symptom Chart
