Handles, Locks, Latches and Entry Systems - without Intelligent Access (IA)

Symptom Chart(s)

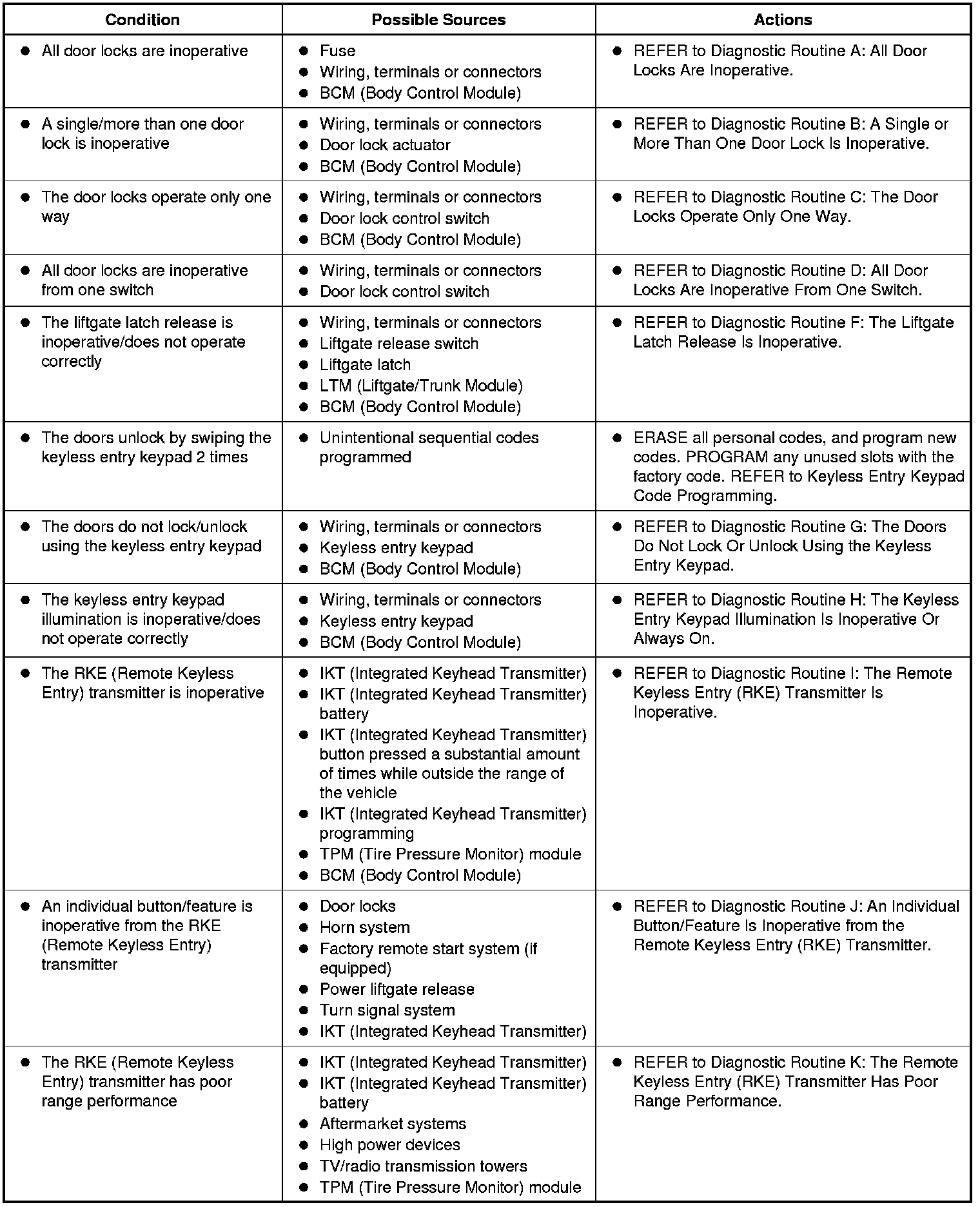

Symptom Chart: Handles, Locks, Latches and Entry Systems - Electrical

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

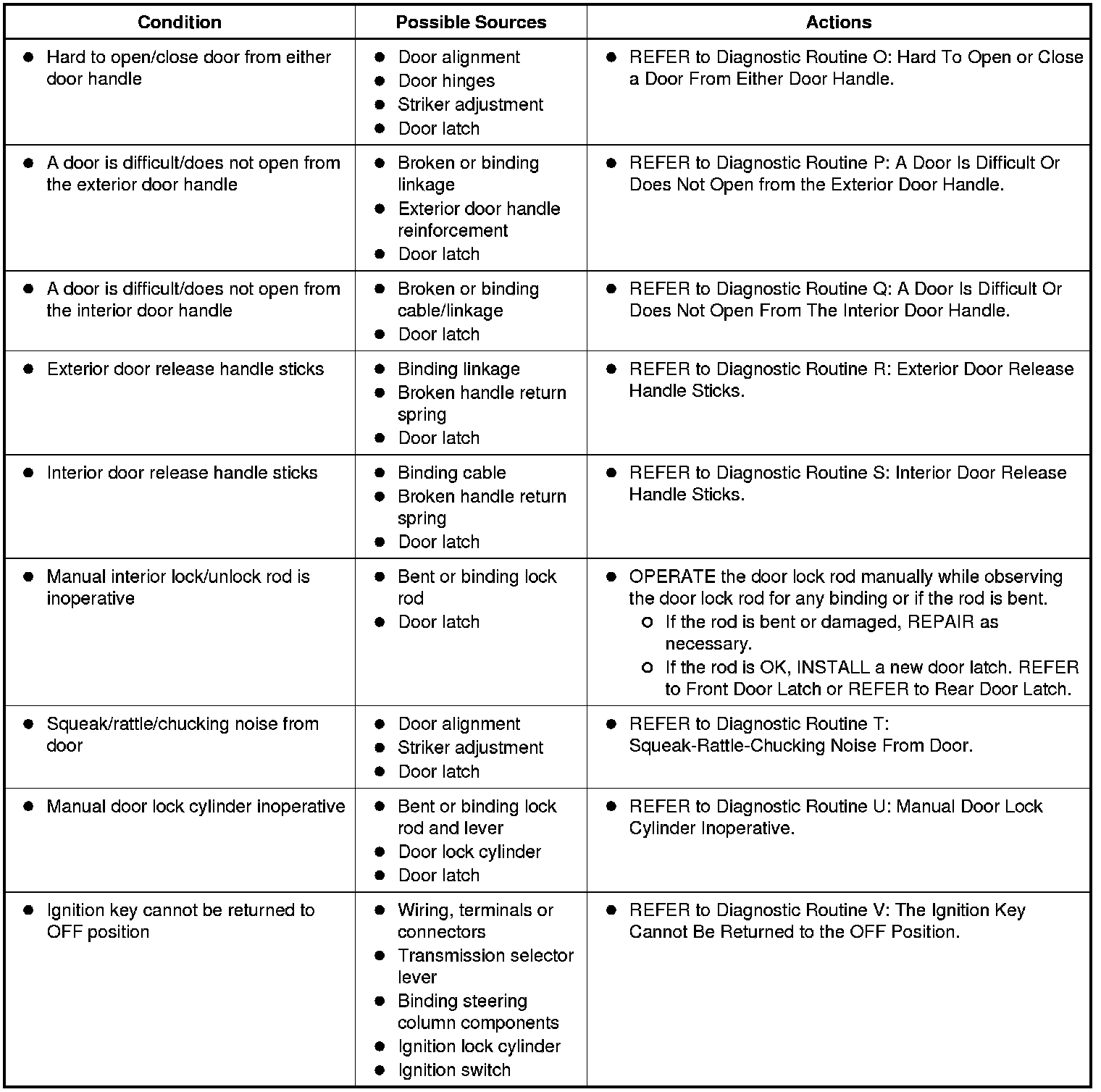

Symptom Chart: Handles, Locks, Latches and Entry Systems - Mechanical

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.
