Diagnostic Routine N

Diagnostic Routine N

Diagnostic Overview

The Auto-Unlock Does Not Operate Correctly

Normal Operations and Fault Conditions

REFER to Auto-Unlock for auto-unlock operation.

Pinpoint Test

1. CHECK THE DOOR AND LIFTGATE AJAR SWITCH INPUT OPERATION

1. Open and close the front doors and liftgate while checking the courtesy lamp operation.

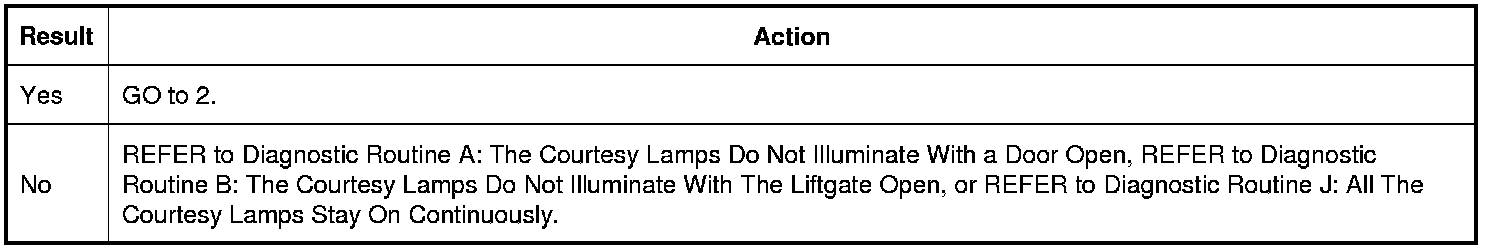

Do the courtesy lamps operate correctly?








2. CHECK THE VEHICLE SPEED OPERATION

1. Check the operation of the speedometer.

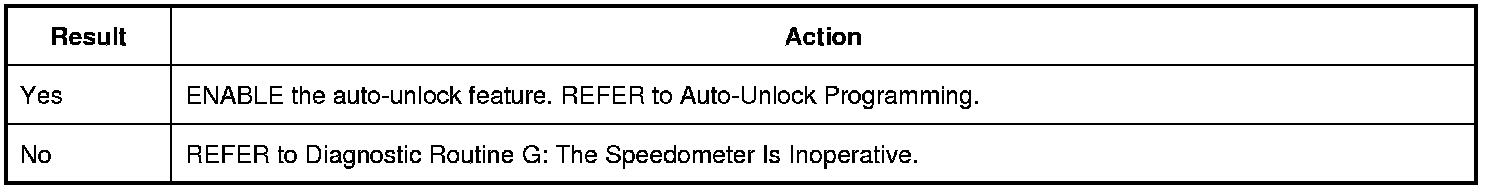

Does the speedometer operate correctly?
