Diagnostic Routine L

Diagnostic Routine L

Diagnostic Overview

The Smart Unlock Does Not Operate Correctly

Normal Operations and Fault Conditions

REFER to Smart Unlock for smart unlock operation.

Pinpoint Test

1. CHECK THE DOOR AND LIFTGATE AJAR SWITCH INPUT OPERATION

1. Open and close the front doors and liftgate while checking the courtesy lamp operation.

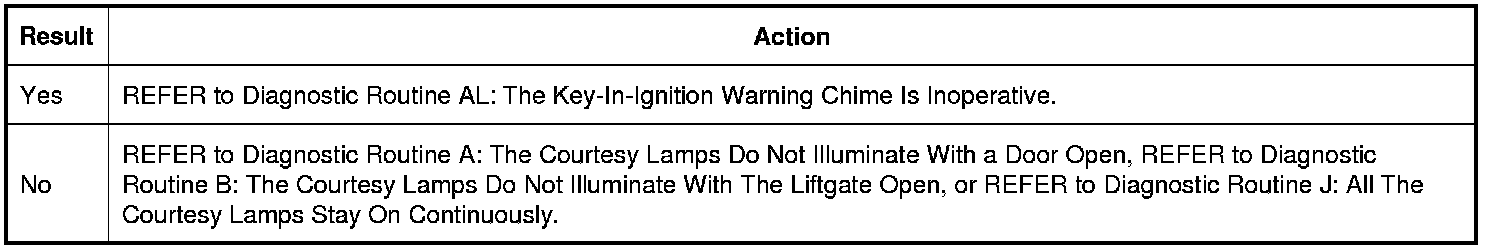

Do the courtesy lamps operate correctly?
