Diagnostic Routine N

Diagnostic Routine N

Diagnostic Overview

The Autolock Does not Operate Correctly

Normal Operations and Fault Conditions

REFER to Autolock for information on autolock operation.

Pinpoint Test

1. CHECK THE DOOR AJAR INPUT OPERATION

1. Open and close each door and liftgate while checking the courtesy lamp operation.

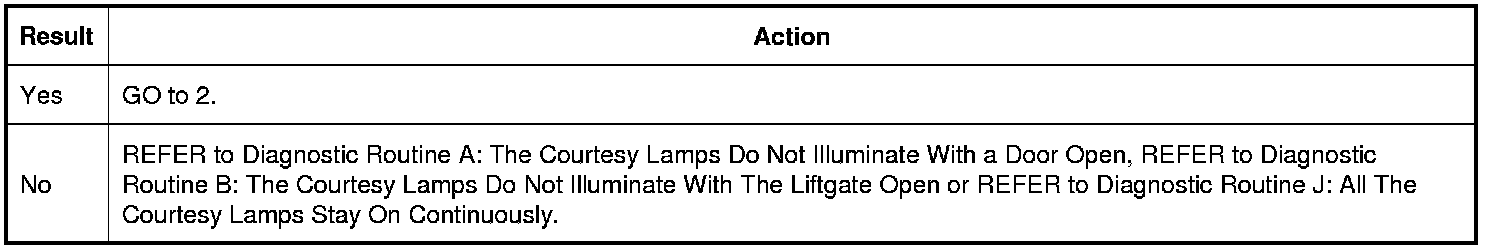

Do the courtesy lamps operate correctly?








2. CHECK THE SPEEDOMETER OPERATION

1. Check the operation of the speedometer.

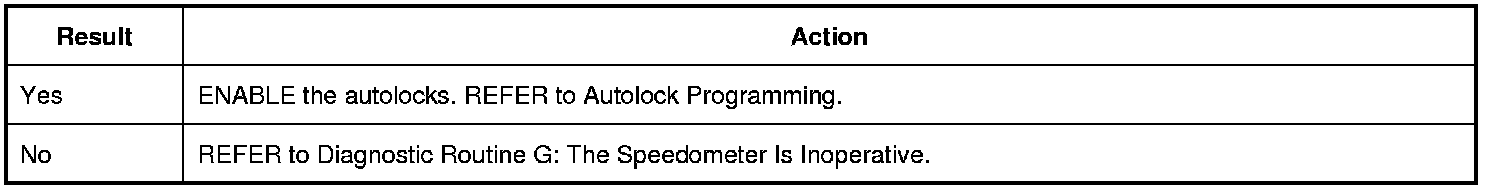

Does the speedometer operate correctly?
