Collision Avoidance




Symptom Chart(s)

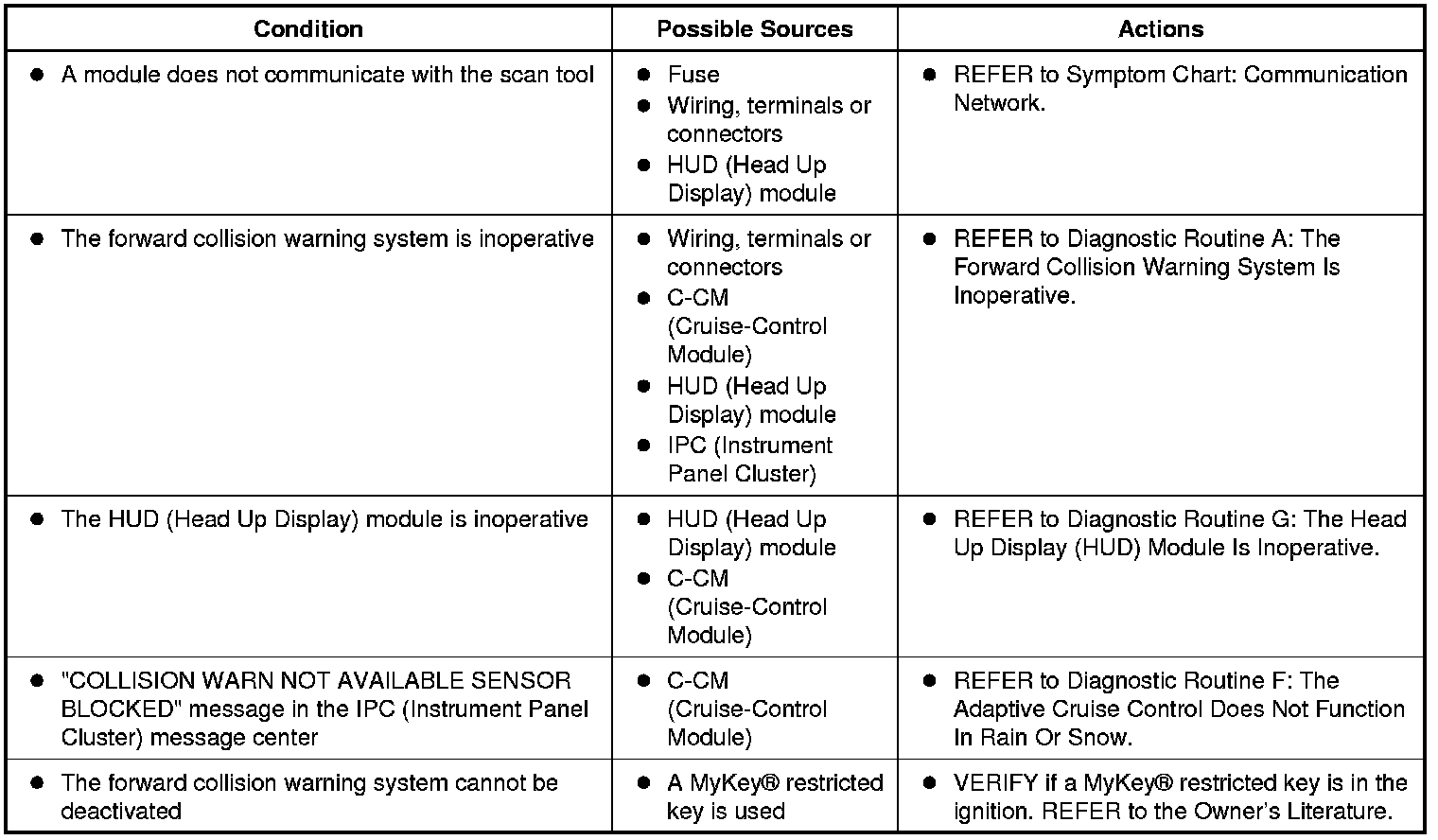

Symptom Chart: Collision Avoidance

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

Symptom Chart
