DTC Chart: Front Controls Interface Module (FCIM) - Sony Sound

DTC Chart: Front Controls Interface Module (FCIM) - Sony(R) Sound

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

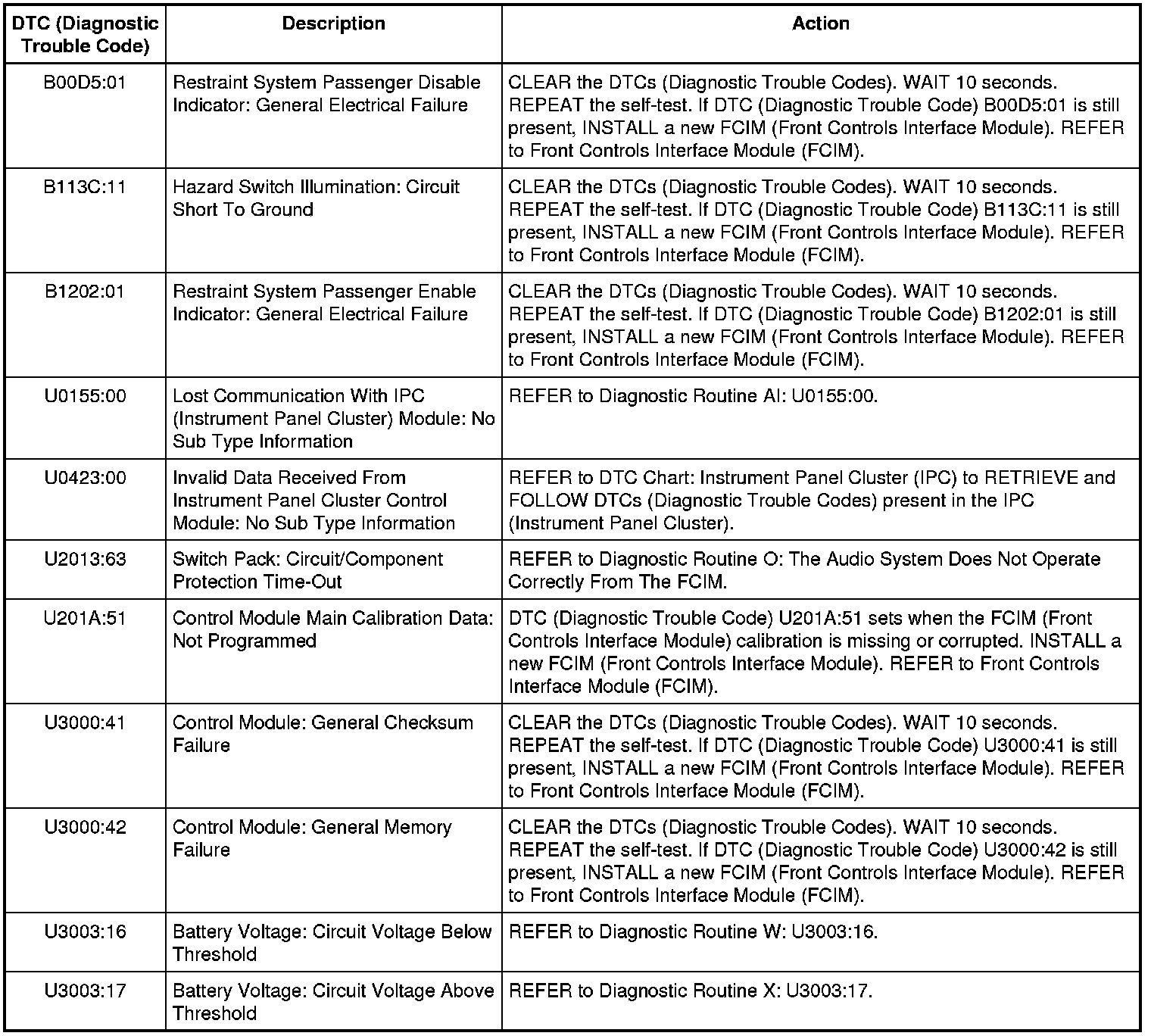

FCIM (Front Controls Interface Module) DTC (Diagnostic Trouble Code) Chart
