DTC Chart: Audio Digital Signal Processing (DSP) Module - Sony Sound

DTC Chart: Audio Digital Signal Processing (DSP) Module - Sony(R) Sound

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

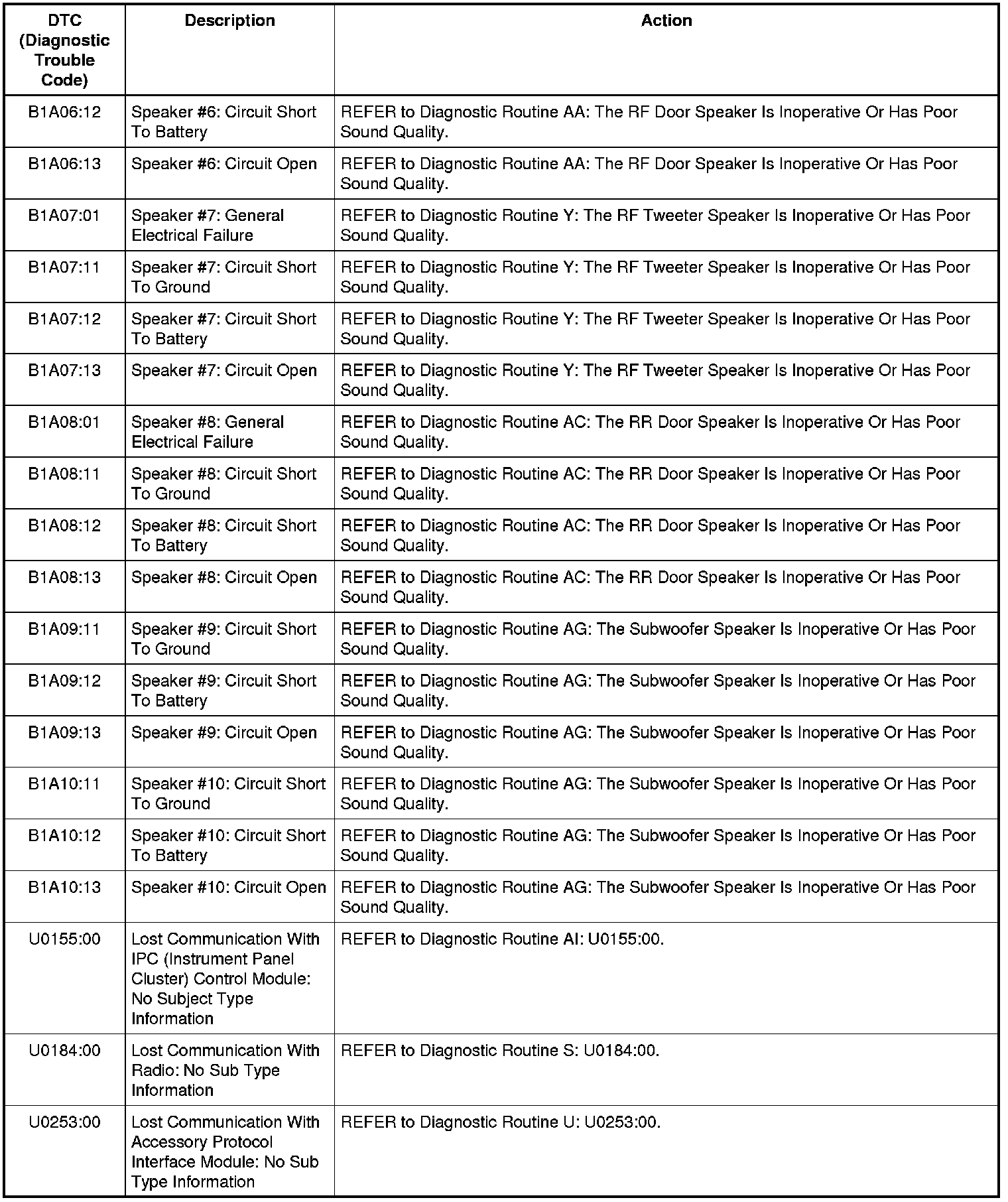

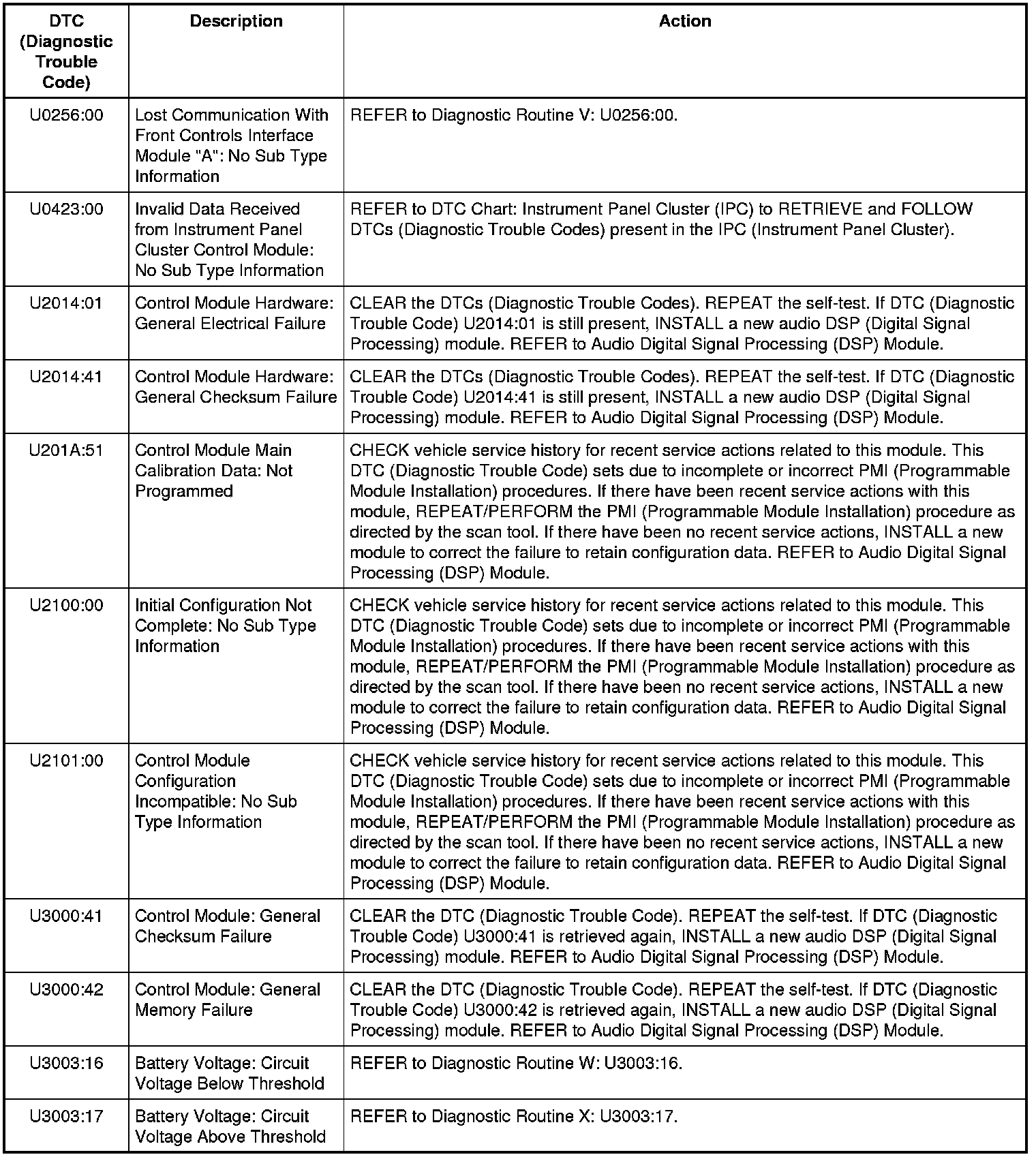

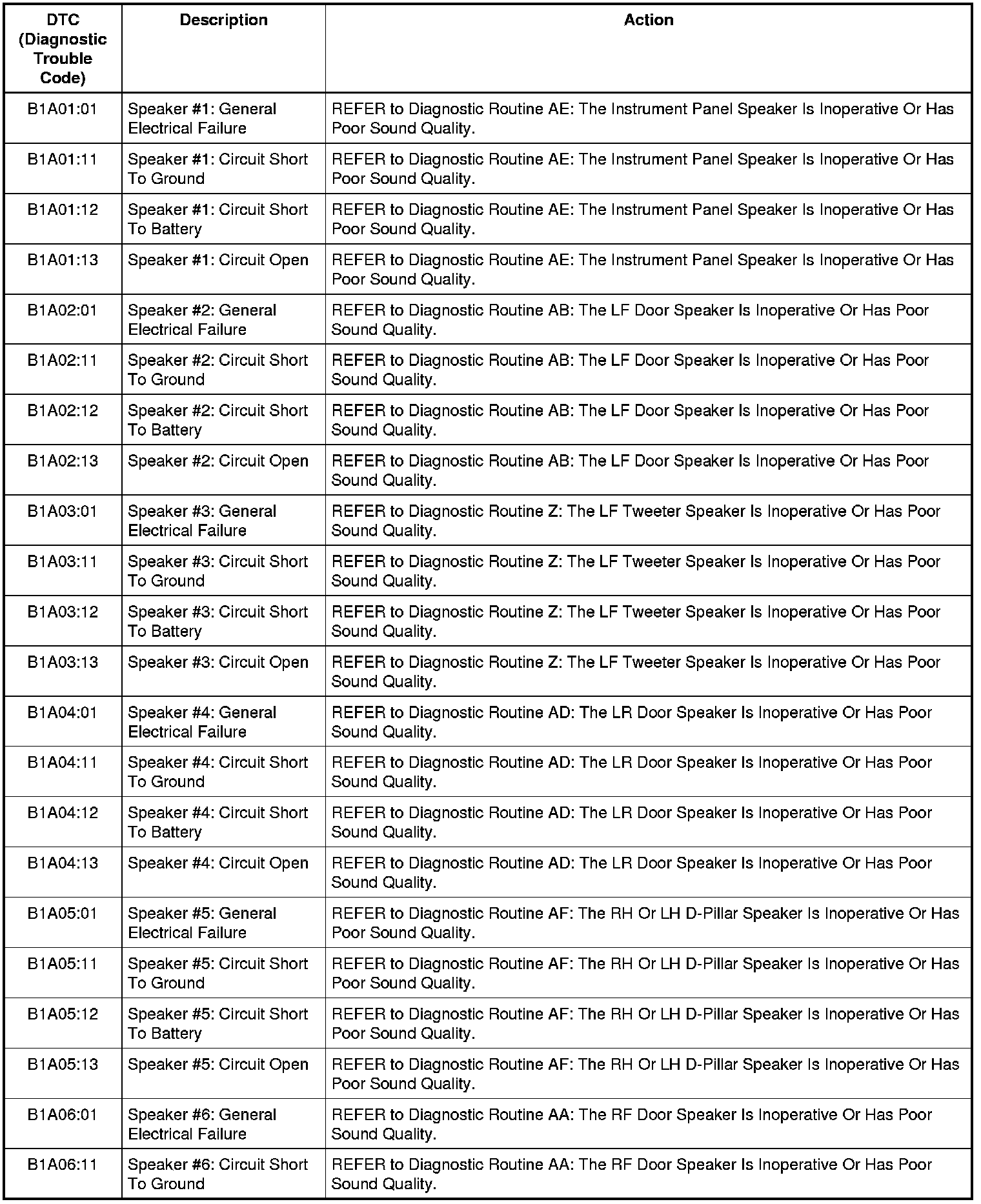

Audio DSP (Digital Signal Processing) Module DTC (Diagnostic Trouble Code) Chart
