Test TC: Torque Of Generator Signal
Test TC: Torque Of Generator Signal

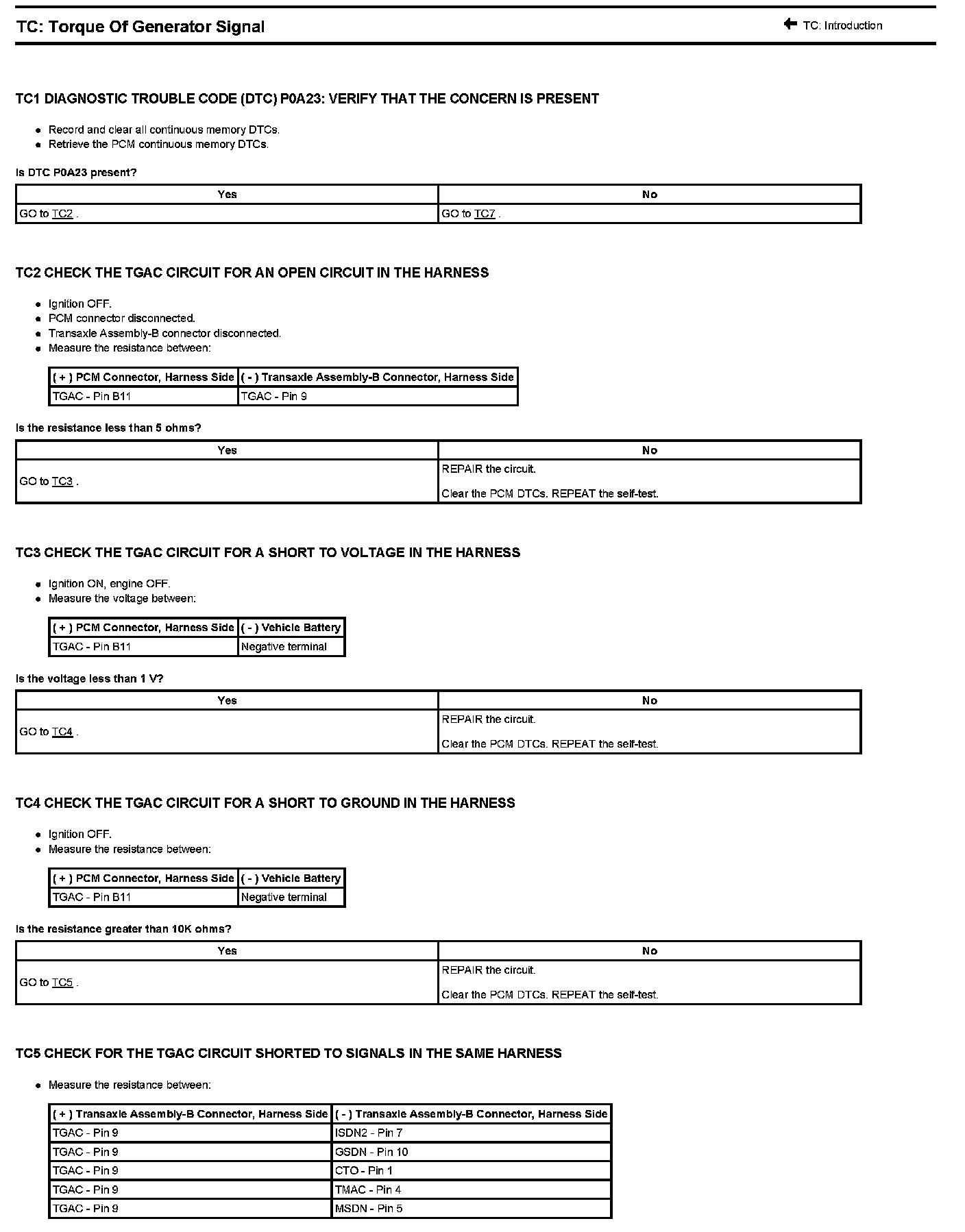

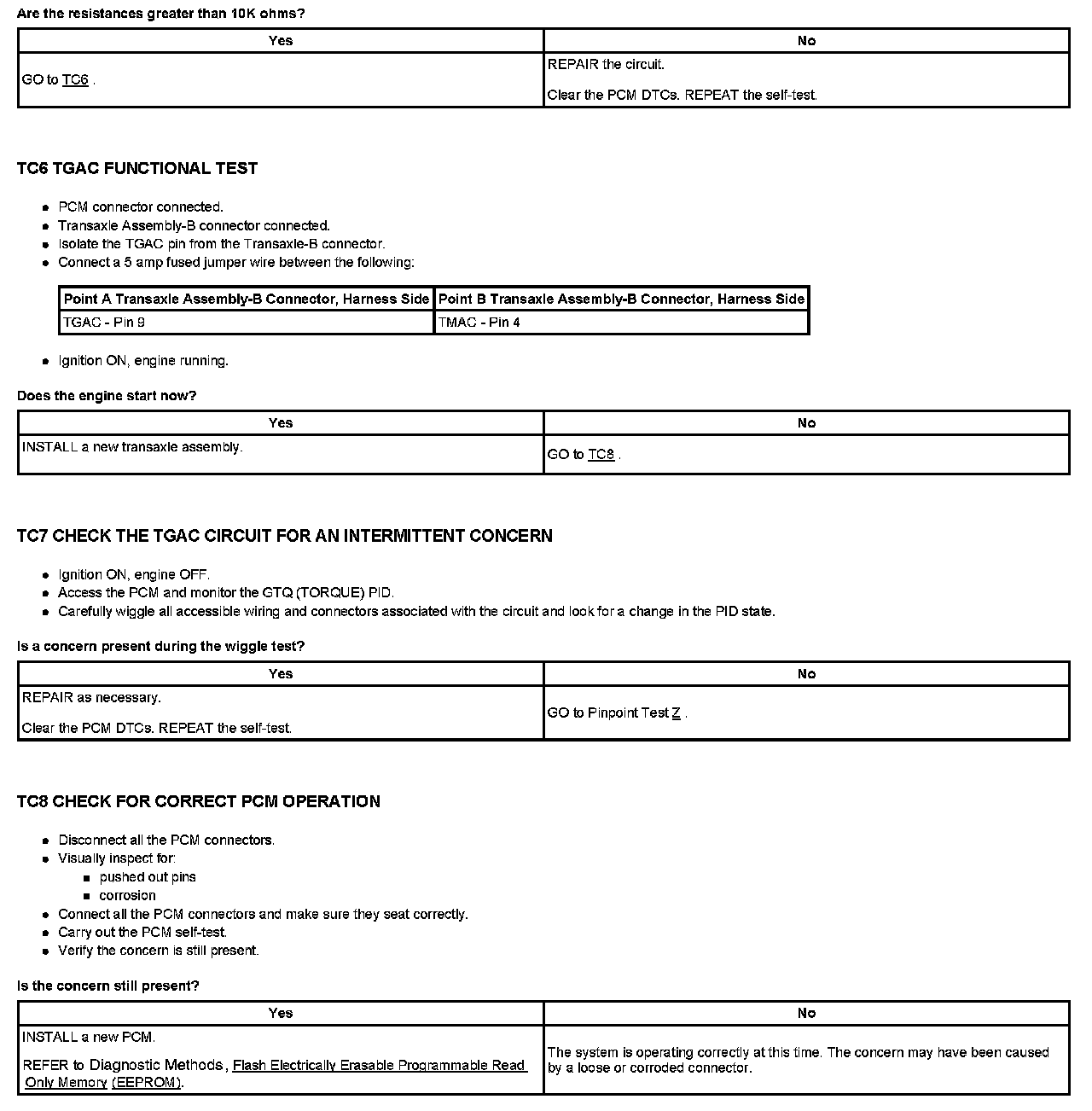

TC: TORQUE OF GENERATOR SIGNAL

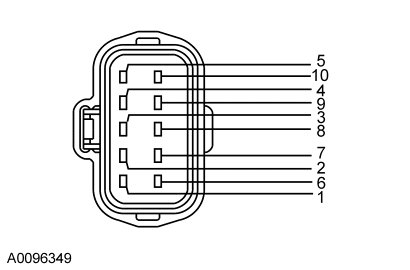

Transaxle Assembly-B Connector

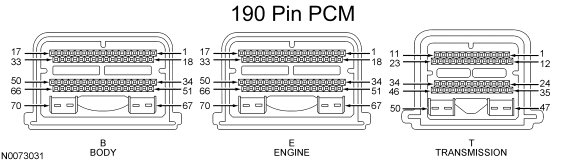

Powertrain Control Module (PCM) Connector
