Escape 2WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Specifications
>>
Mechanical Specifications
>>
Climate Control System
Climate Control System

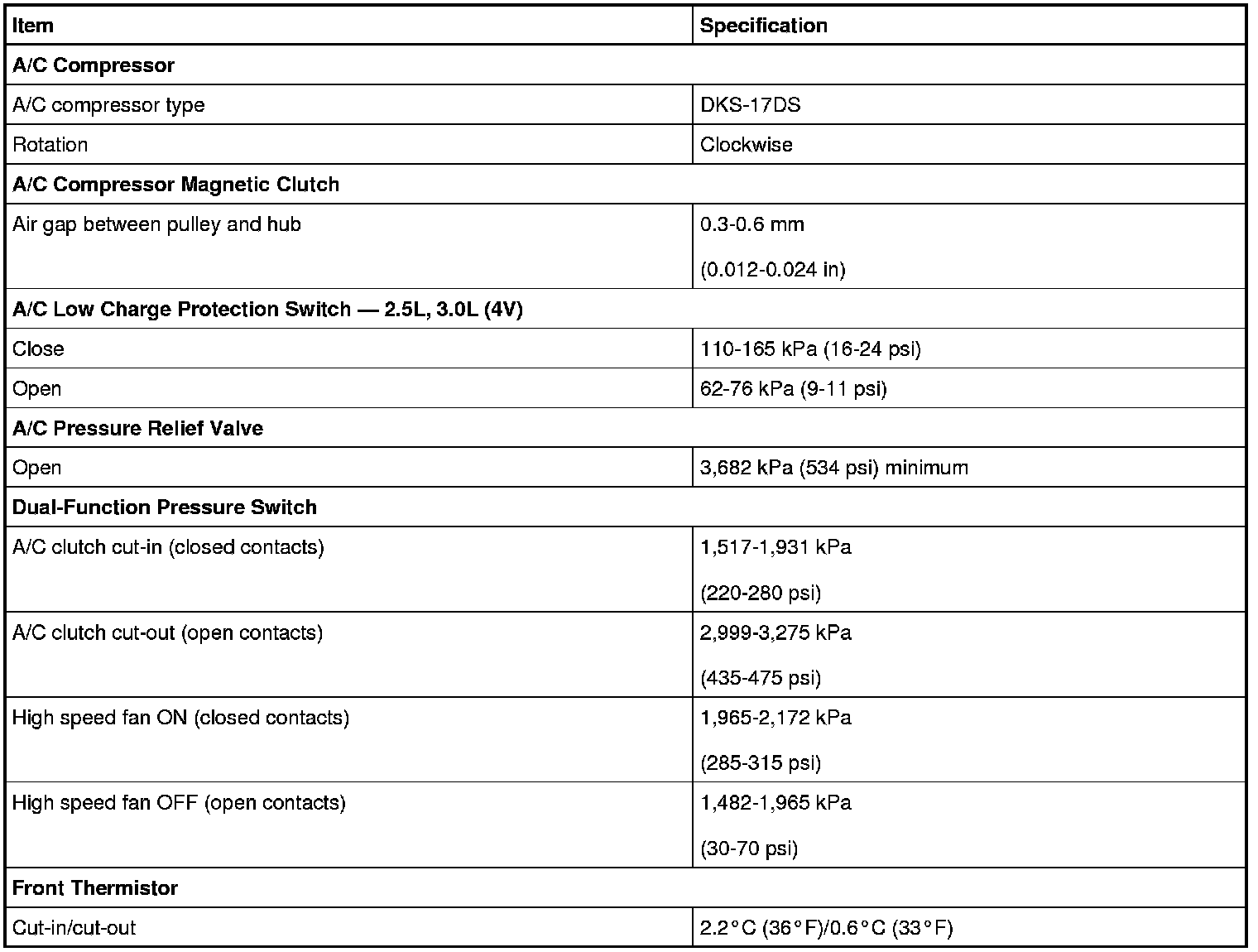

General Specifications
NOTE:
The General Specifications apply to non-hybrid vehicles only.
