System Specifications




Specifications

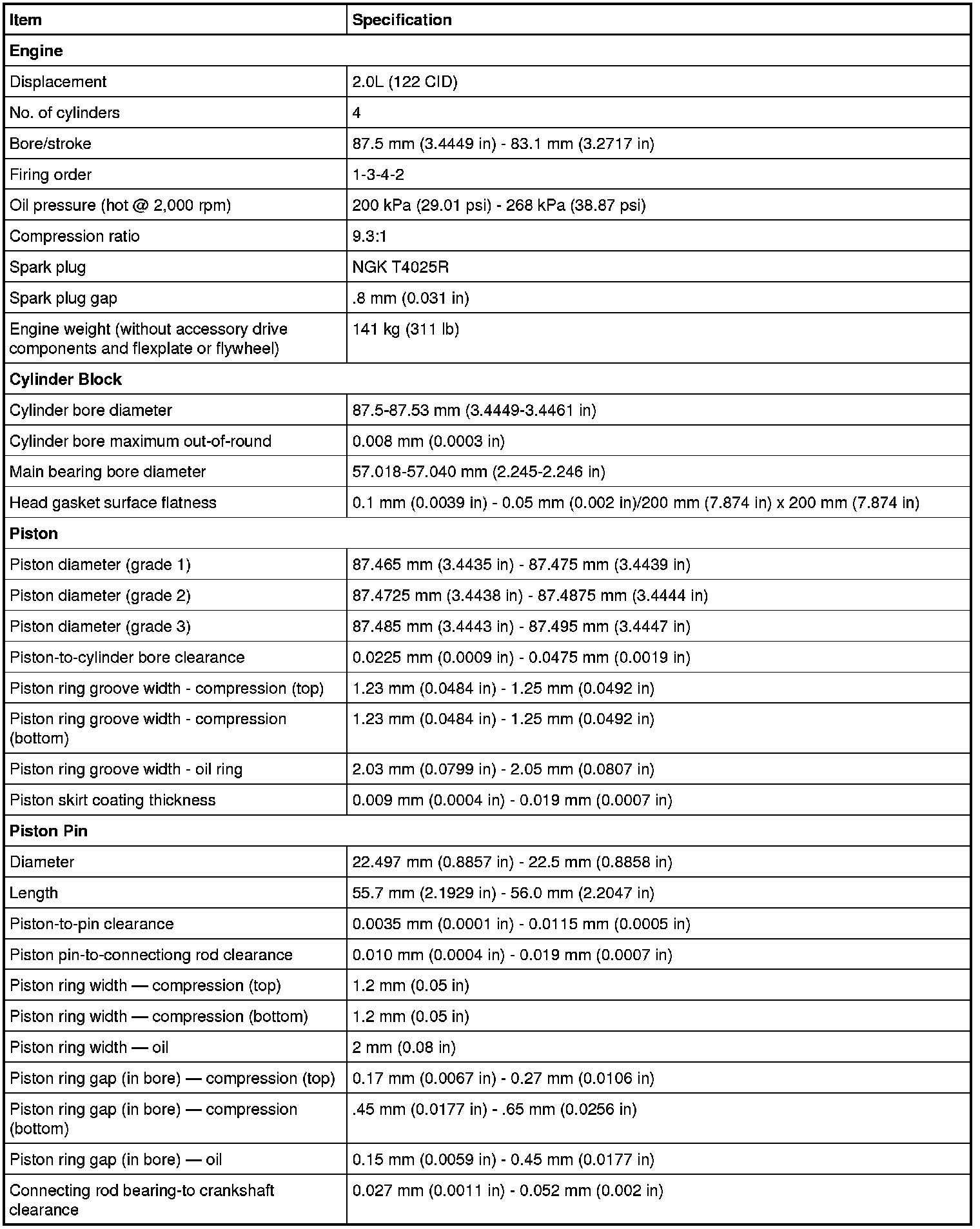

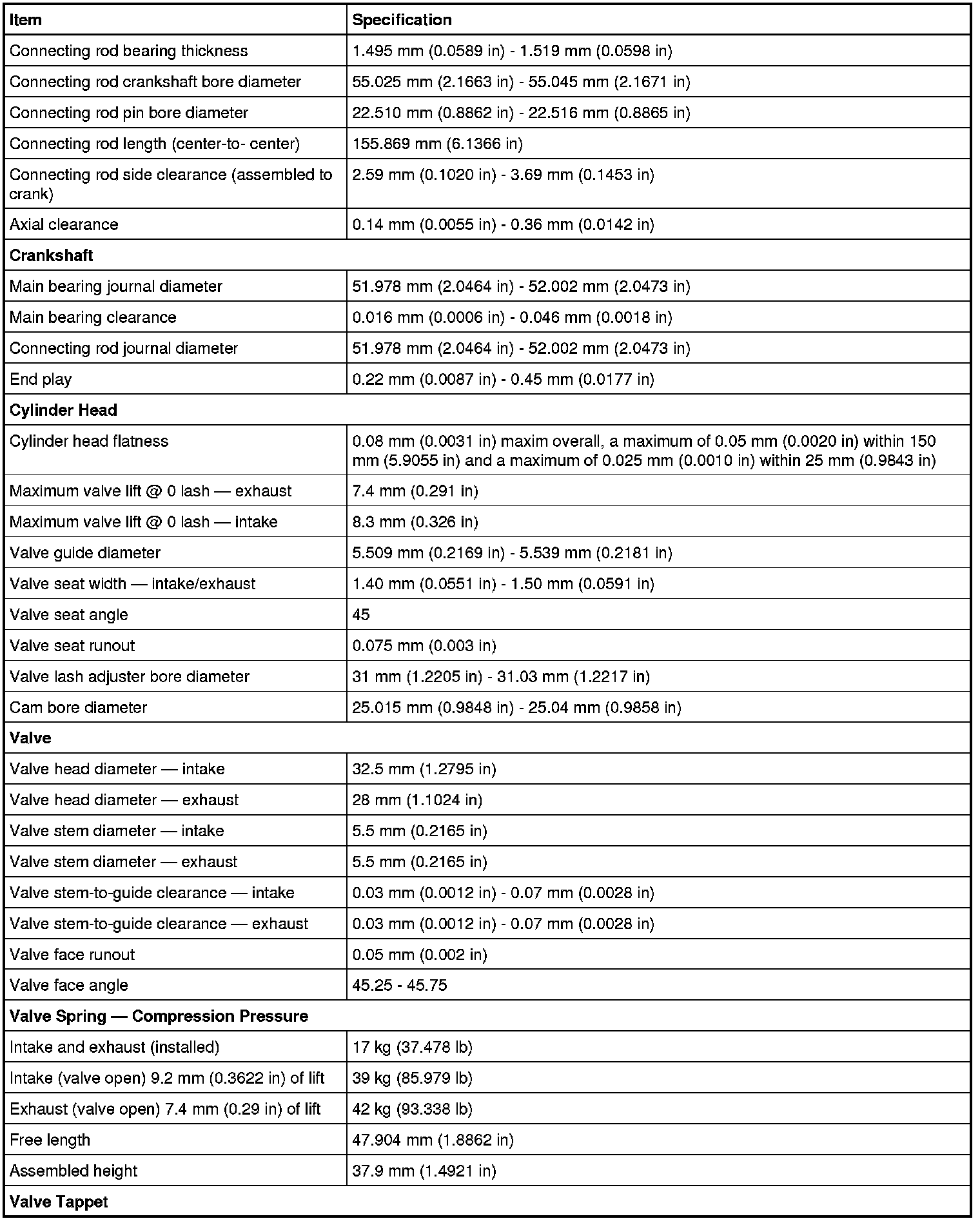

General Specifications

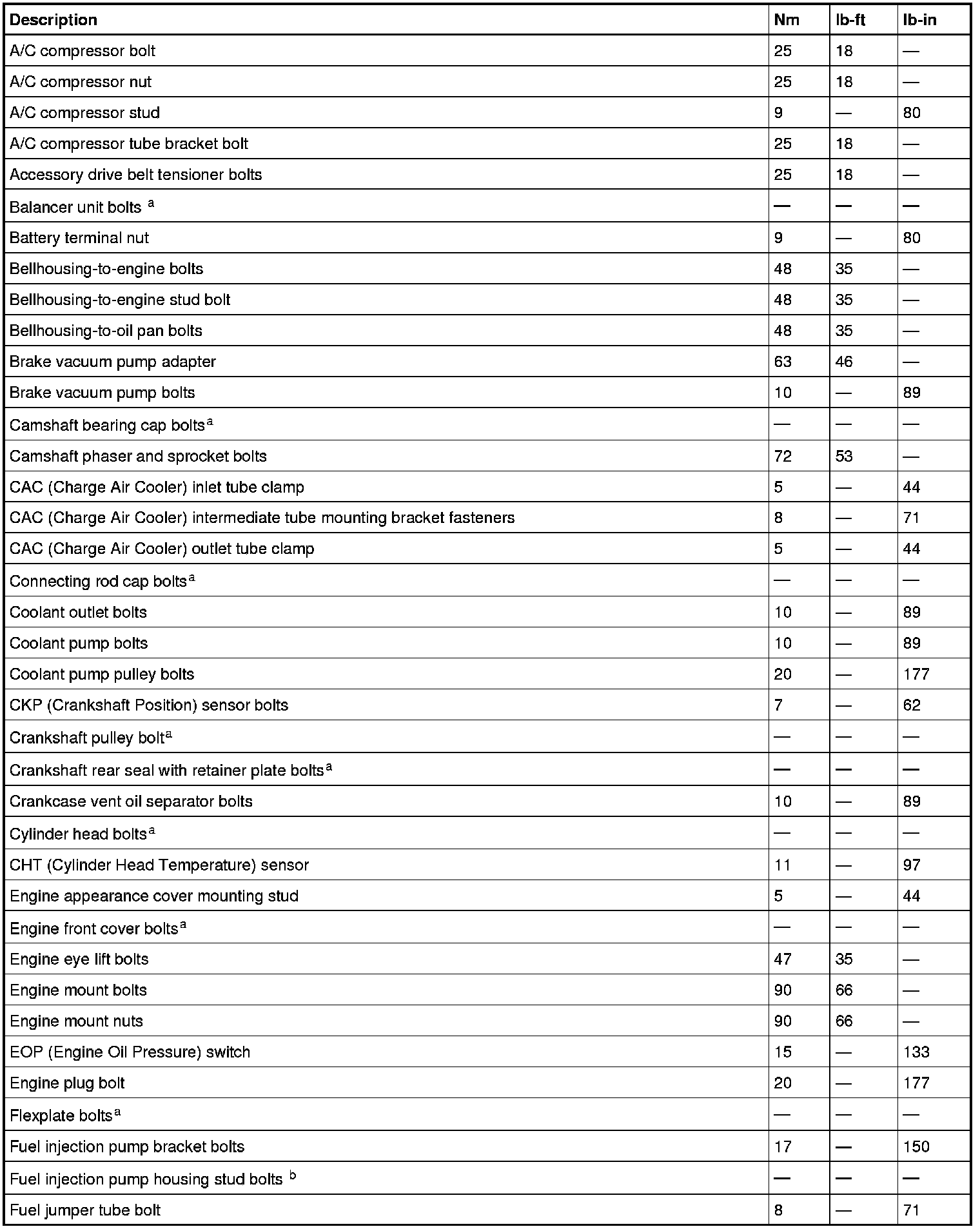

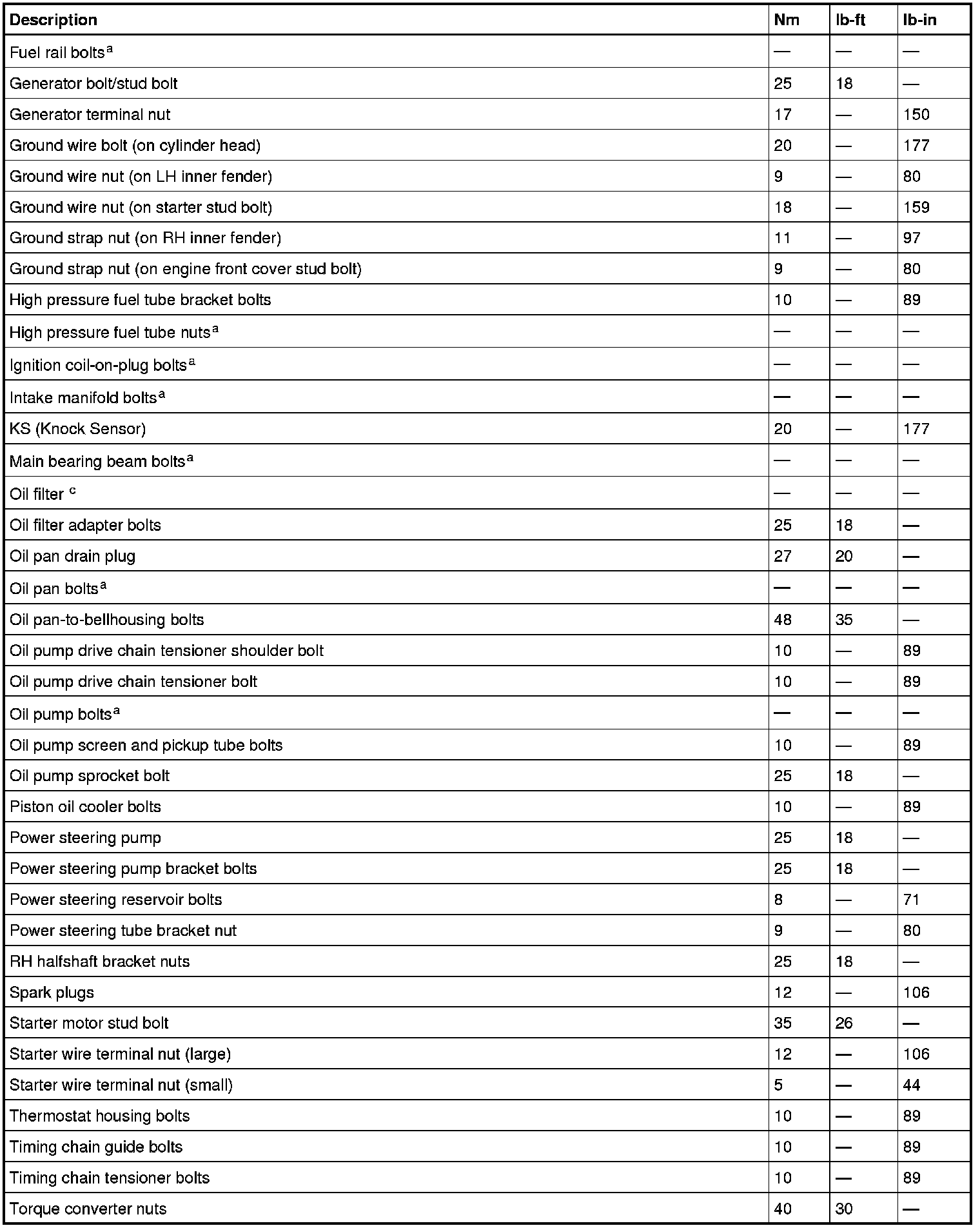

Torque Specifications













a Refer to the procedure in Engine.

b 15 Nm plus an additional 60 degrees

c 8 Nm plus an additional 180 degrees
