Home
>>
Ford Truck
>>
2010
>>
Explorer AWD V6-4.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Auxiliary Step / Running Board
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
Diagnostic Trouble Code Tests and Associated Procedures
Power Running Board (PRB)
DTC Chart

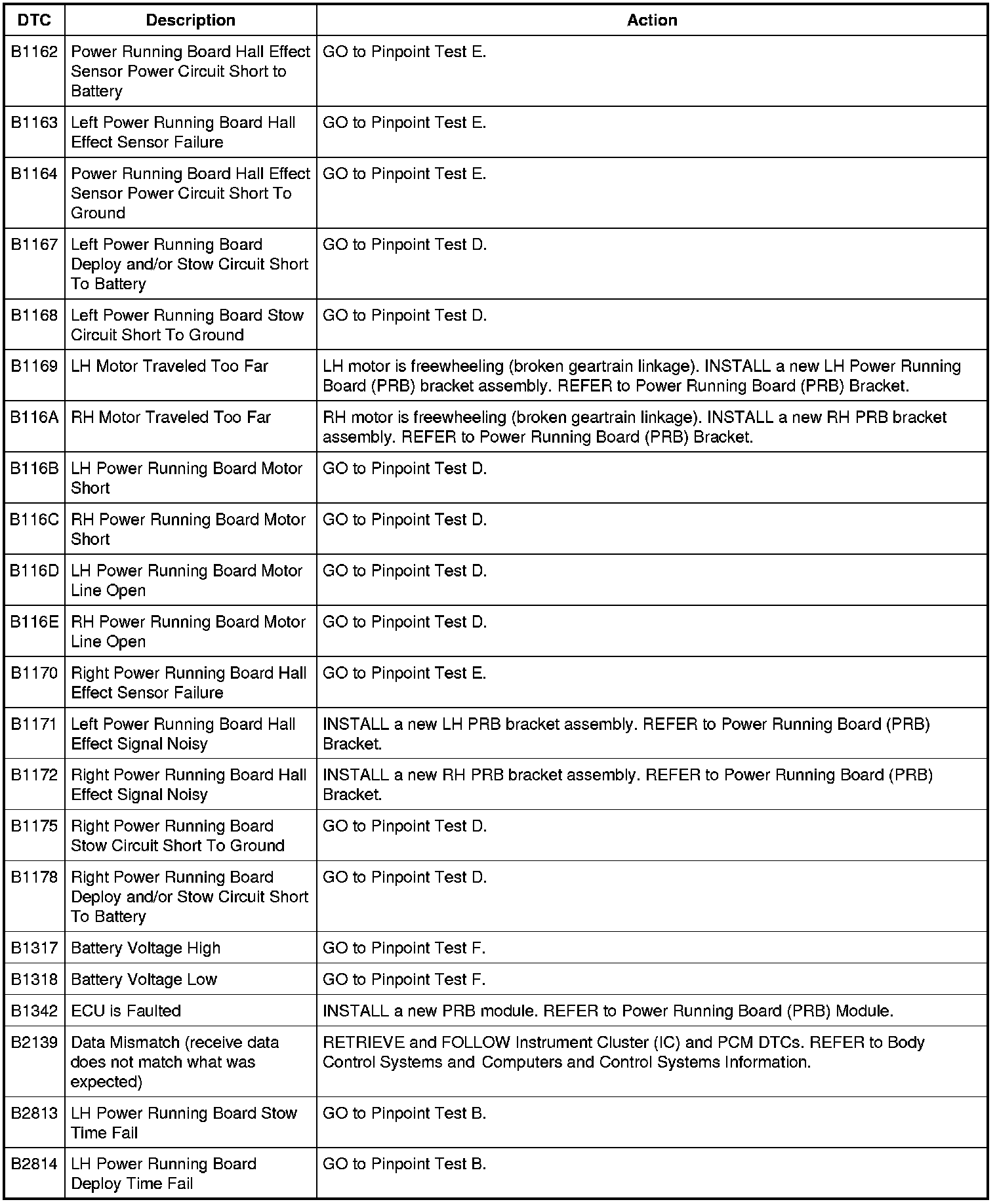

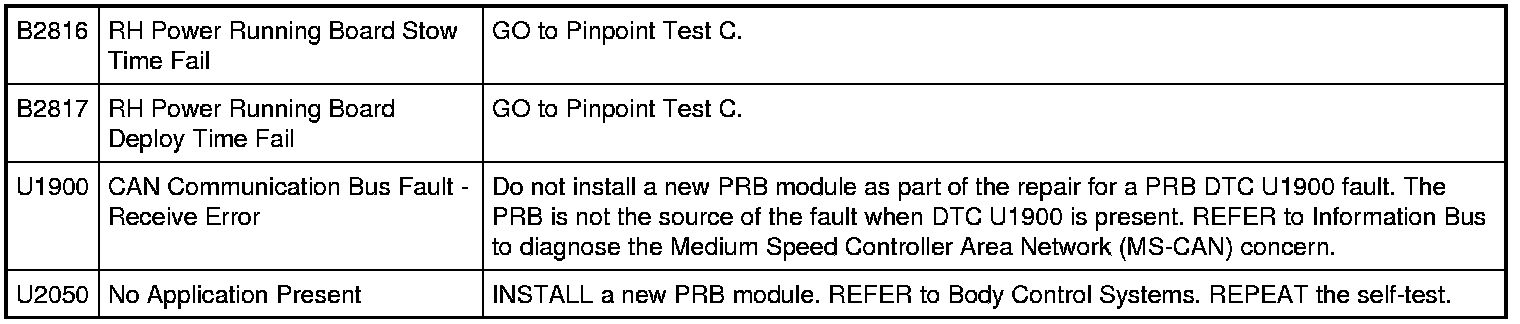

Power Running Board (PRB) Module DTC Chart
