Test AD: Powertrain Control Module (PCM) Reset

PINPOINT TEST AD: POWERTRAIN CONTROL MODULE (PCM) RESET

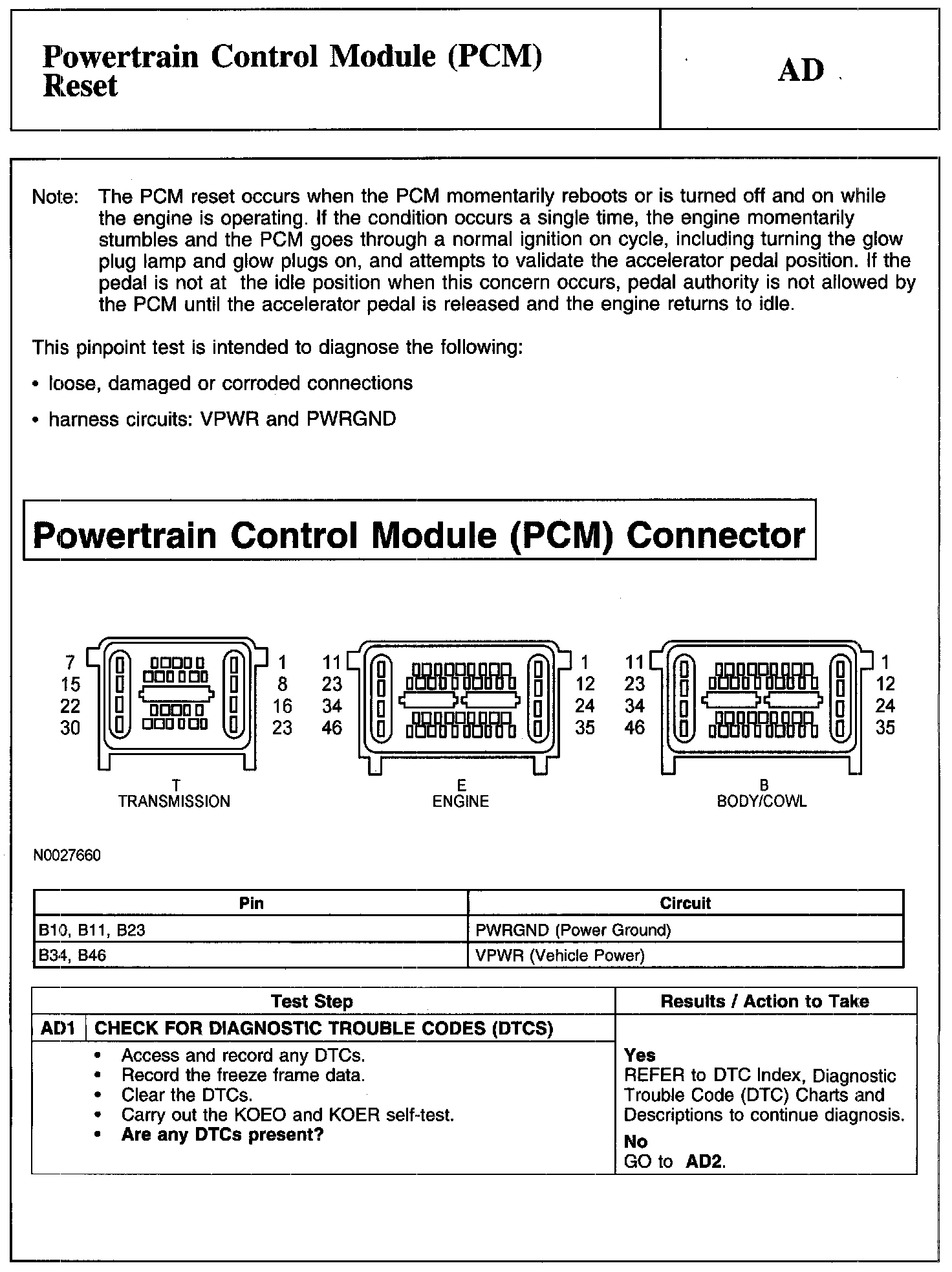

AD1:

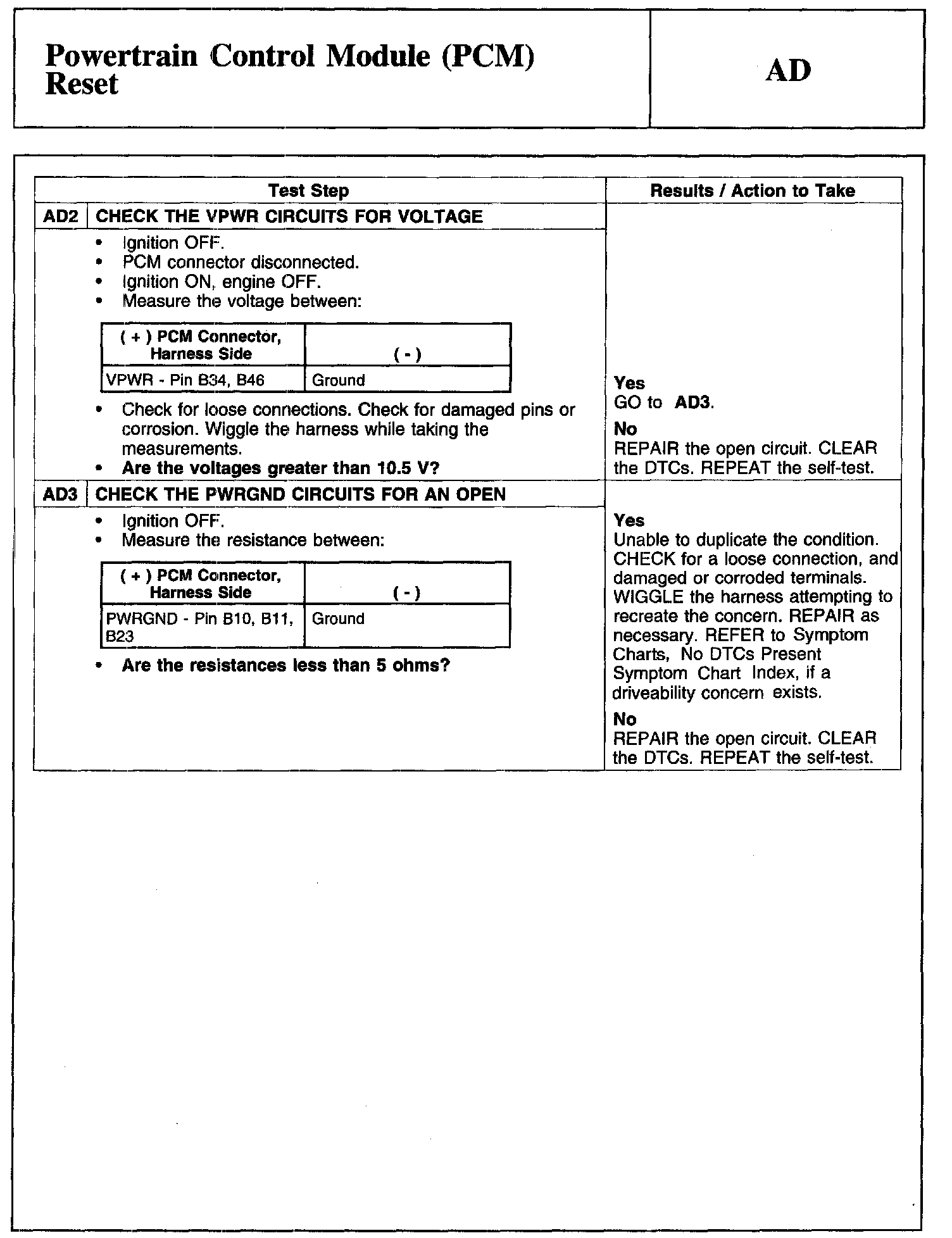

AD2-AD3:
