Seat Temperature Control Module




Seat - Exploded View, Front

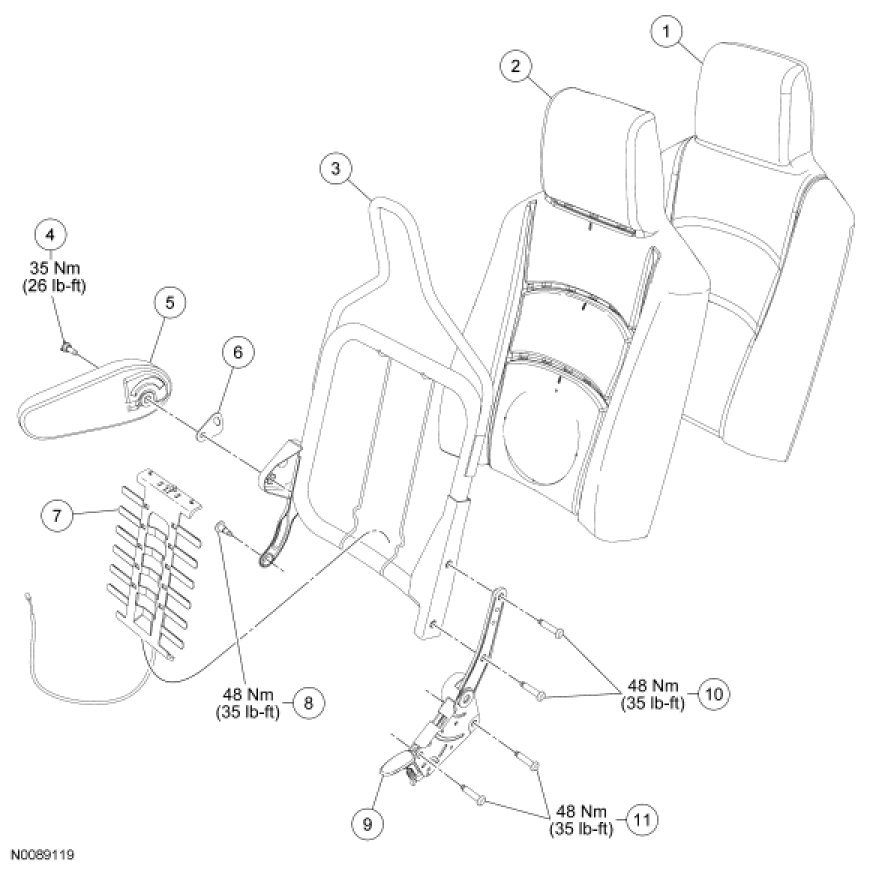

Seat Backrest

NOTE: LH shown, RH similar.

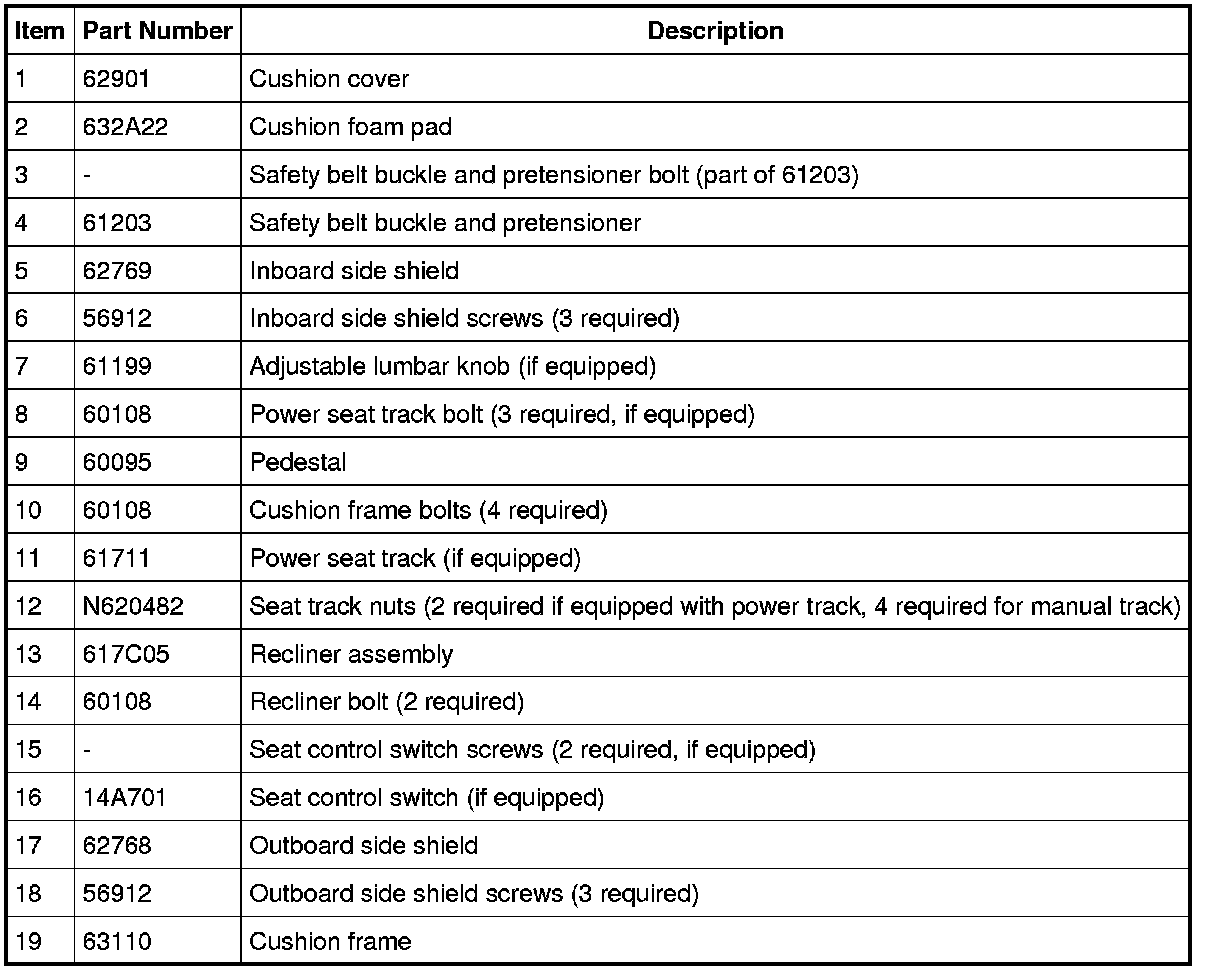

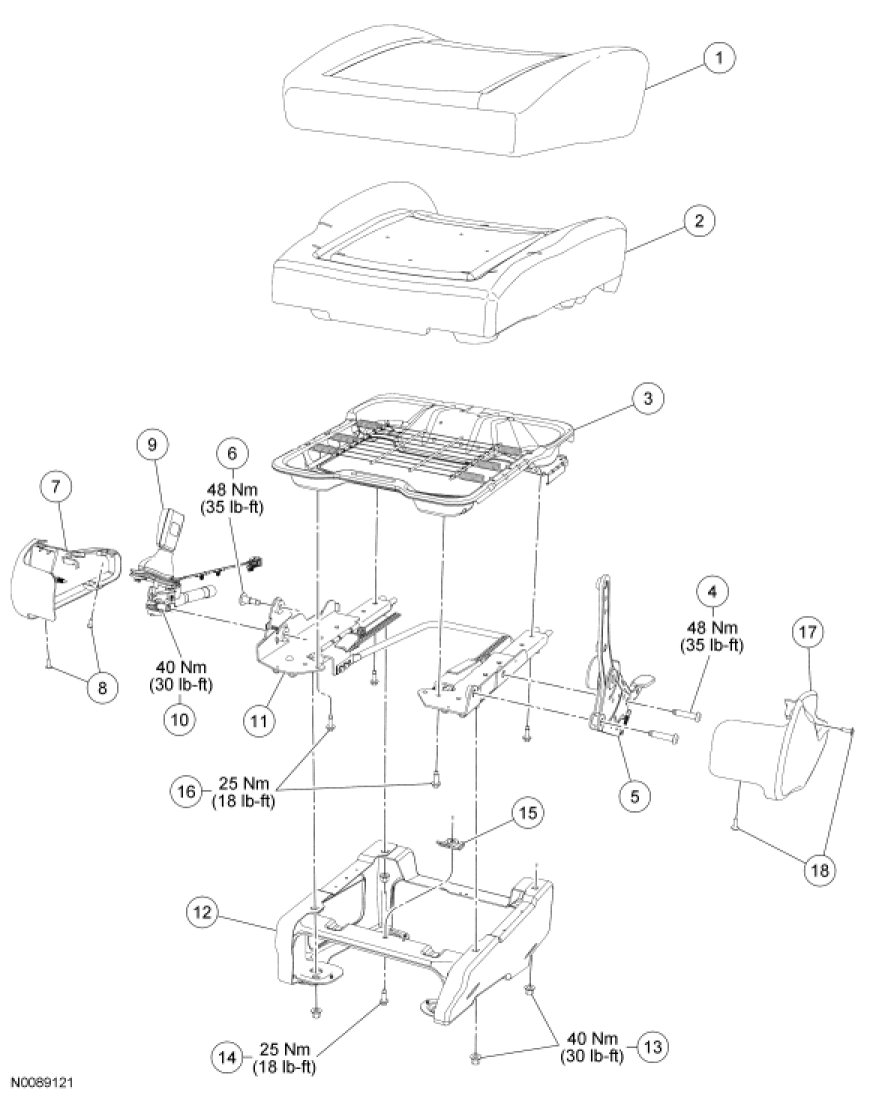

Seat Cushion - Driver

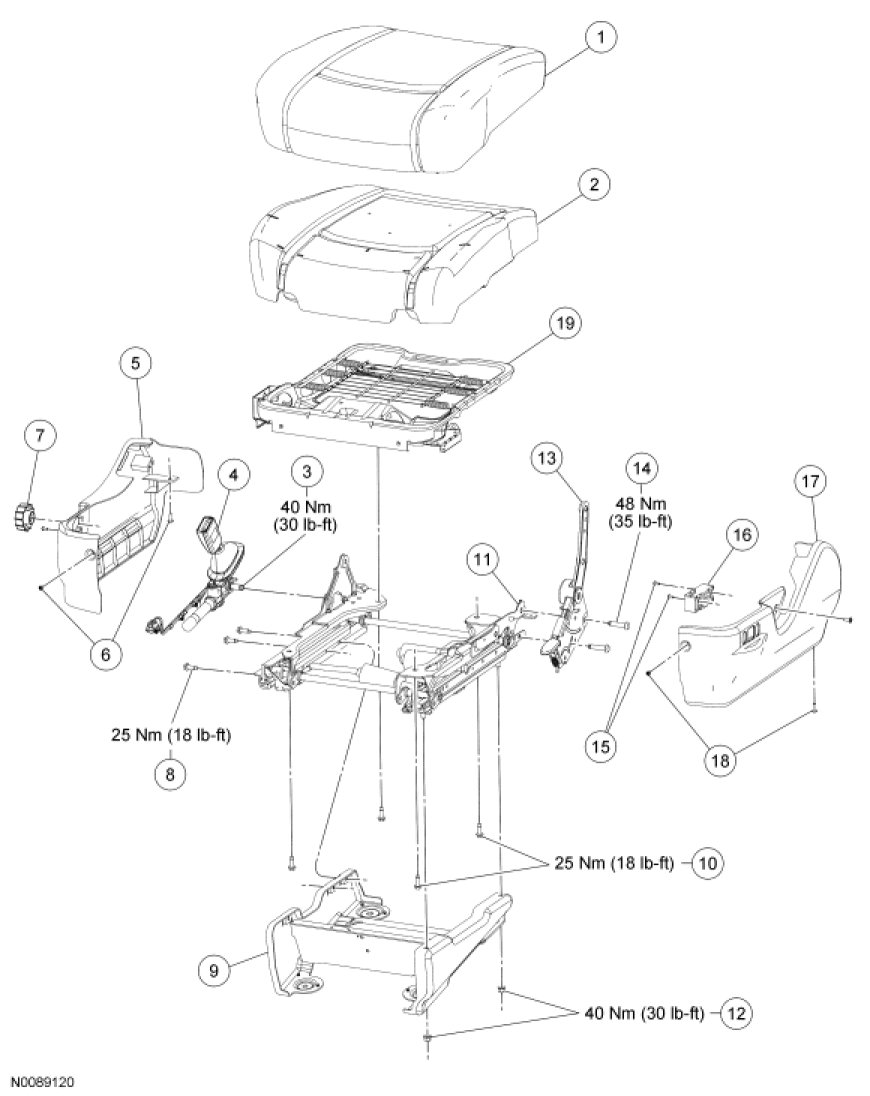

Seat Cushion - Front Passenger
