Tests AD: Powertrain Control Module (PCM) Reset
Tests AD: Powertrain Control Module (PCM) Reset
PINPOINT TEST AD: POWERTRAIN CONTROL MODULE (PCM) RESET

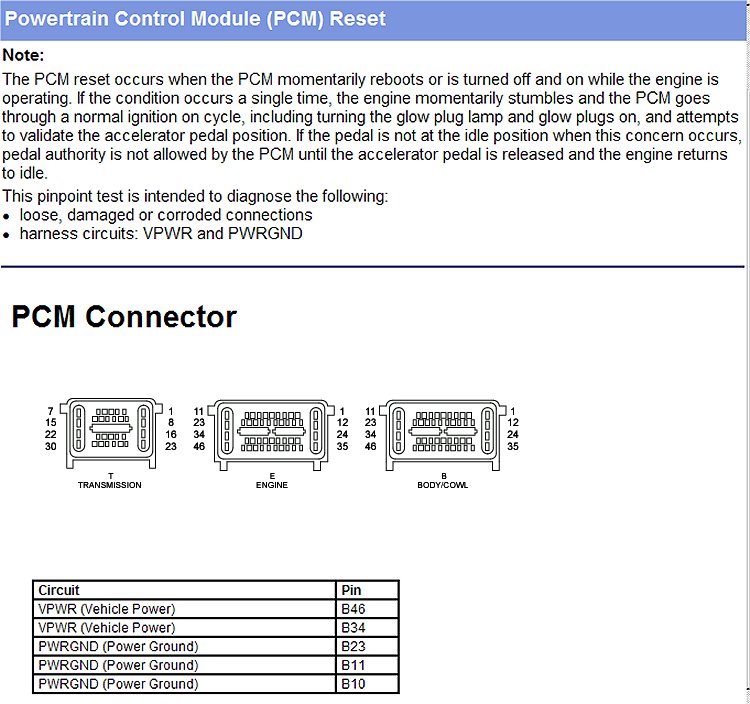

Pinpoint Test AD: Introduction:

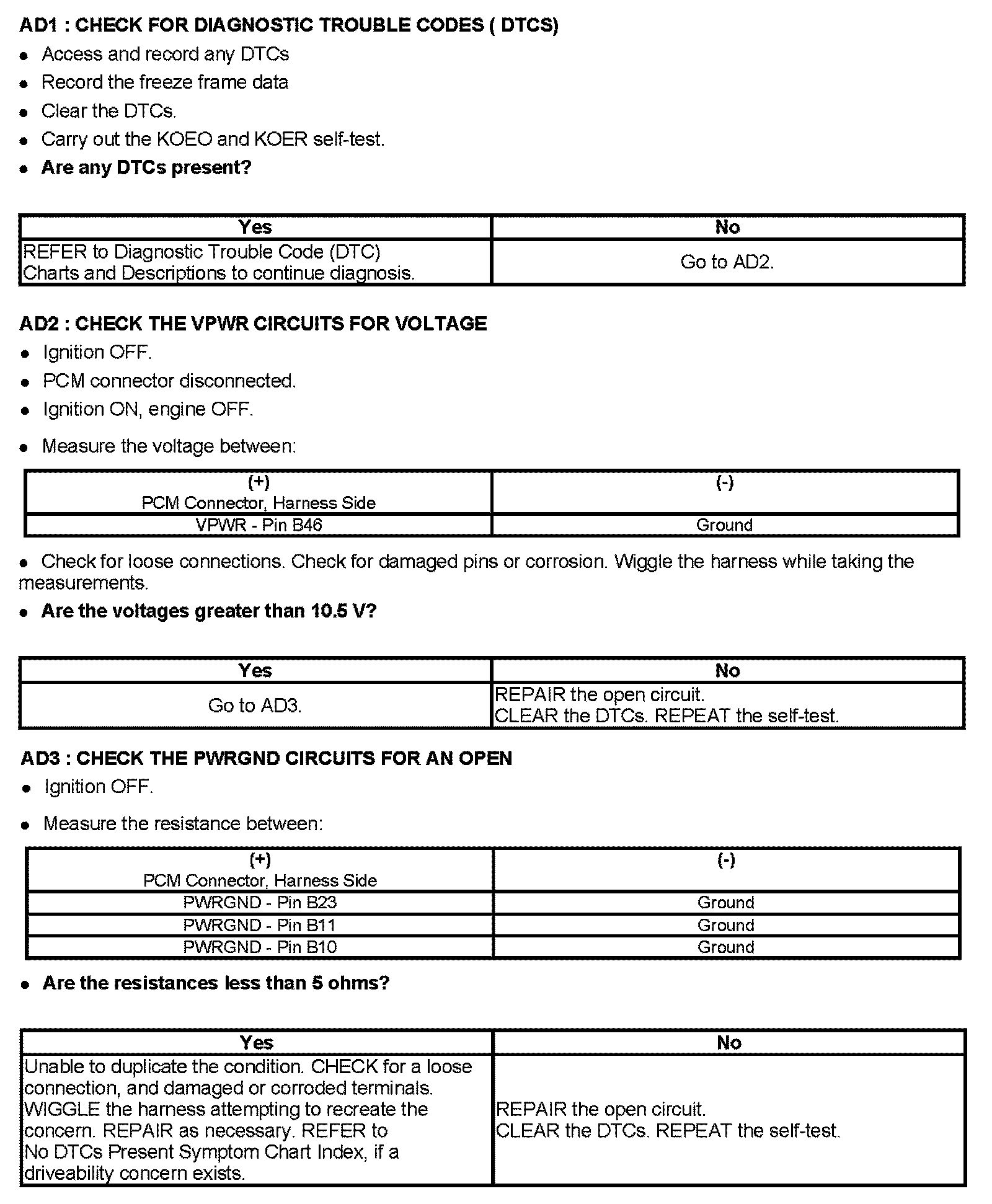

AD1-AD3:
