Home >> Ford Truck >> 2007 >> F 150 4WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

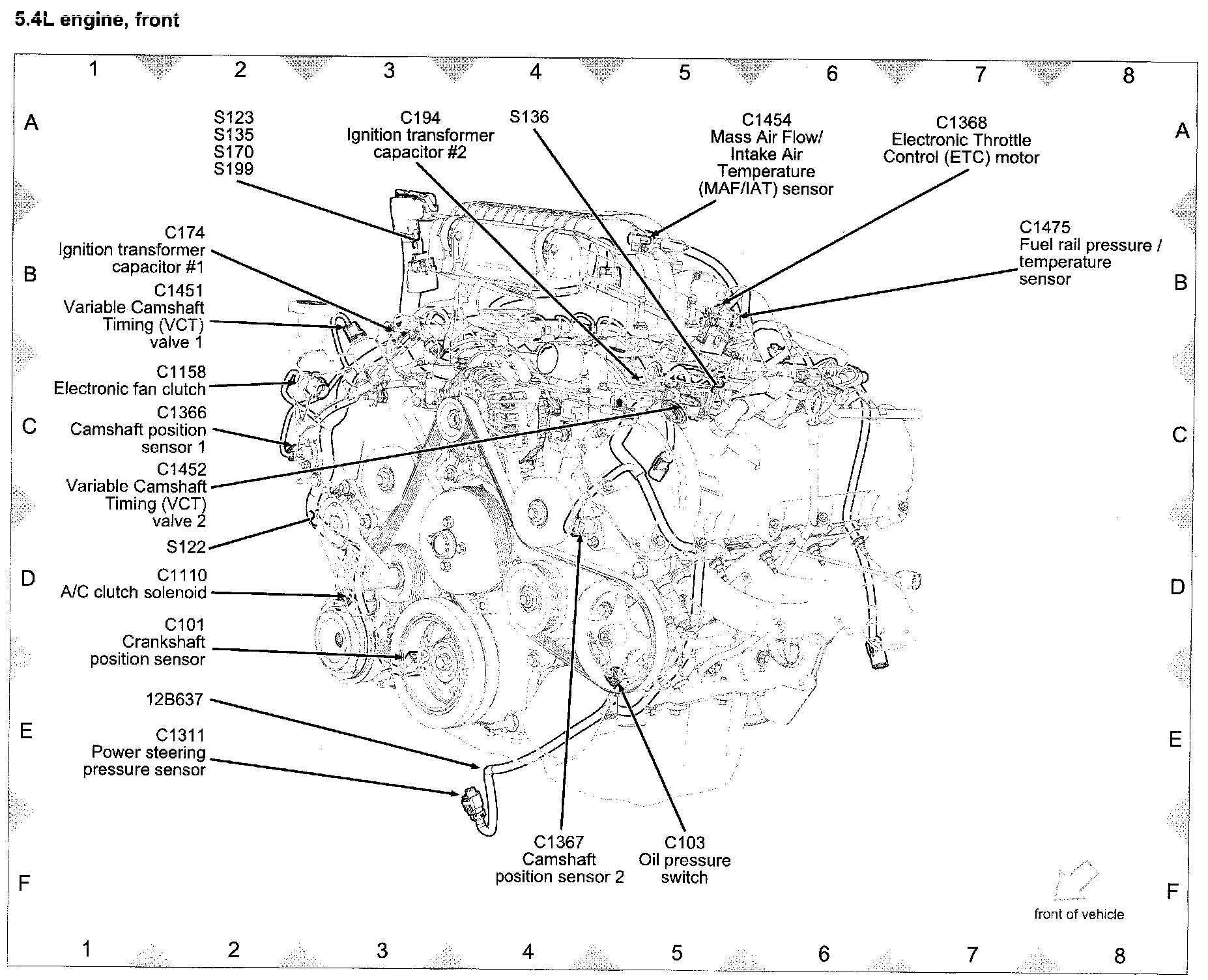

View 151-8 (5.4L Engine, Front):
