Shock Absorber and Spring Assembly - Exploded View

Shock Absorber and Spring Assembly - Exploded View

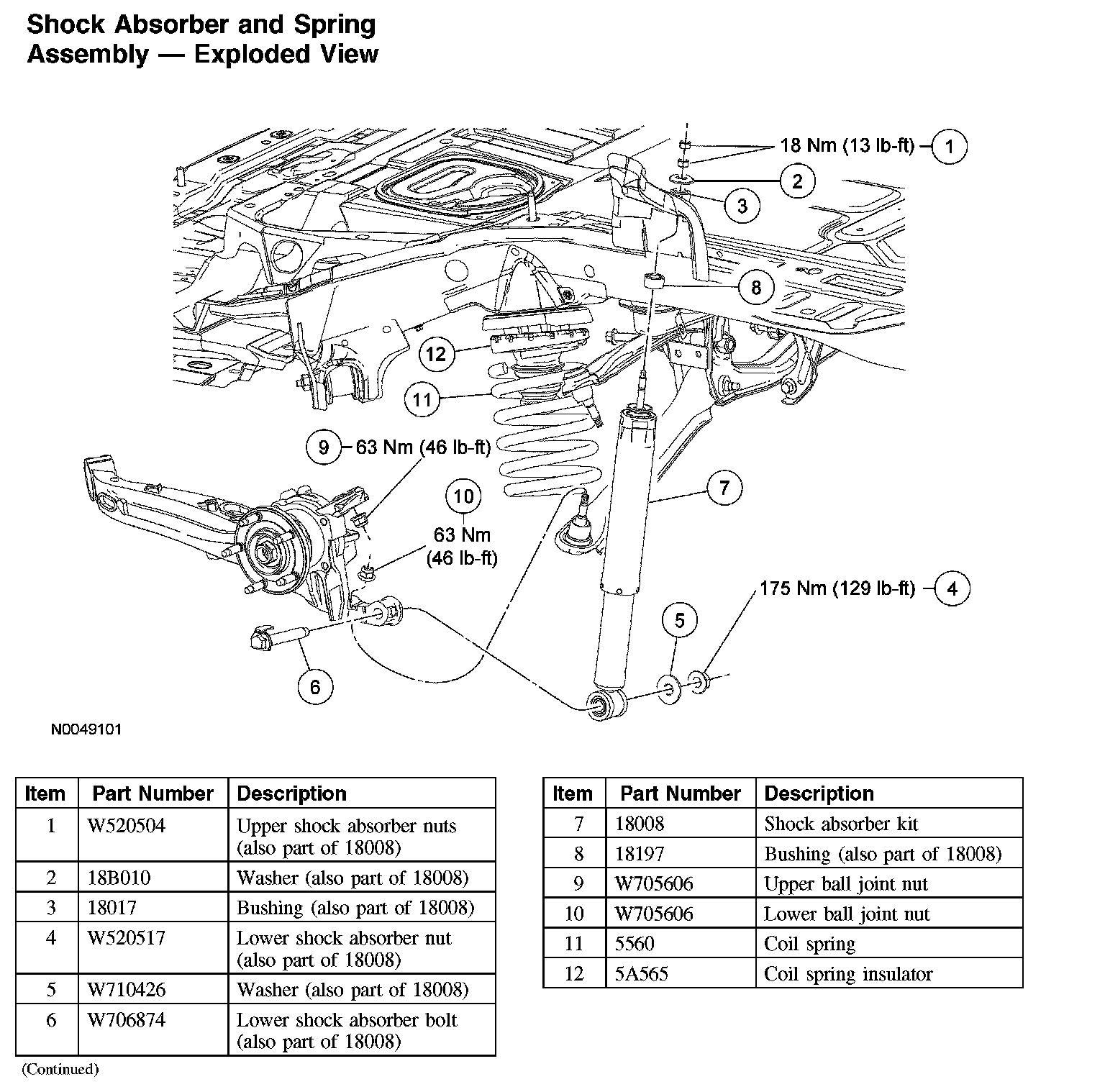

Shock Absorber And Spring Assembly - Exploded View:





Note: Fastener replacement may be required. Refer to Component Service and Repair for further information.
