Home >> Ford Truck >> 2005 >> Ranger 2WD V6-3.0L VIN U >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General Specifications >> Piston

Piston

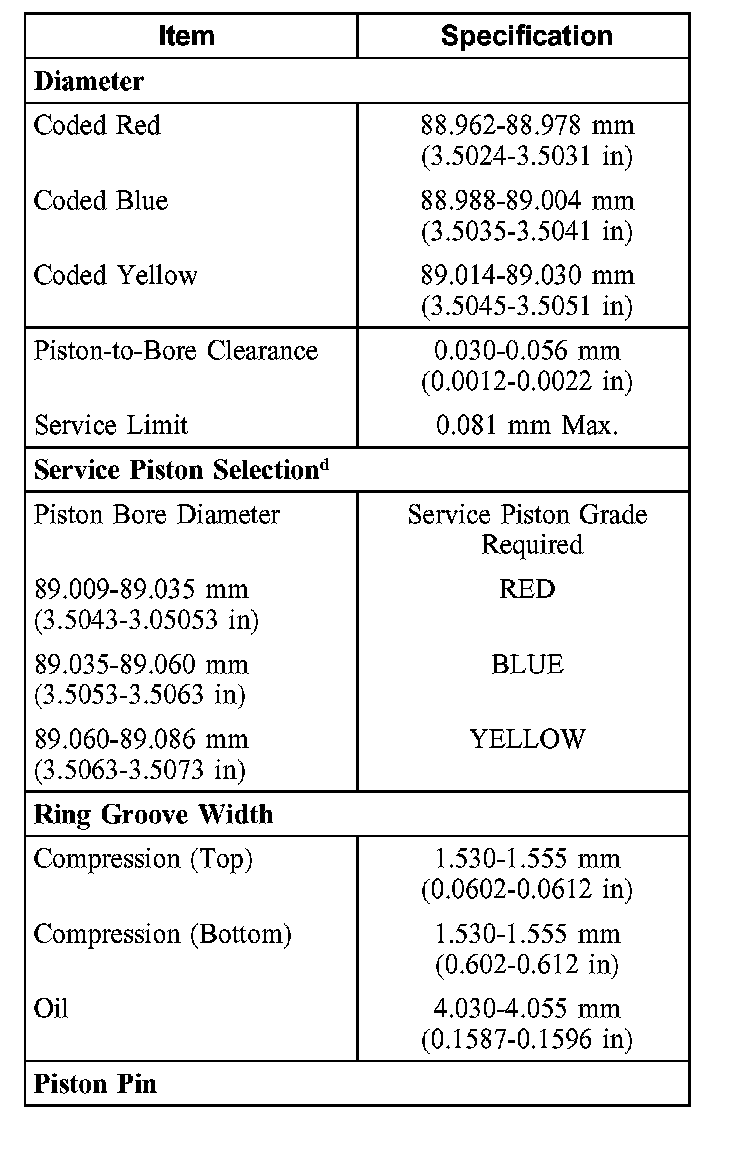

Piston General Specifications, Part 1:

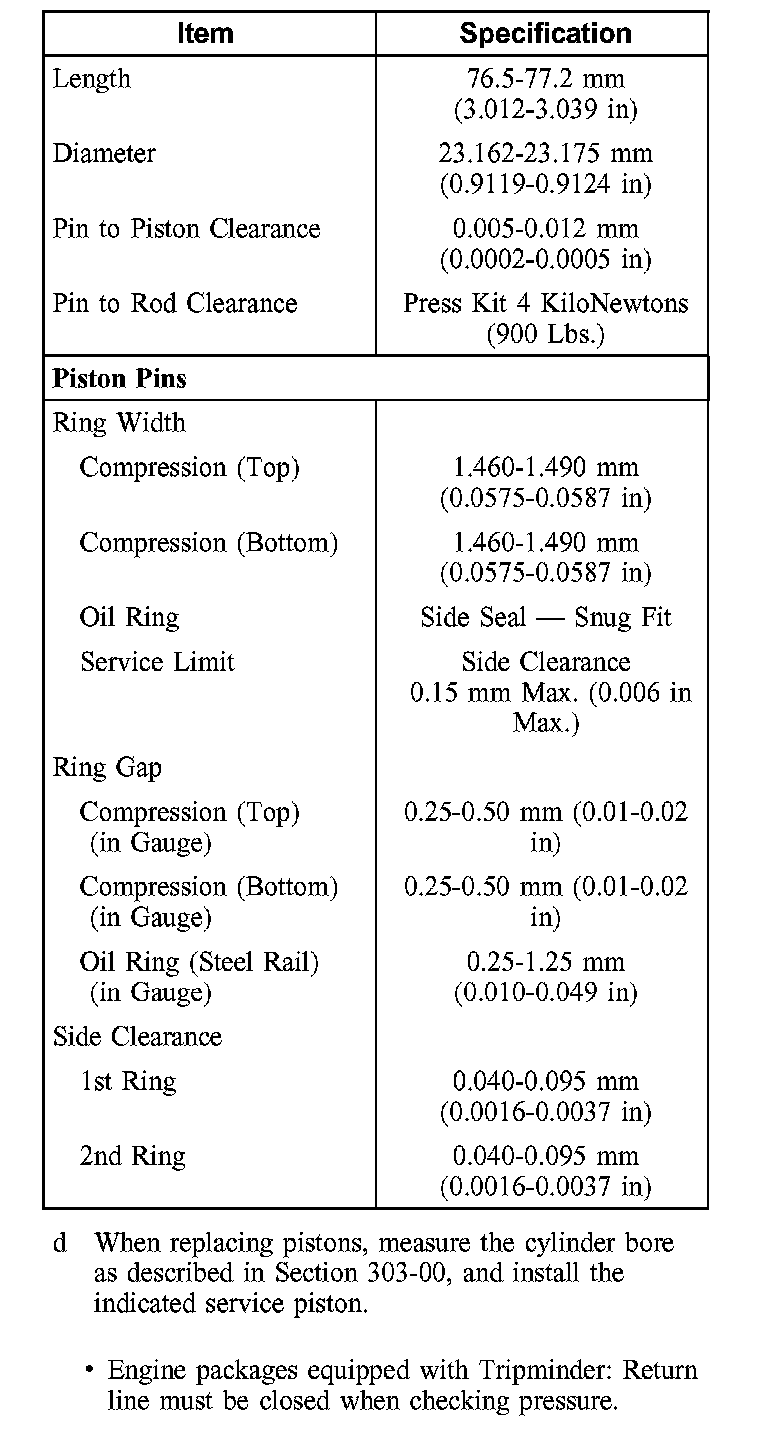

Piston General Specifications, Part 2:
