Manual Transmission/Transaxle

Disassembled View

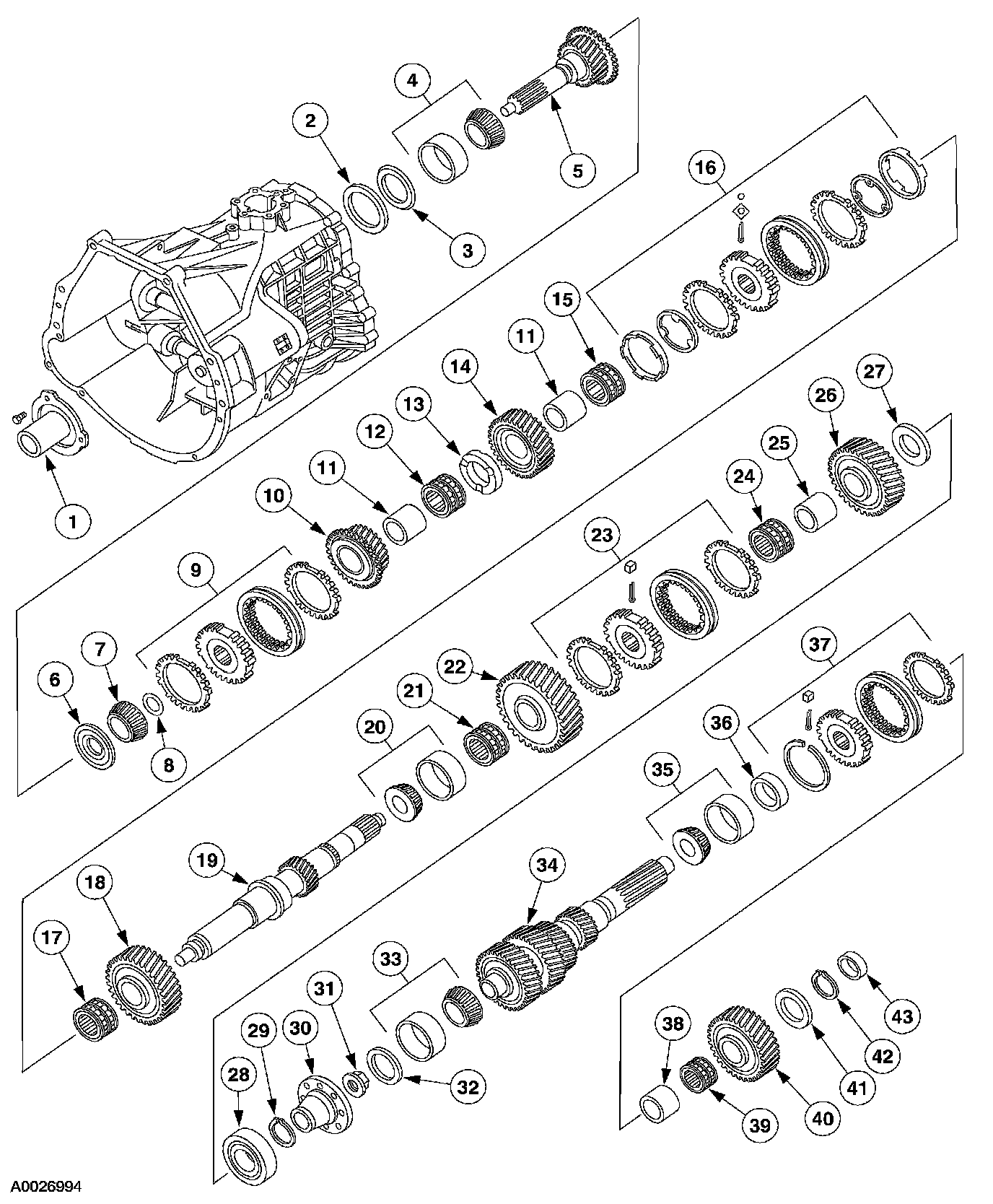

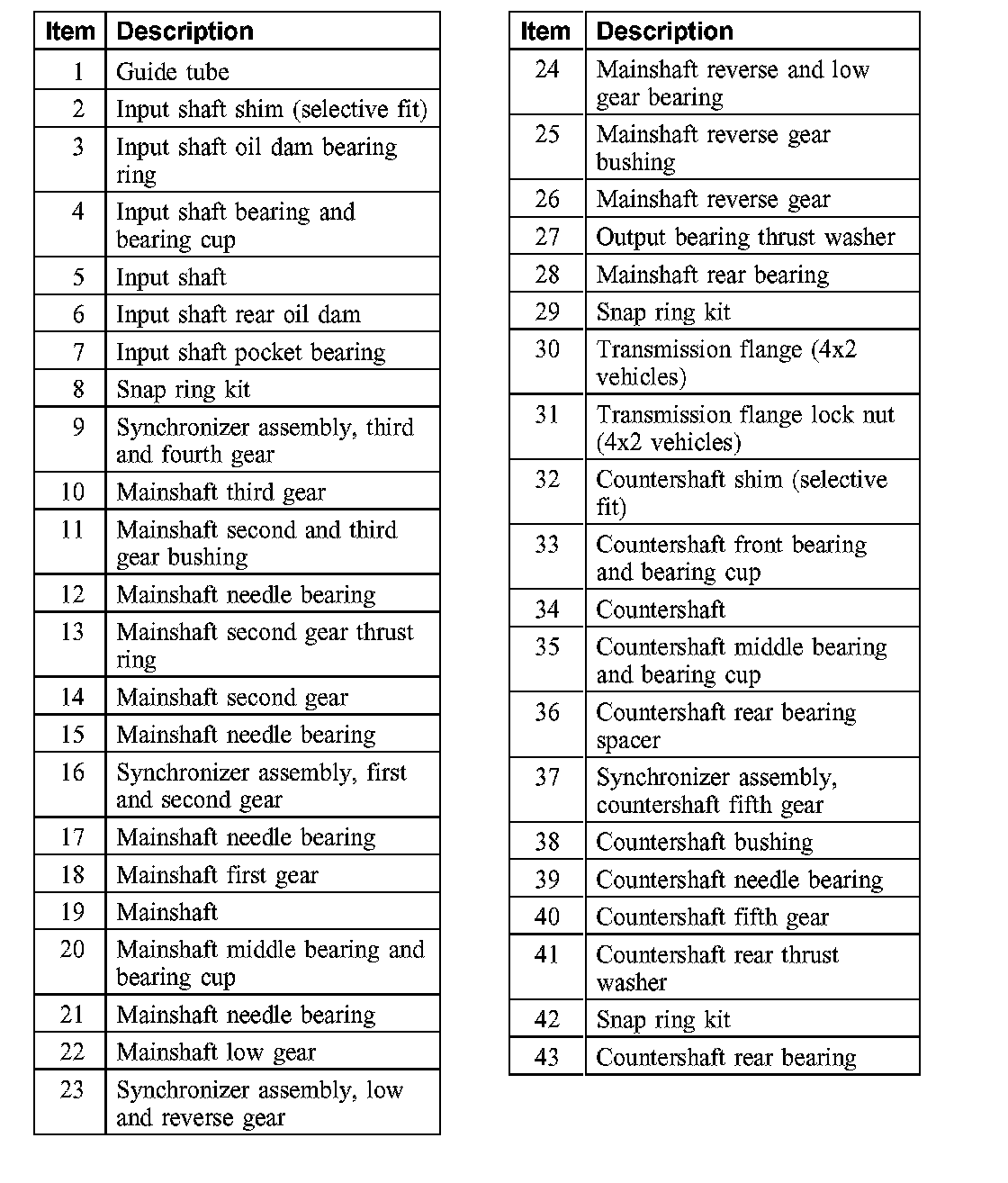

Transmission Internal Components-Disassembled View

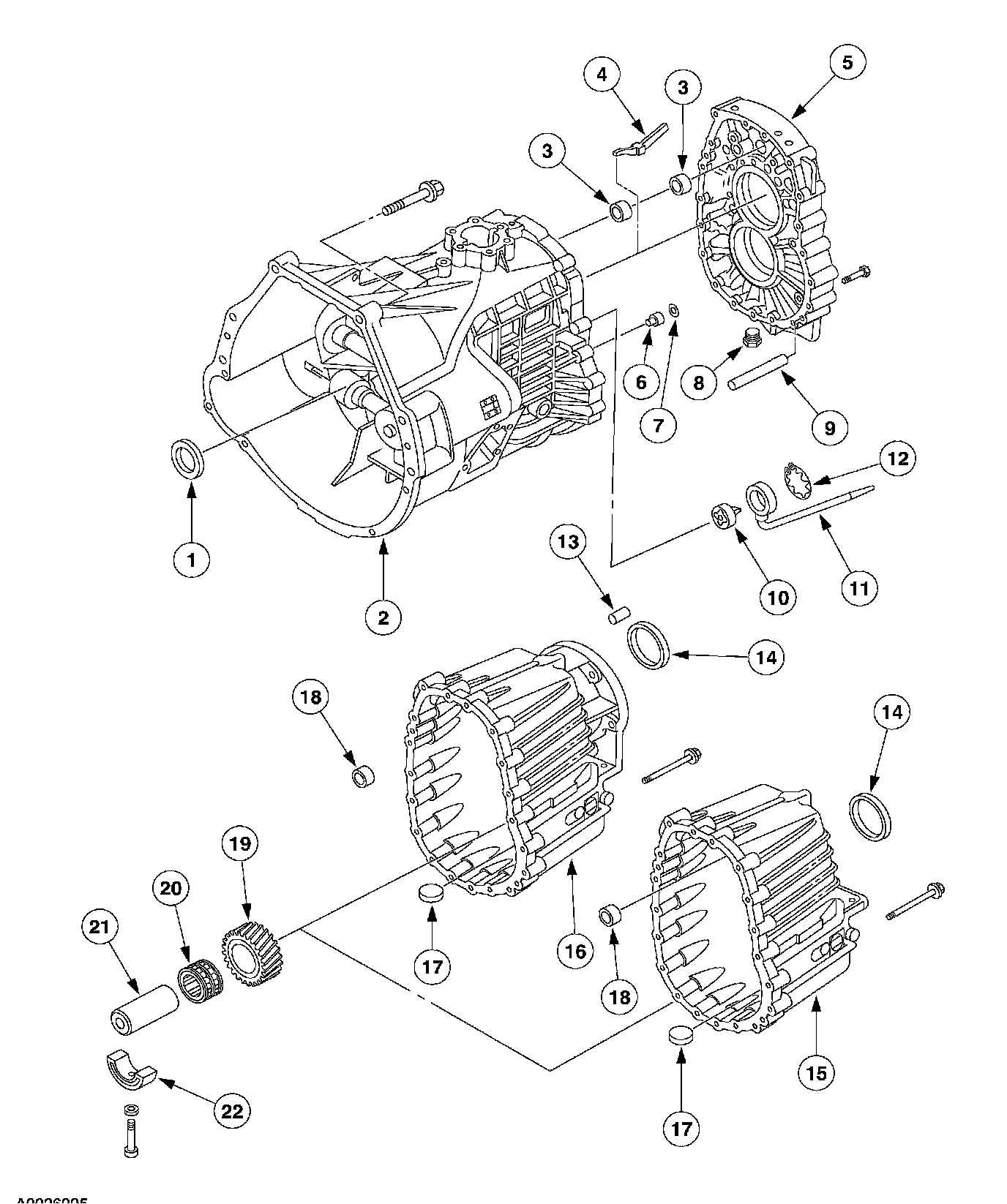

Transmission Internal Components-Disassembled View

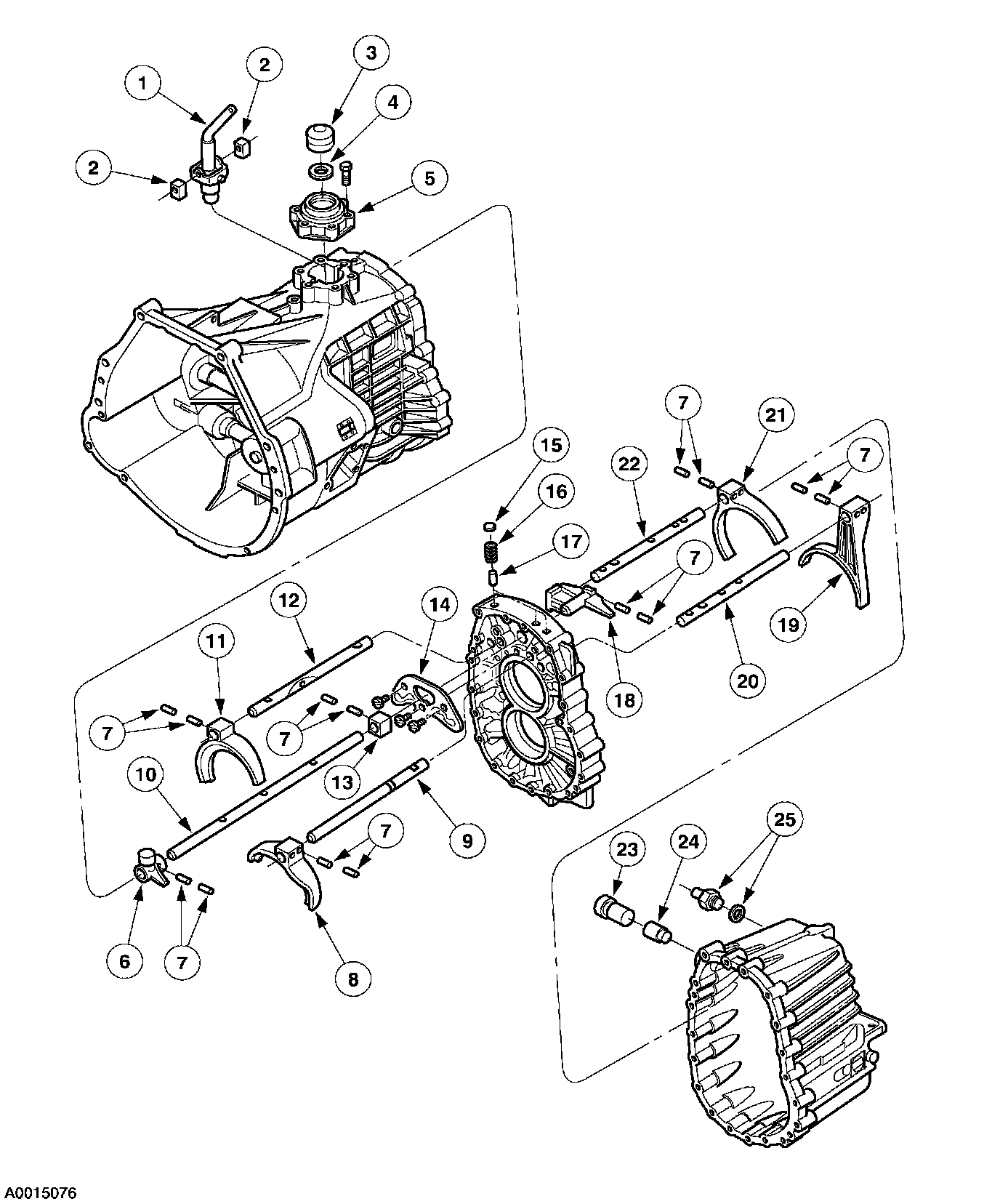

Transmission Shift Components - Disassembled View
