Home >> Ford Truck >> 2004 >> E 350 V10-6.8L VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations >> Powertrain Control Module (PCM)

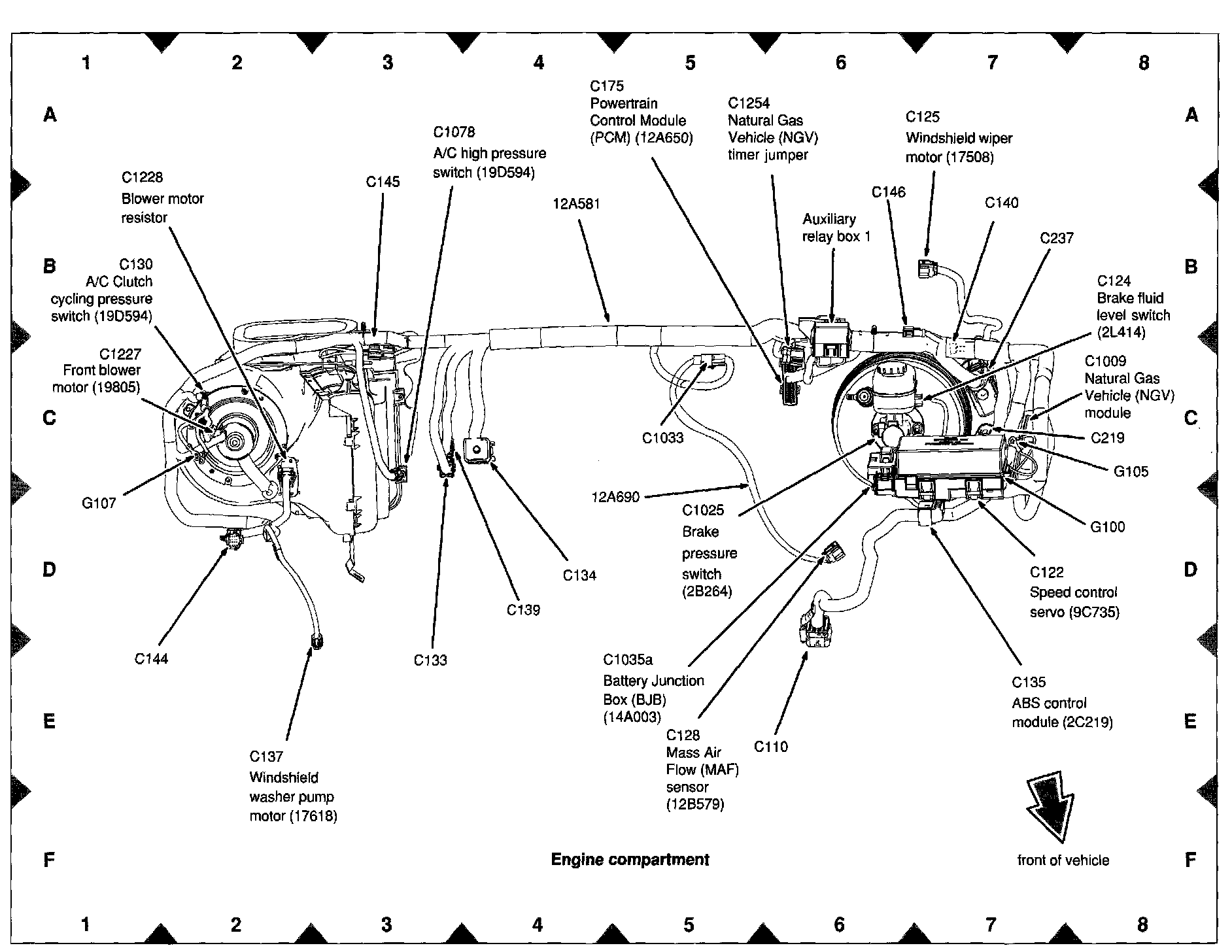

Powertrain Control Module (PCM)

View 151-2:
