Home >> Ford Truck >> 2001 >> Ranger 2WD V6-3.0L VIN U >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque >> General Torque Specifications

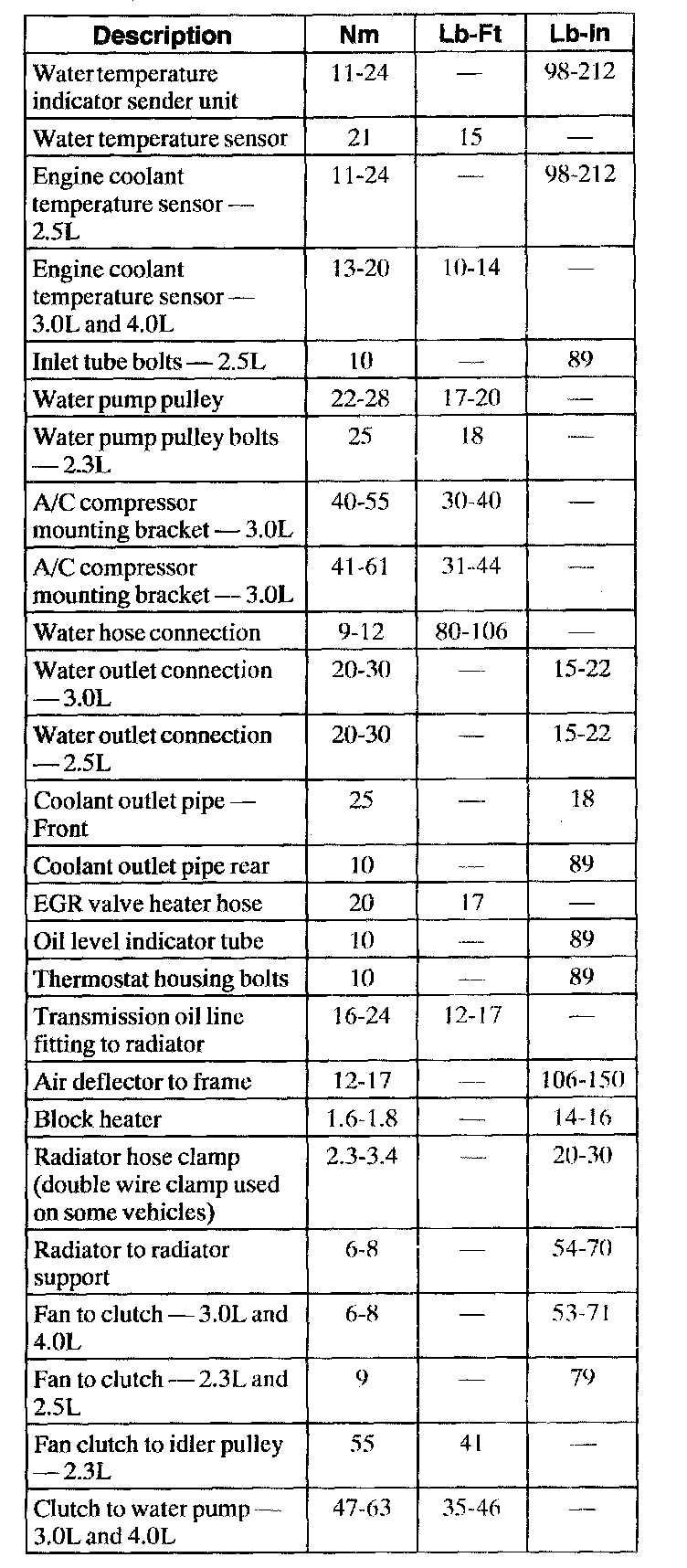

General Torque Specifications

Torque Specifications






























Footnote:

a -- Refer to the applicable service and repair procedure for the tightening specification and/or sequence.
