Home >> Ford Truck >> 2001 >> Explorer Sport 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Central Security Module

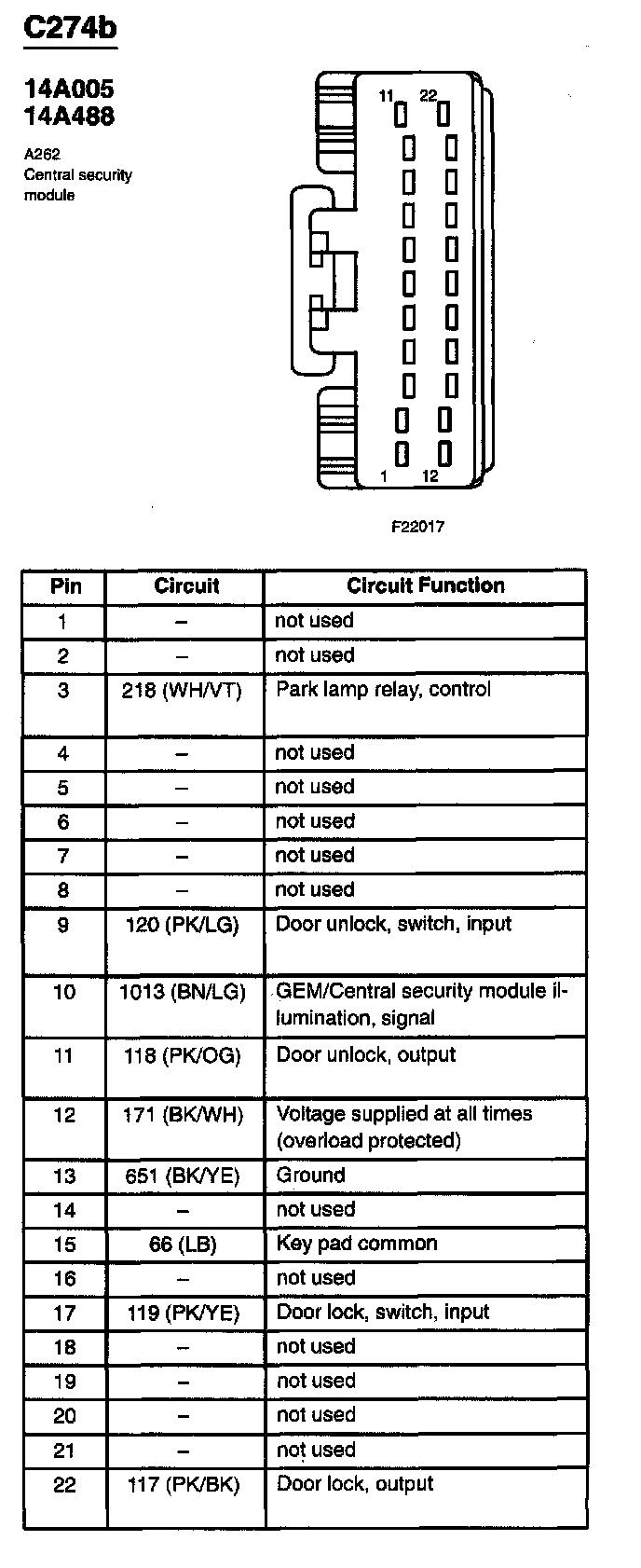

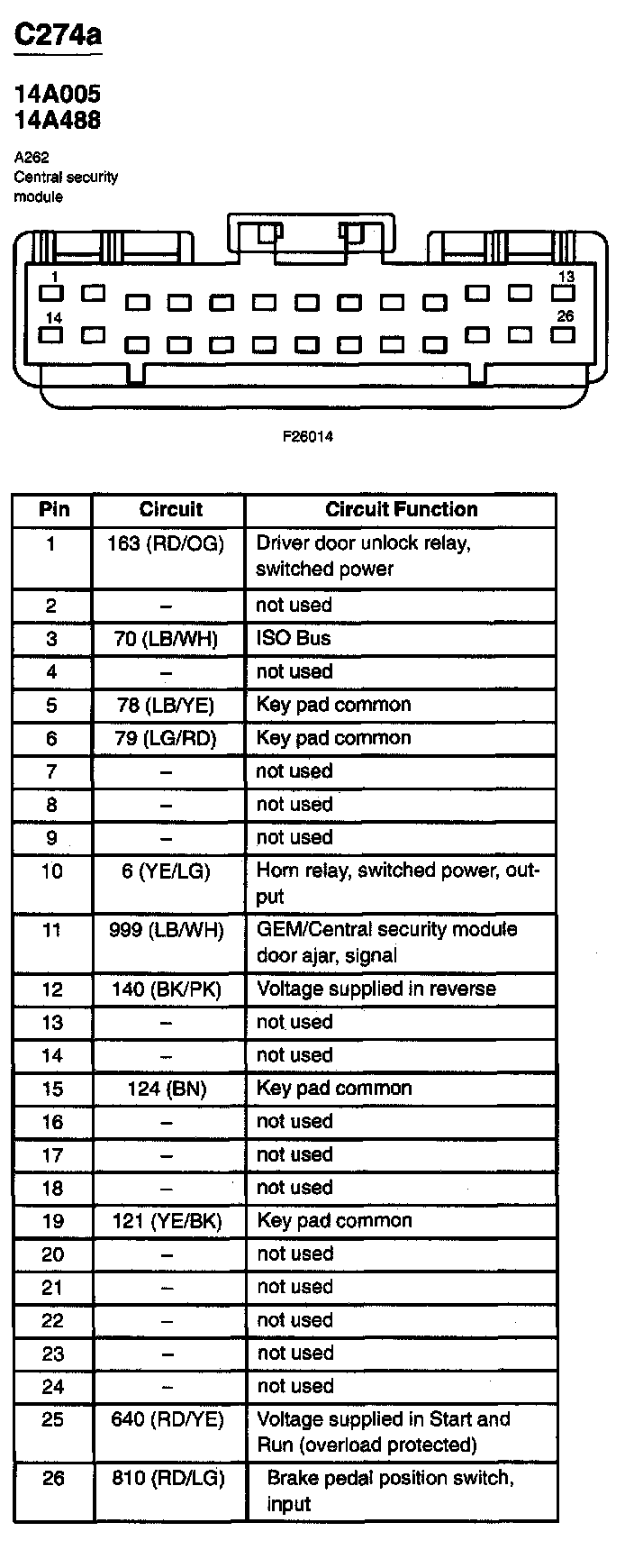

Central Security Module

Vehicles Built AFTER 7/24/2000
