Home >> Ford Truck >> 2001 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test K: No Module/Network Communication

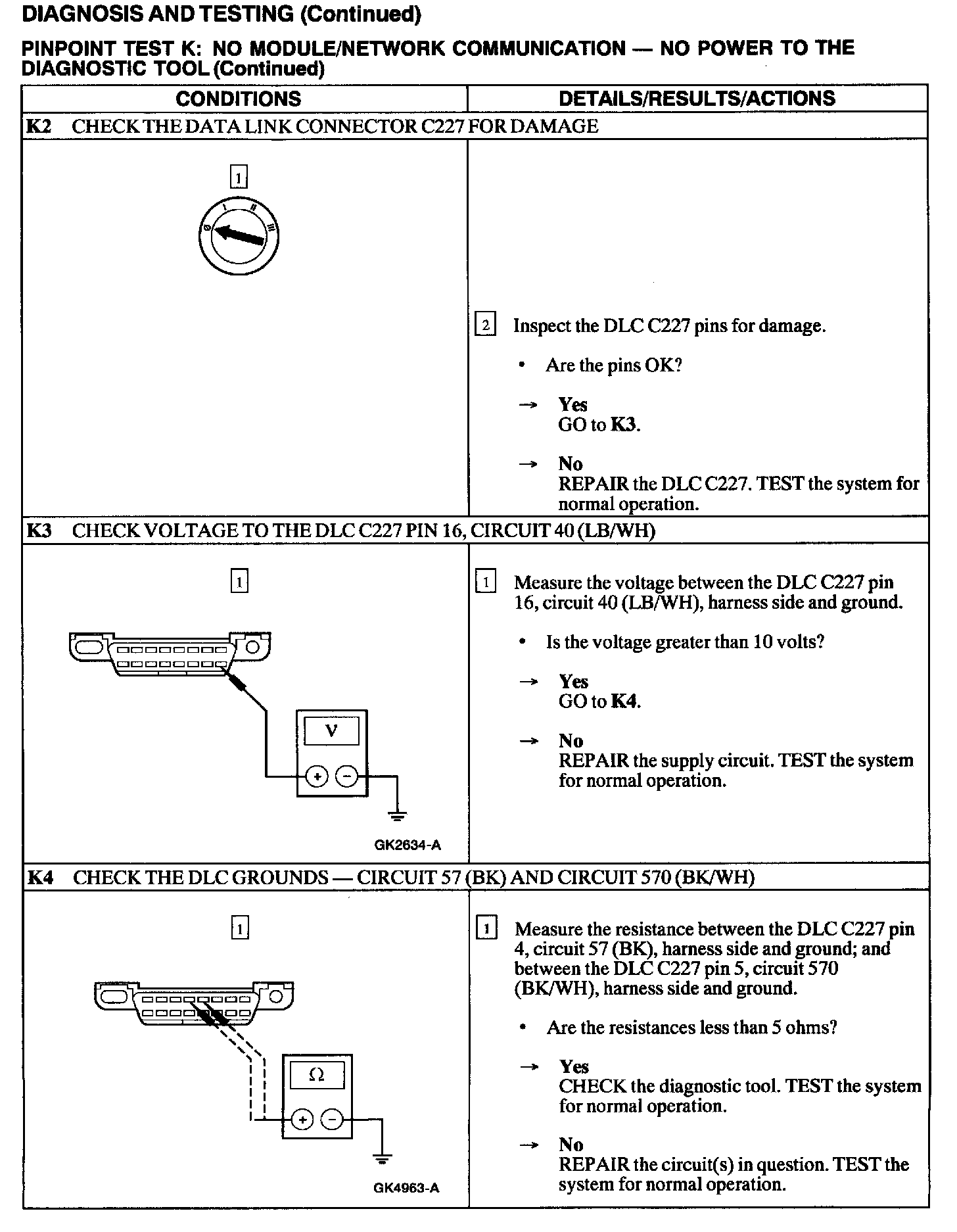

Test K: No Module/Network Communication

K1:



K2 - K4:
