Home >> Ford Truck >> 2000 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Exploded Views

Exploded Views

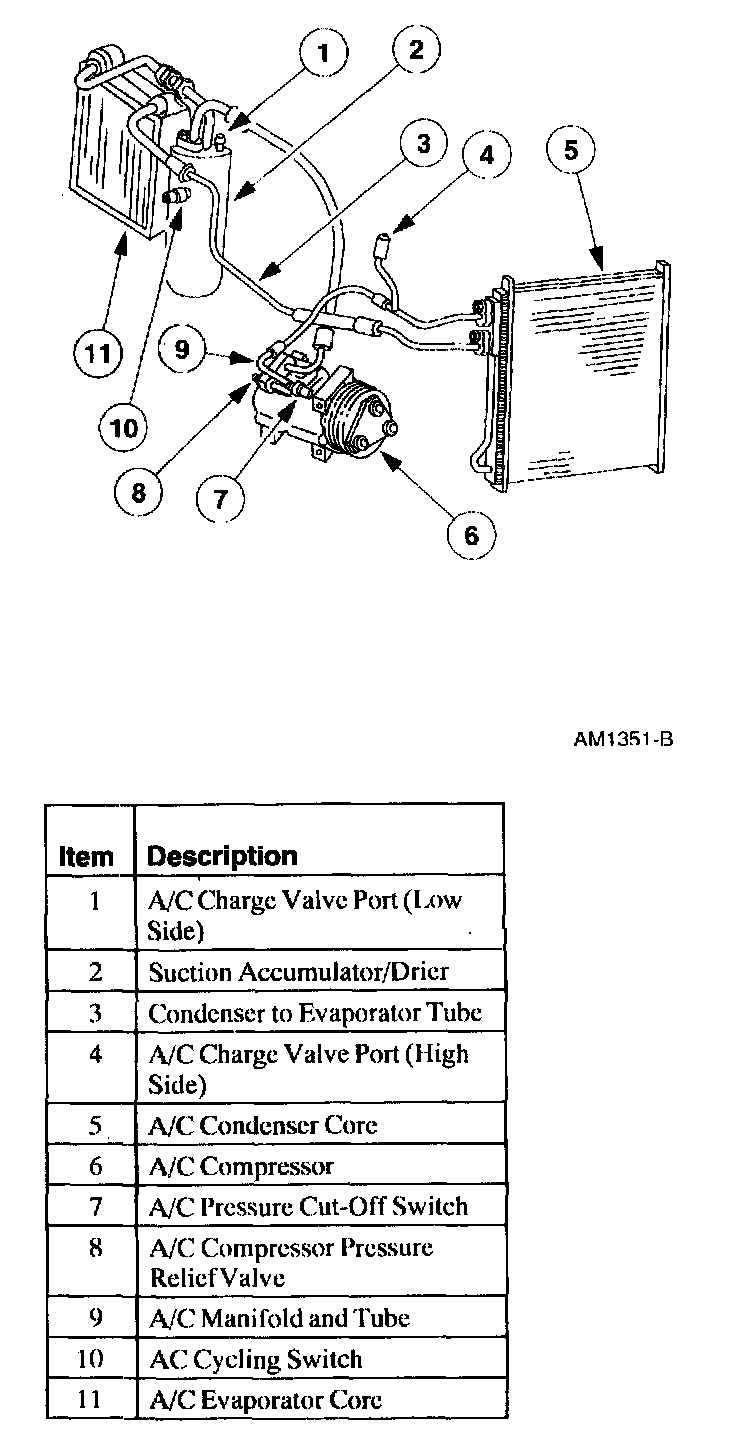

Refrigeration System Components - 5.4L And 6.8L (7.3L Diesel Similar):






Compressor Clutch Components:






Spring Lock Coupling:






Service Gauge Port Valve:

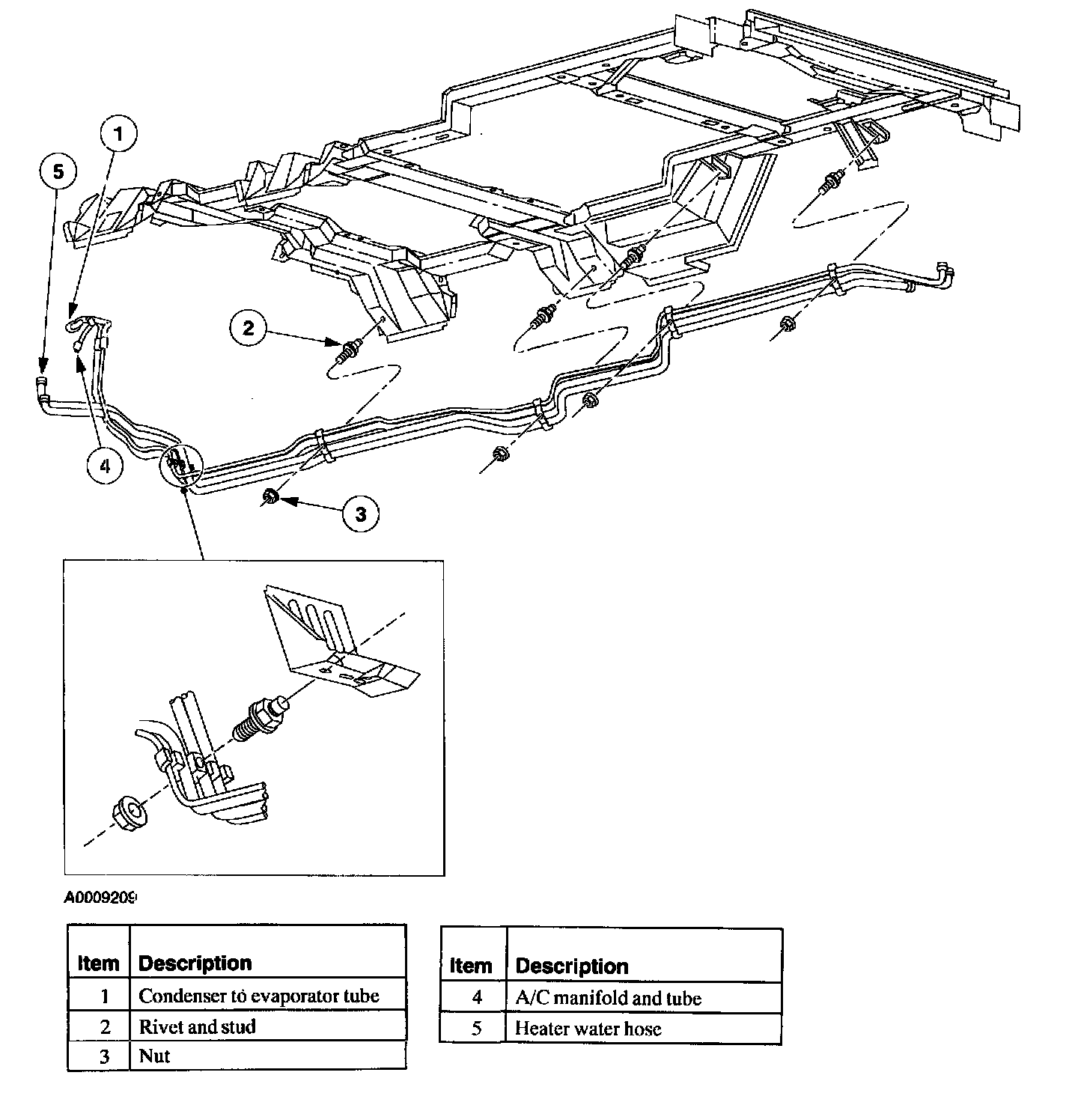

A/C and Heater Lines:
