Home >> Ford Truck >> 2000 >> Excursion 2WD V10-6.8L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> Power Steering

Power Steering

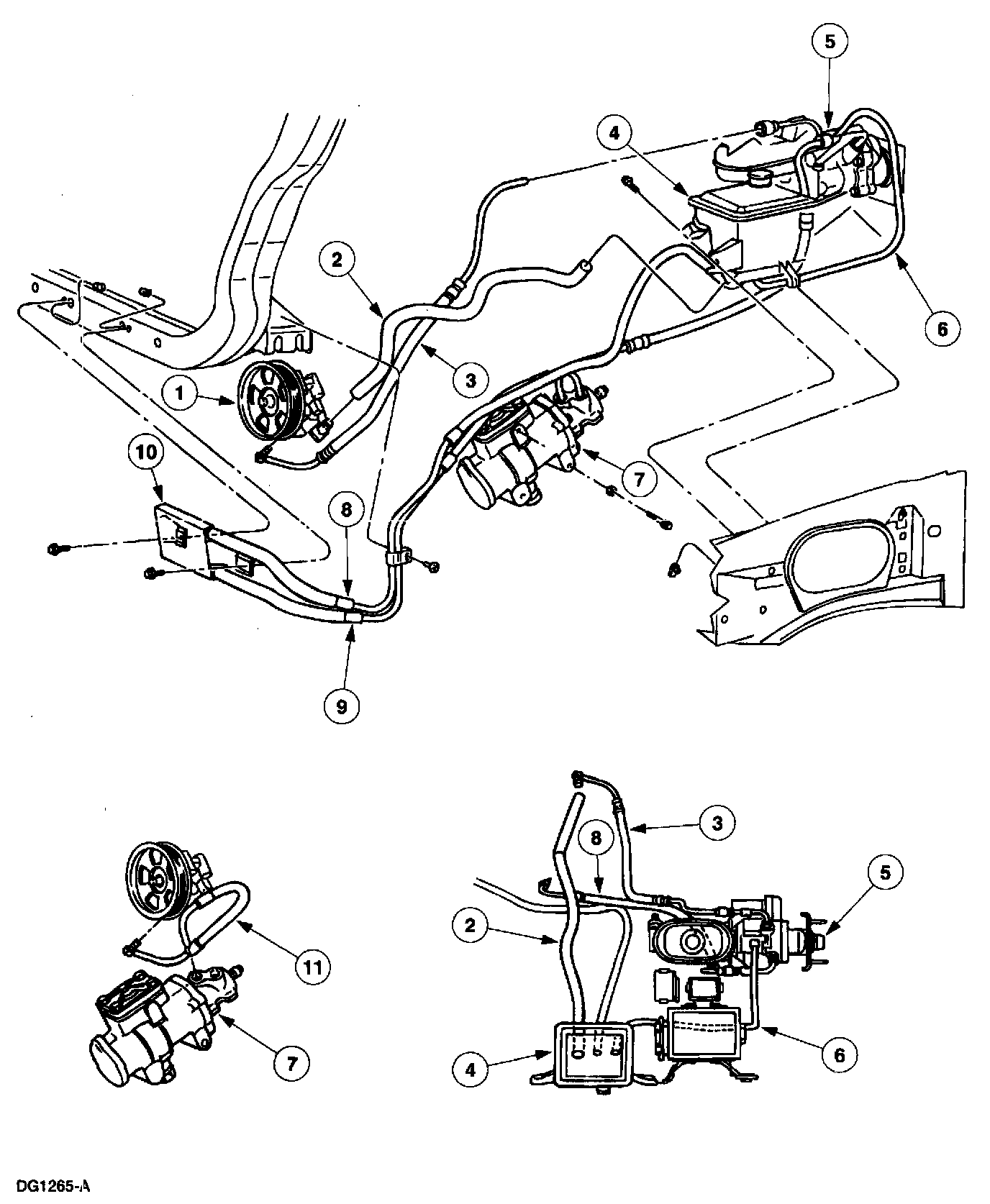

Steering System-With 5.4L Or 6.8L Engine

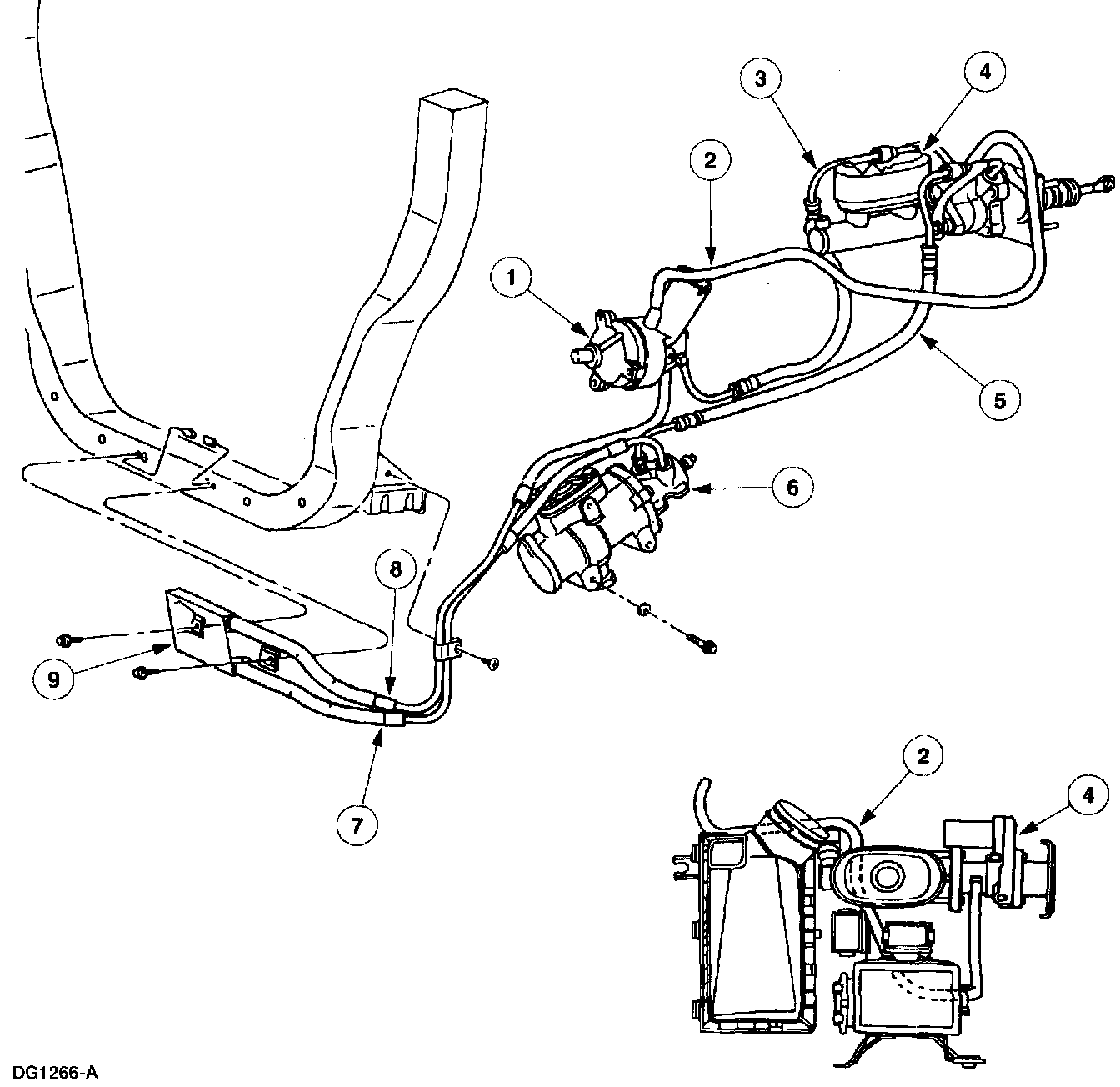

Steering System-with 7.3L Engine
