Main Relay (Computer/Fuel System): Locations

Engine View:

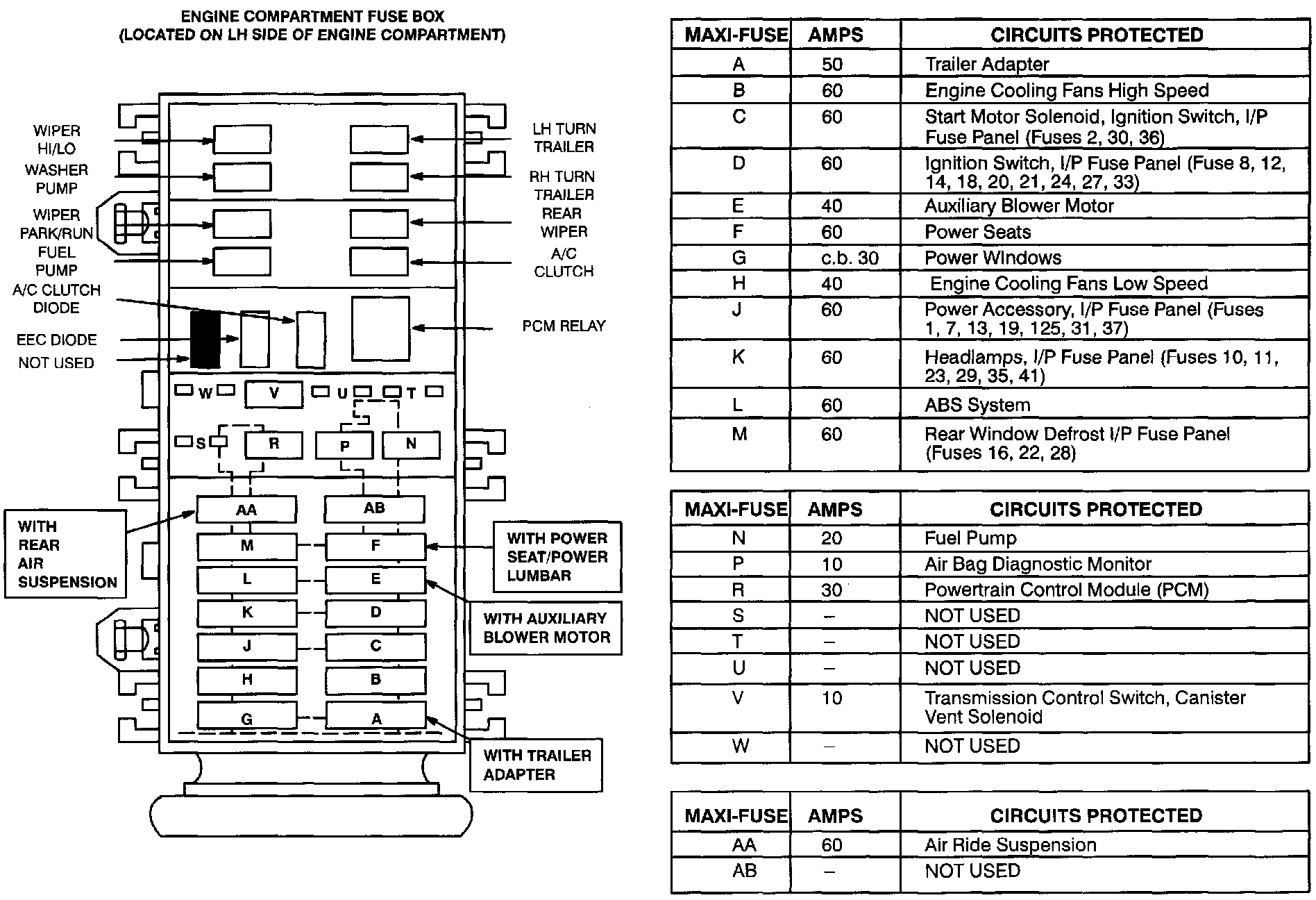

Engine Compartment Fuse Box:





The PCM Power Relay is located in engine compartment fuse box.
