Engine Control Module: Locations

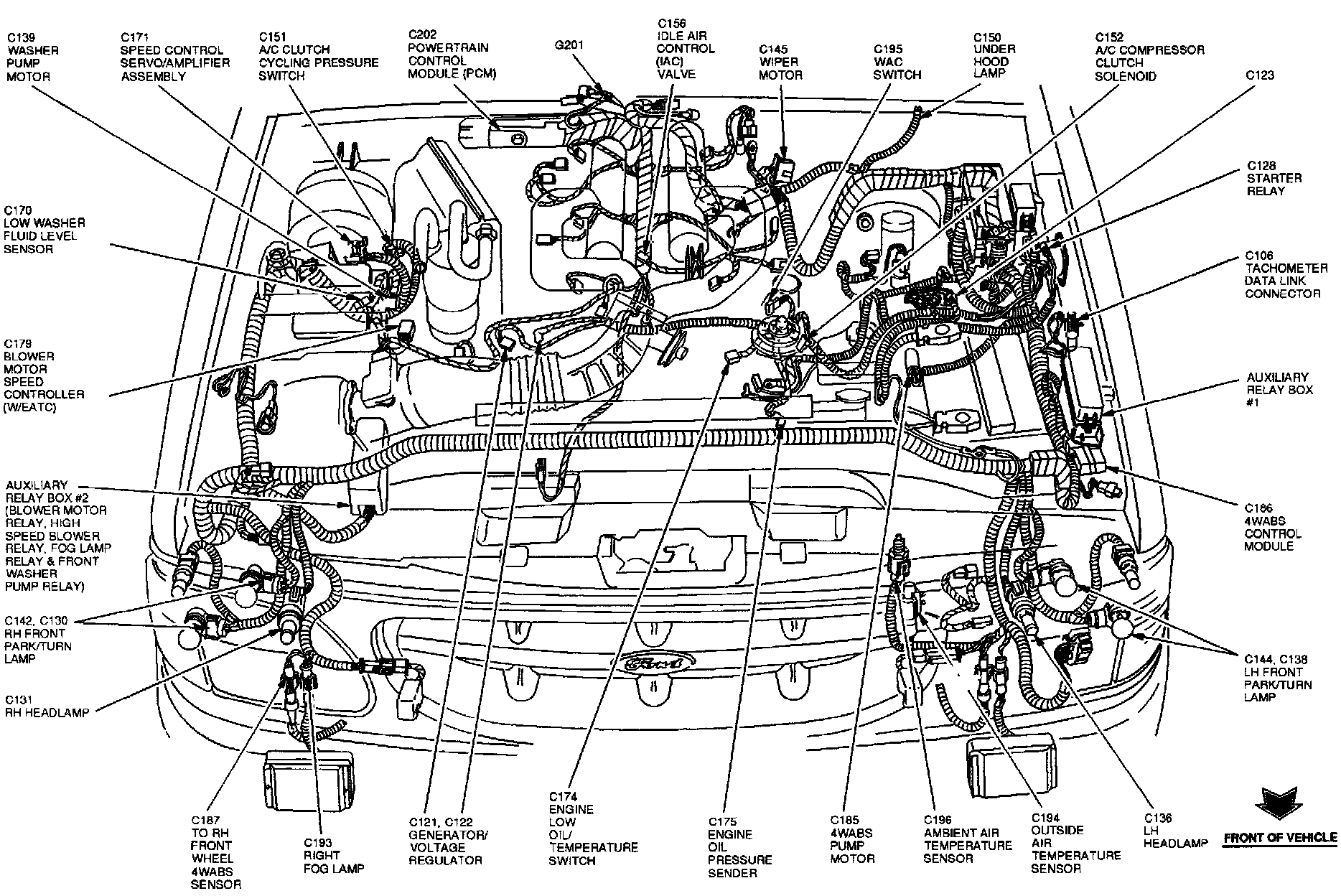

Engine View:





The Powertrain Control Module is mounted through cowl panel.
