Home >> Ford Truck >> 1997 >> Windstar V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations

Keyless Entry Module: Locations

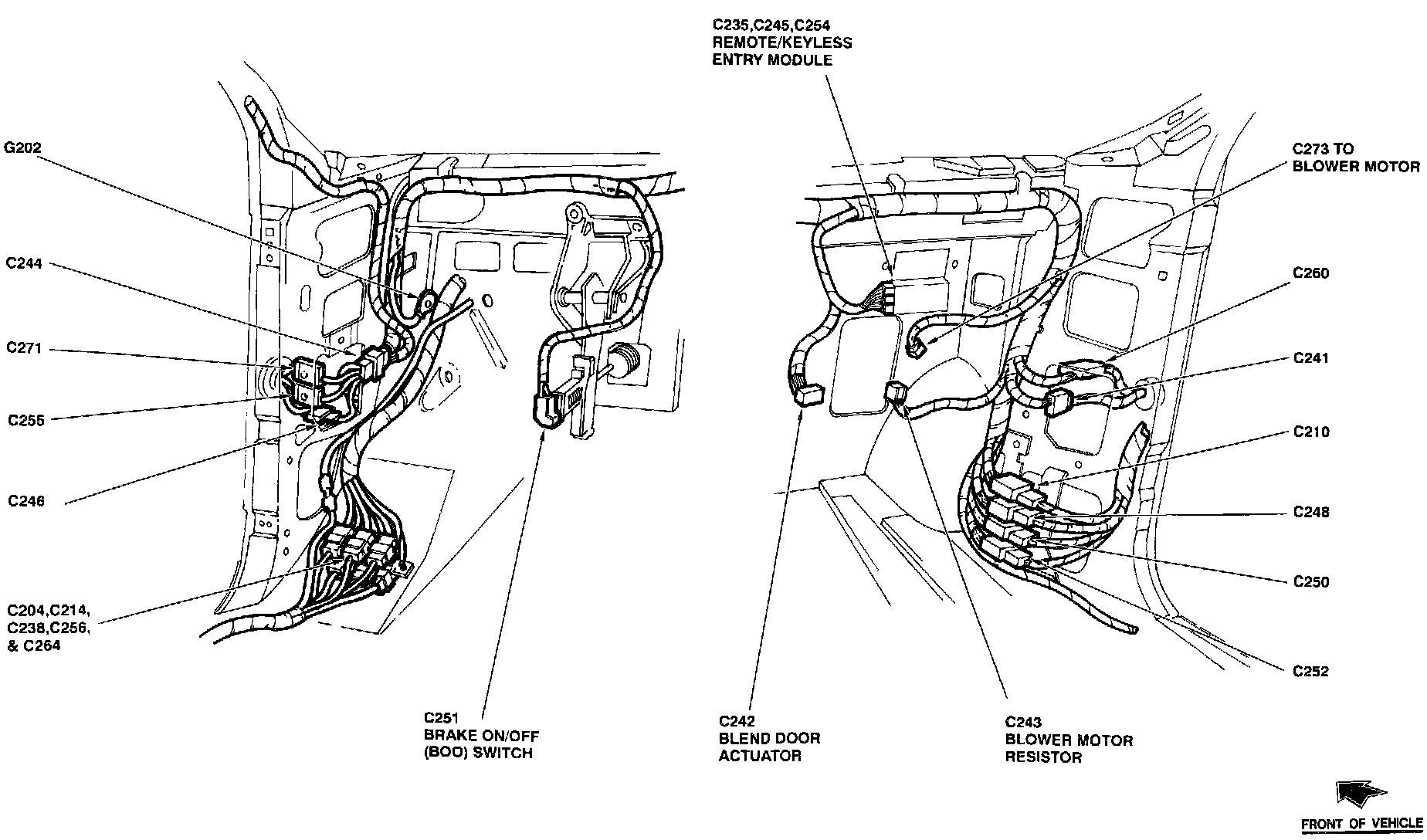

LH & RH Cowls View:






The Remote/Keyless Entry Module is located behind RH side of instrument panel.
