Home >> Ford Truck >> 1994 >> F 250 2WD Pickup V8-7.3L DSL >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master Window Control Switch >> Without Remote/Keyless Entry

Without Remote/Keyless Entry

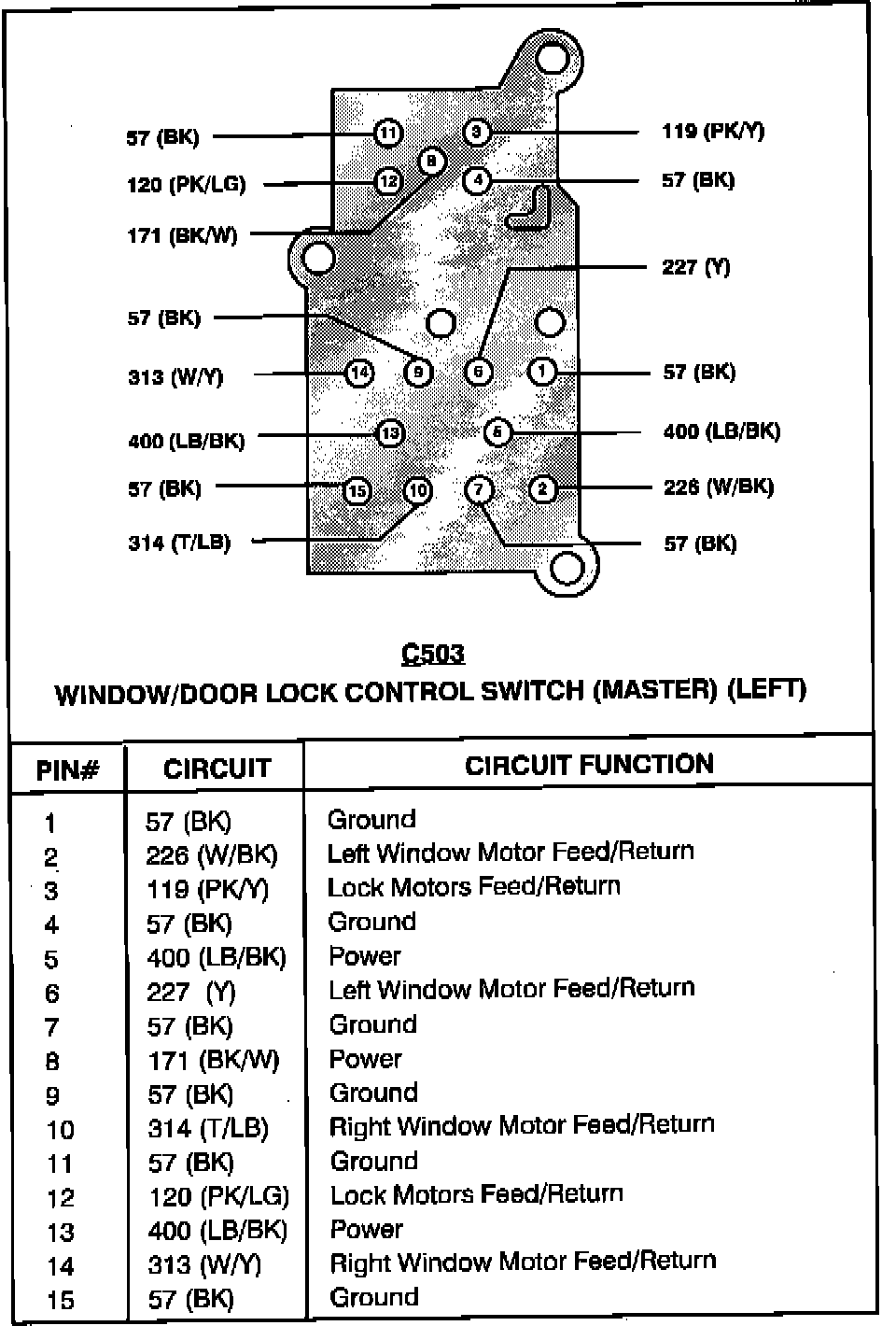

Window/Door Lock Control Switch (Master/Left):
