Engine Speed Sensor: Locations

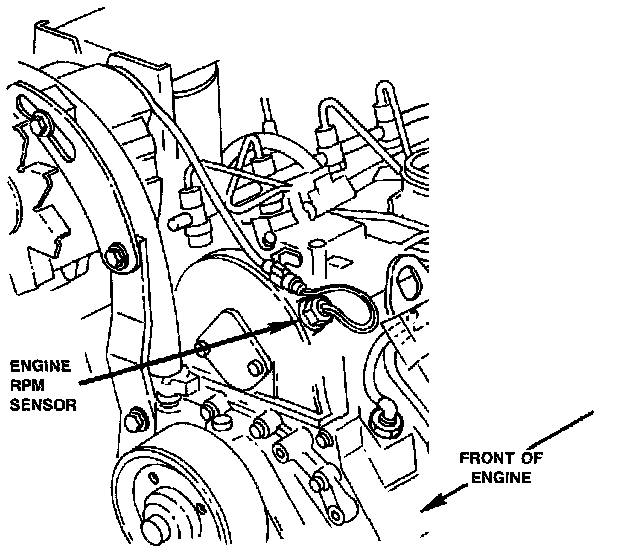

The Engine RPM Sensor is located on injection pump timing gear cover.
