Home >> Ford Truck >> 1987 >> Aerostar L4-140 2.3L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

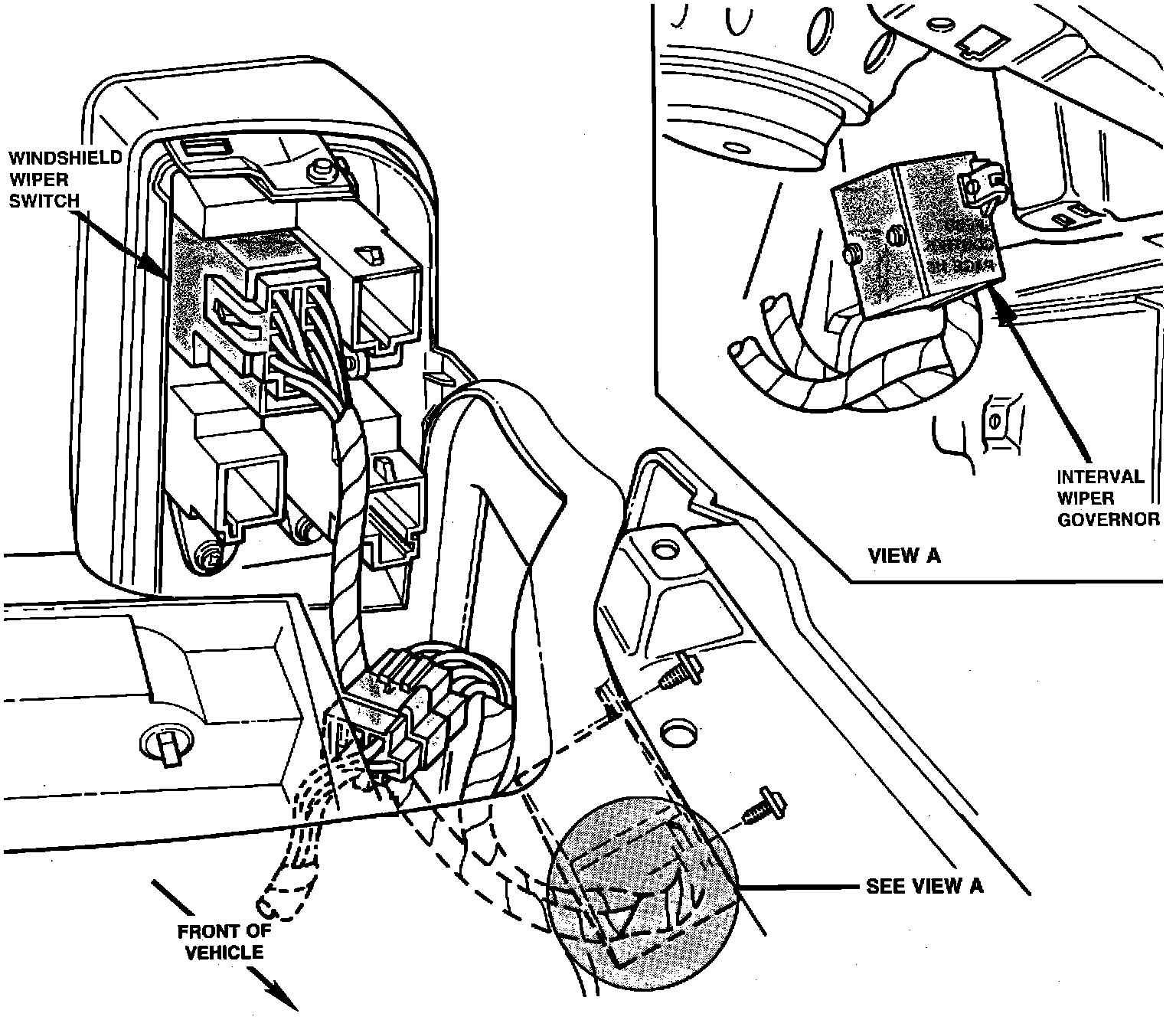

Behind Left Side Of Dash:






The interval wiper governor is under the left side of instrument panel.
