Home >> Ford Truck >> 1982 >> Courier L4-1970cc 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Distributor, Ignition

Distributor, Ignition

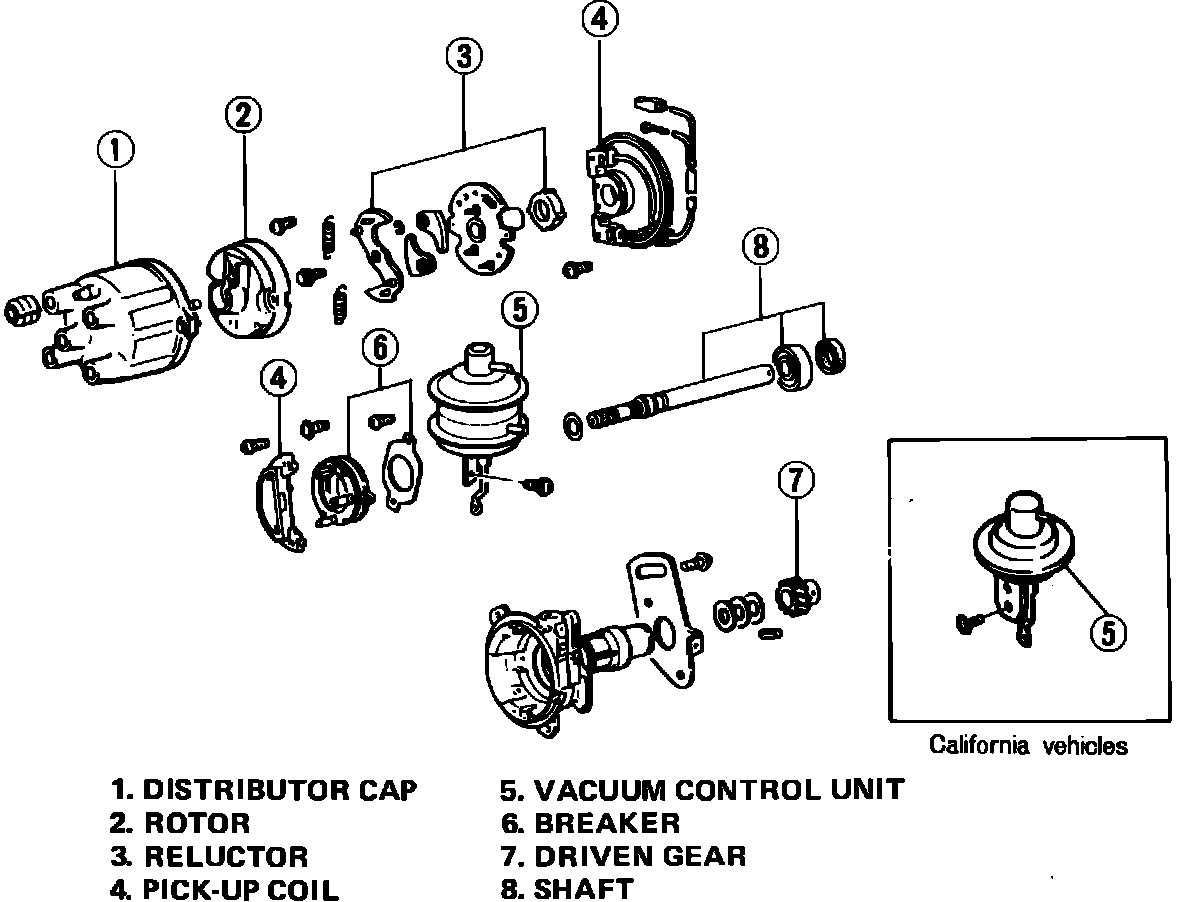

Fig. 2 Disassembled View Of Breakerless Type Distributor. Non-turbocharged:
