Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-7A Checking the Idle Air Control Motor

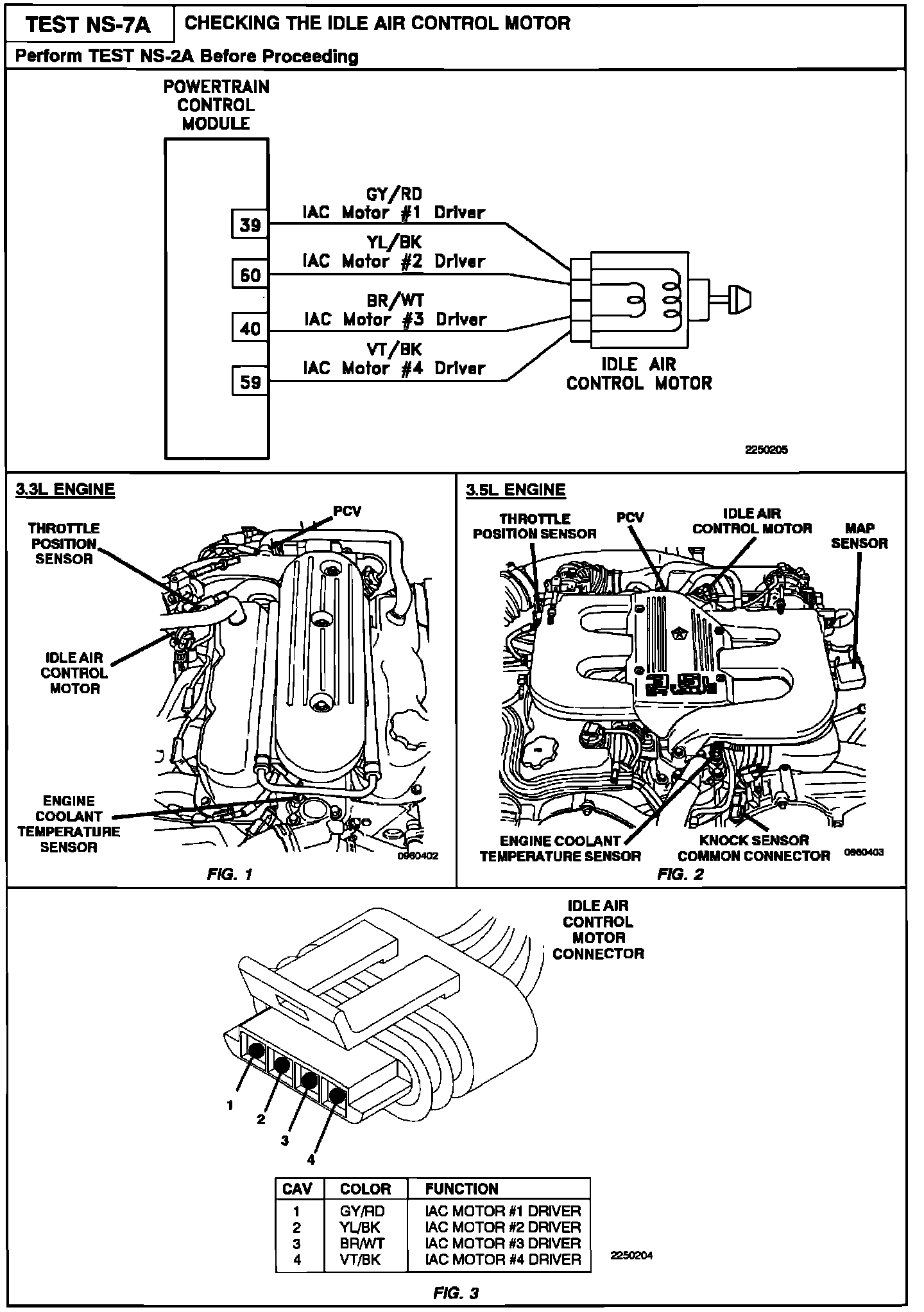

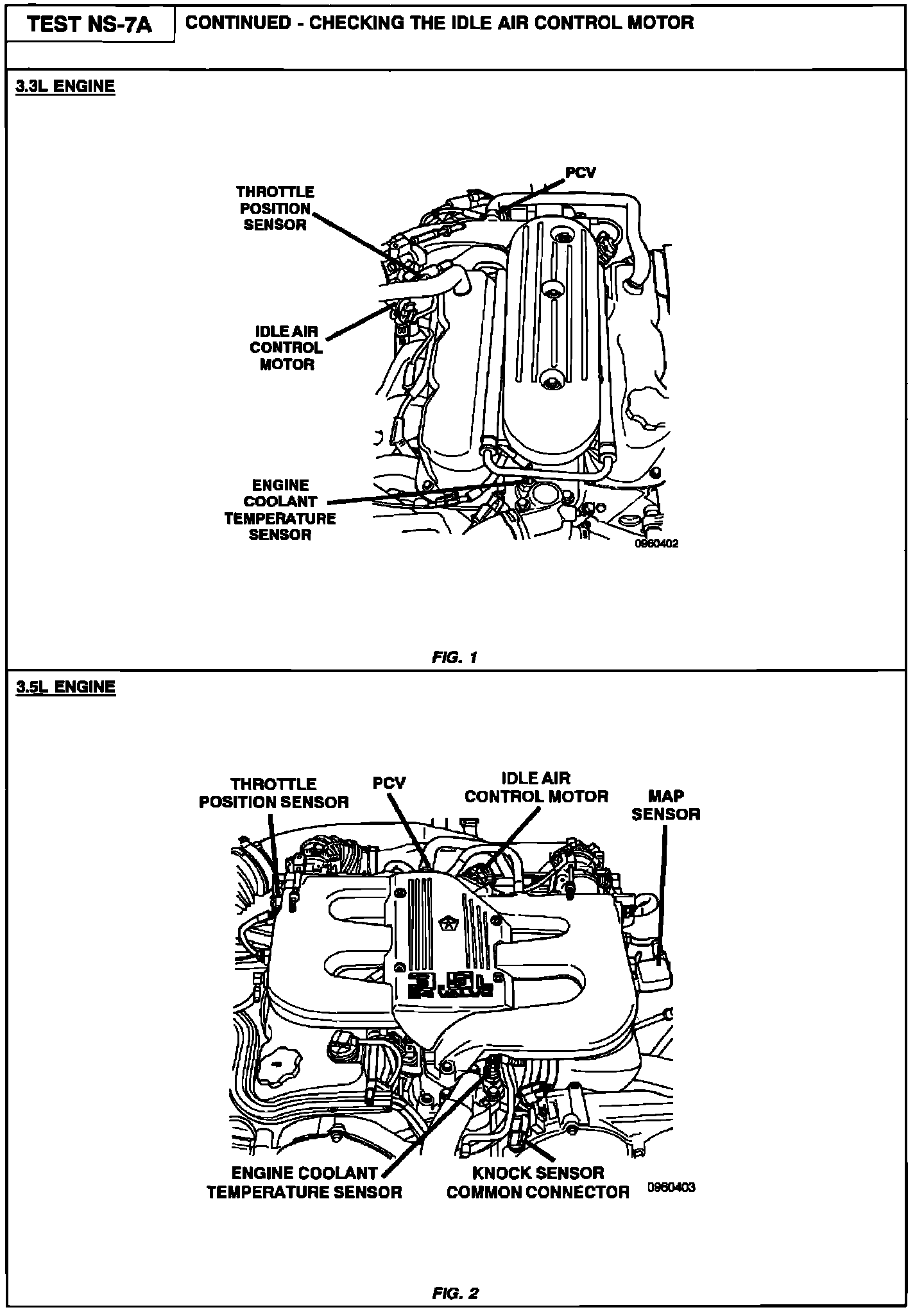

NS-7A Checking the Idle Air Control Motor

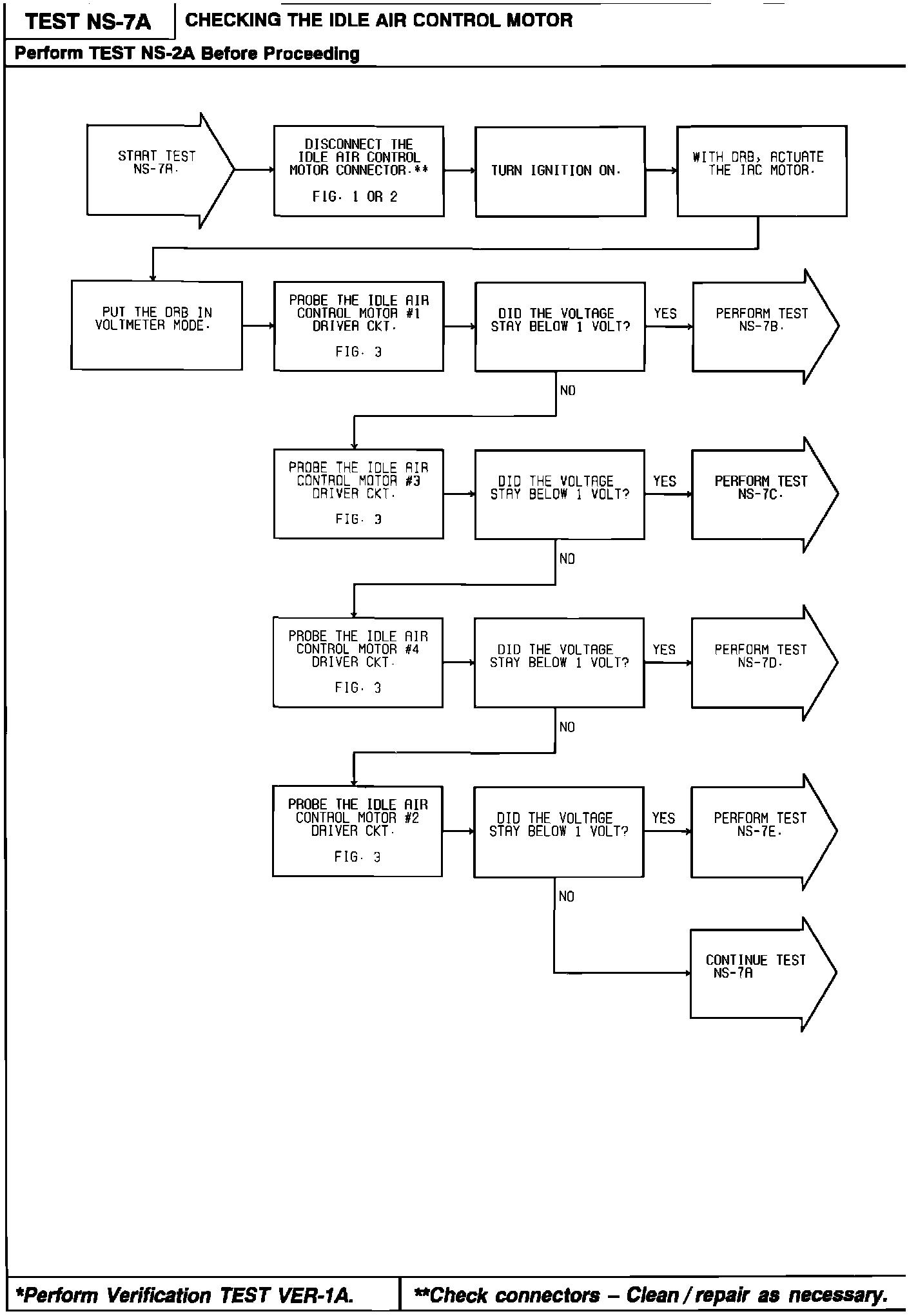

Part 1 Of 2:



Part 1 Of 2:

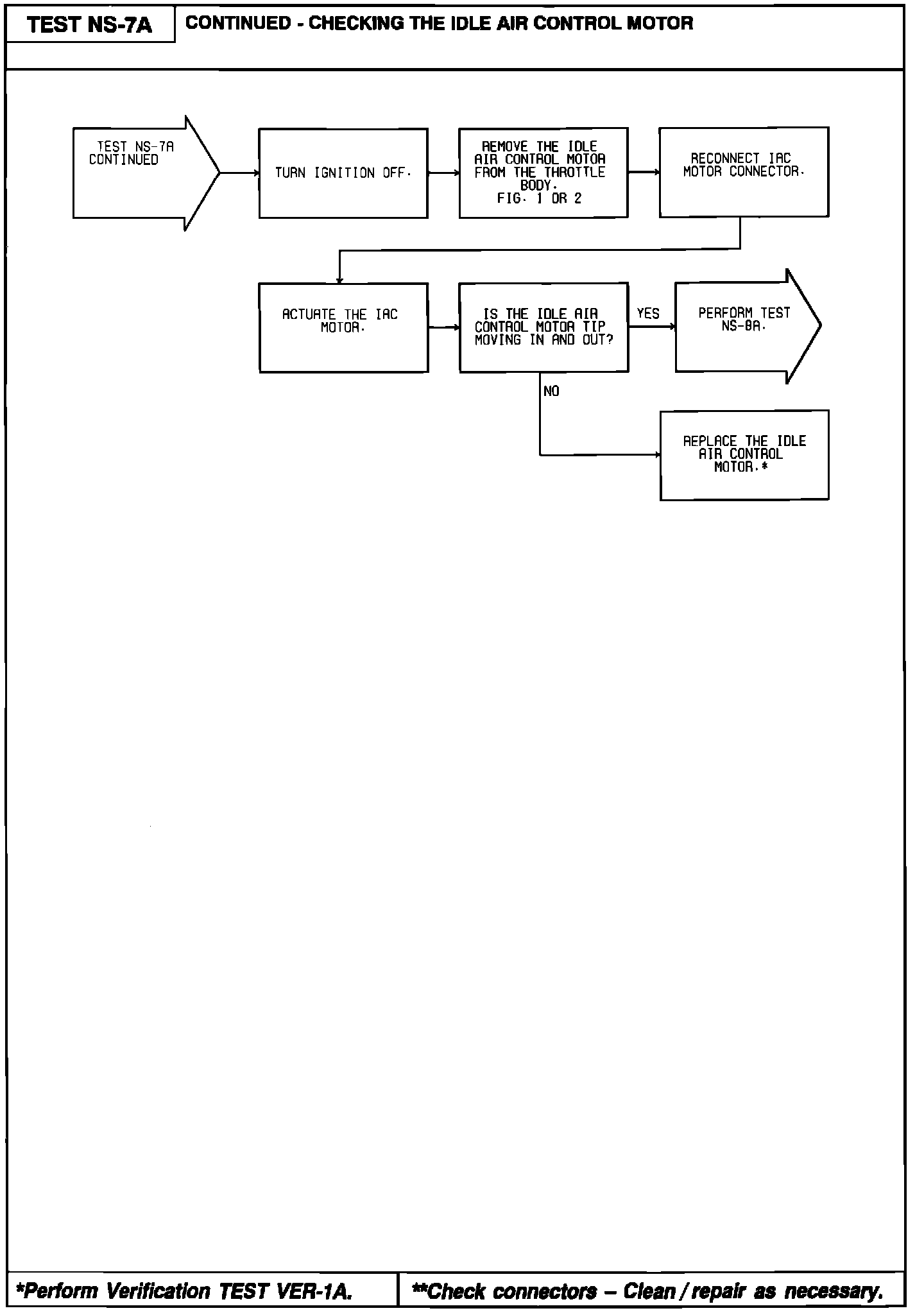

Part 2 Of 2:



Part 2 Of 2:
