Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-6B Repairing A "No Response" Condition

NS-6B Repairing A "No Response" Condition

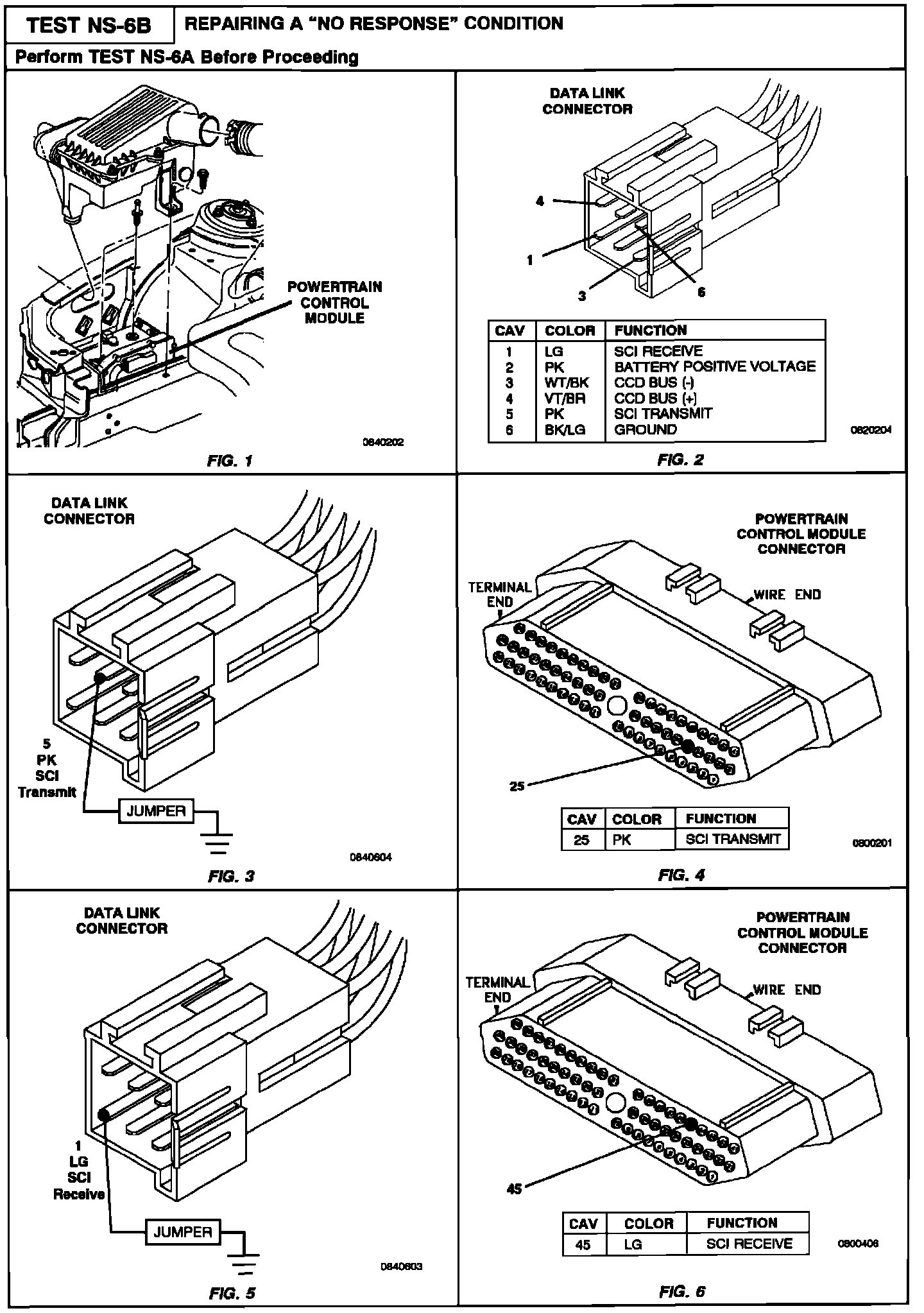

Part 1 Of 2:



Part 1 Of 2:

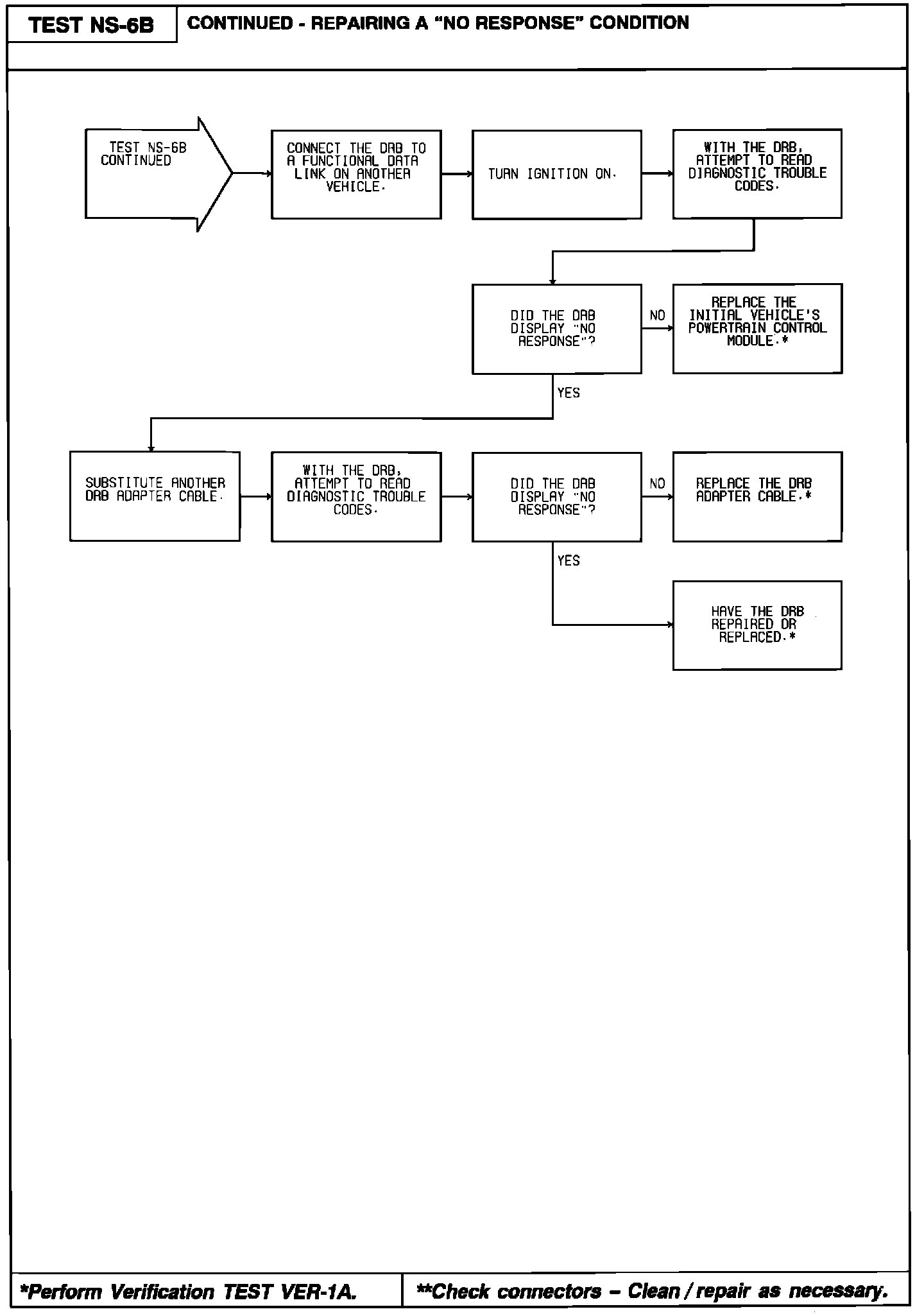

Part 2 Of 2:
